ADF Cost Intelligence

Ask your AI assistant which ADF pipeline is bleeding your Azure budget, and exactly why.

An enterprise FinOps intelligence system for Azure Data Factory, exposed via the Model Context Protocol (MCP). Converts raw ADF consumption metrics (DIU-hours, vCore-hours, activity runs) into dollar estimates, detects waste, identifies cost spikes, and recommends specific fixes with quantified savings. Pricing is fetched live from the Azure Retail Prices API, not hardcoded constants.

Works with Claude Desktop, Claude Code, GitHub Copilot, Cursor, Windsurf, or any MCP-compatible client.

---

What You Can Ask

Which ADF pipeline cost the most this month?

Why did my ADF bill spike last week?

Are any of my pipelines running wastefully?

Give me your top recommendations to cut my ADF spend.

Break down the cost of my IngestSalesData pipeline.

Example response:

Your top 3 most expensive pipelines this month:

1. IngestSalesData - $142.30 (driver: DIU hours from Copy Activity)
2. TransformCustomerData - $87.50 (driver: Data Flow vCore hours)
3. LoadDailyReports - $34.20 - running hourly with zero rows processed

Recommendation: Switch LoadDailyReports to an event-based trigger. Estimated saving: $34.20/month ($410/year).

---

The 5 Tools

Tool	What it does
get_top_costly_pipelines	Ranks all pipelines by estimated monthly cost with trend vs prior period
get_pipeline_cost_breakdown	Itemised cost by activity type for a specific pipeline
get_wasteful_pipelines	Flags zero-row runs, inactive pipelines, and debug runs in production
get_cost_spike_analysis	Compares current vs prior period, explains sudden cost increases
get_optimization_recommendations	7-rule engine with specific fixes and estimated annual savings

---

Get Started in 5 Minutes

New user? Follow this path:

Step 1 - Clone and install         (~1 min)
Step 2 - Try with mock data        (~1 min)   no Azure needed
Step 3 - Connect your Azure ADF    (~10 min)  one-time setup
Step 4 - Add to your MCP client    (~2 min)

Jump to Quick Start below for the full steps.

Already have Python and an ADF instance? The shortest path to real data:

git clone https://github.com/harinarayn/adf-cost-intelligence-mcp
cd adf-cost-intelligence-mcp
pip install -r requirements.txt

# Create a service principal (one-time)
az ad sp create-for-rbac --name adf-cost-mcp-sp --role Reader \
  --scopes /subscriptions/{YOUR_SUB_ID}

# Grant it ADF read access (one-time)
az role assignment create --assignee {APP_ID} \
  --role "Data Factory Contributor" \
  --scope /subscriptions/{SUB}/resourceGroups/{RG}/providers/Microsoft.DataFactory/factories/{ADF}

# Configure credentials
cp .env.example .env
# Edit .env with your values

# Add to your MCP client config (see Connect Your MCP Client below)
# Then ask: "Which ADF pipeline cost the most this month?"

---

Security and Privacy

This server runs entirely in your own environment. No data ever leaves your infrastructure.

• Runs locally or in your own cloud, not our servers
• Only reads ADF run metadata (pipeline names, durations, status, DIU counts) - never your pipeline data or business content
• Service principal needs read-only access (see setup below)
• No telemetry, no callbacks, no third-party dependencies except the public Azure Retail Prices API (unauthenticated, read-only pricing data)
• Fully open source - every line of code is auditable

See SECURITY.md for the full security posture.

---

Prerequisites

Requirement	How to Check
Python 3.11+	python --version
Azure subscription	With at least one ADF instance
ADF run history	At least 7 days of pipeline runs for meaningful results
MCP-compatible client	Claude Desktop, Copilot, Cursor, Windsurf, or any MCP client

---

Quick Start

Step 1 - Clone and install

git clone https://github.com/harinarayn/adf-cost-intelligence-mcp
cd adf-cost-intelligence-mcp
pip install -r requirements.txt
cp .env.example .env

Step 2 - Try it immediately with mock data (no Azure needed)

USE_MOCK_DATA=true python server.py

Open your MCP client and ask: "Which ADF pipeline cost the most this month?"

You'll see responses using realistic synthetic data covering 10 mock pipelines, including wasteful runs, cost spikes, and inactive pipelines.

Step 3 - Connect your real Azure ADF (~10 minutes, one-time)

3a. Login and find your subscription ID

az login
az account show --query id -o tsv

3b. Create a service principal with minimal permissions

az ad sp create-for-rbac \
  --name adf-cost-mcp-sp \
  --role Reader \
  --scopes /subscriptions/{YOUR_SUBSCRIPTION_ID}
# Save the output - you need: appId, password, tenant

3c. Grant read access to your ADF instance

az role assignment create \
  --assignee {APP_ID_FROM_ABOVE} \
  --role "Data Factory Contributor" \
  --scope /subscriptions/{SUB_ID}/resourceGroups/{RG}/providers/Microsoft.DataFactory/factories/{ADF_NAME}

Minimum permissions: The service principal only needs to read pipeline runs and activity runs. Data Factory Contributor is the closest built-in role. For tighter security, create a custom role with Microsoft.DataFactory/factories/read, Microsoft.DataFactory/factories/pipelineruns/read, and Microsoft.DataFactory/factories/activityruns/read.

3d. Enable per-pipeline billing in ADF (important)

1. Open ADF Studio
2. Go to Manage > Factory Settings
3. Set Billing by pipeline to ON and save

Without this, cost data is at factory level only, not per-pipeline.

Step 4 - Configure .env

AZURE_TENANT_ID=paste-from-step-3b
AZURE_CLIENT_ID=paste-appId-from-step-3b
AZURE_CLIENT_SECRET=paste-password-from-step-3b
AZURE_SUBSCRIPTION_ID=paste-from-step-3a
AZURE_RESOURCE_GROUP=your-resource-group-name
AZURE_DATA_FACTORY_NAME=your-adf-factory-name
USE_MOCK_DATA=false

---

Connect Your MCP Client

Claude Desktop

Mac/Linux: ~/.claude/claude_desktop_config.json Windows: %APPDATA%\Claude\claude_desktop_config.json

{
  "mcpServers": {
    "adf-cost-intelligence": {
      "command": "python",
      "args": ["/absolute/path/to/adf-cost-intelligence-mcp/server.py"],
      "env": {
        "AZURE_TENANT_ID": "your-tenant-id",
        "AZURE_CLIENT_ID": "your-app-id",
        "AZURE_CLIENT_SECRET": "your-secret",
        "AZURE_SUBSCRIPTION_ID": "your-subscription-id",
        "AZURE_RESOURCE_GROUP": "your-resource-group",
        "AZURE_DATA_FACTORY_NAME": "your-adf-name",
        "USE_MOCK_DATA": "false"
      }
    }
  }
}

Restart Claude Desktop. The tools appear automatically.

Claude Code (CLI)

claude mcp add adf-cost-intelligence python /path/to/server.py

Or add a .mcp.json to your project root (safe to commit, uses env var references):

{
  "servers": {
    "adf-cost-intelligence": {
      "type": "stdio",
      "command": "python",
      "args": ["server.py"],
      "env": {
        "AZURE_TENANT_ID": "${AZURE_TENANT_ID}",
        "AZURE_CLIENT_ID": "${AZURE_CLIENT_ID}",
        "AZURE_CLIENT_SECRET": "${AZURE_CLIENT_SECRET}",
        "AZURE_SUBSCRIPTION_ID": "${AZURE_SUBSCRIPTION_ID}",
        "AZURE_RESOURCE_GROUP": "${AZURE_RESOURCE_GROUP}",
        "AZURE_DATA_FACTORY_NAME": "${AZURE_DATA_FACTORY_NAME}",
        "USE_MOCK_DATA": "false"
      }
    }
  }
}

GitHub Copilot (VS Code)

Add to .vscode/mcp.json in your workspace:

{
  "servers": {
    "adf-cost-intelligence": {
      "type": "stdio",
      "command": "python",
      "args": ["/absolute/path/to/server.py"],
      "env": {
        "AZURE_TENANT_ID": "${env:AZURE_TENANT_ID}",
        "AZURE_CLIENT_ID": "${env:AZURE_CLIENT_ID}",
        "AZURE_CLIENT_SECRET": "${env:AZURE_CLIENT_SECRET}",
        "AZURE_SUBSCRIPTION_ID": "${env:AZURE_SUBSCRIPTION_ID}",
        "AZURE_RESOURCE_GROUP": "${env:AZURE_RESOURCE_GROUP}",
        "AZURE_DATA_FACTORY_NAME": "${env:AZURE_DATA_FACTORY_NAME}",
        "USE_MOCK_DATA": "false"
      }
    }
  }
}

Cursor / Windsurf

Both support MCP via ~/.cursor/mcp.json or ~/.windsurf/mcp.json using the same format as the Claude Desktop config above.

MCP Inspector (for testing and demos)

npx @modelcontextprotocol/inspector python server.py

Opens a browser UI to call each tool individually and inspect raw JSON responses. Useful for testing your setup or running demos.

---

Testing with MCP Inspector

MCP Inspector lets you call each tool directly in a browser UI and inspect the raw JSON responses, with no AI client needed. Great for testing your setup, debugging, or demos.

Launch (Windows)

scripts\inspect.cmd

This loads credentials from your .env file and opens the inspector automatically.

Launch (Mac/Linux)

source .env && npx @modelcontextprotocol/inspector python server.py

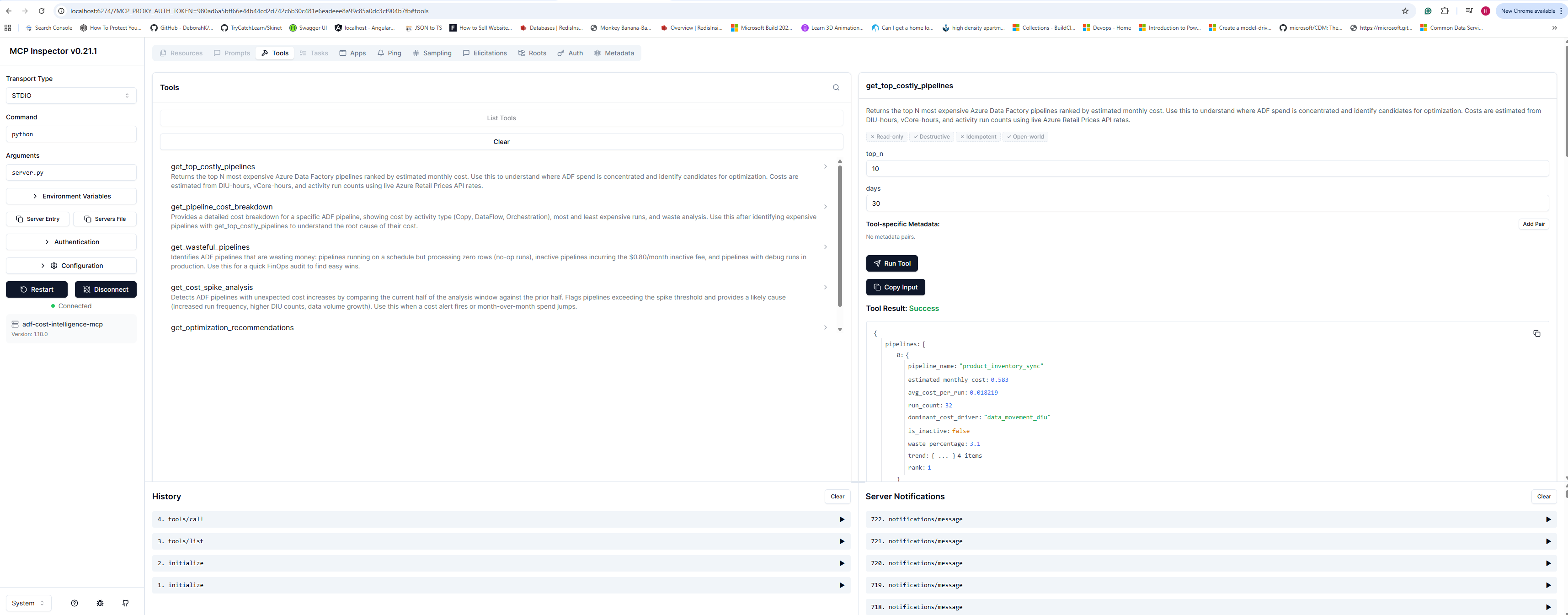

What you will see

1. Browser opens at http://localhost:6274
2. Green Connected indicator - server is live
3. Tools tab lists all 5 tools with their descriptions
4. Click any tool, enter arguments, hit Run Tool, and see the exact JSON your AI client receives

Example - test the cost ranking tool

Click get_top_costly_pipelines, enter:

{ "days": 30, "top_n": 8 }

Hit Run Tool. You will see your real ADF pipelines ranked by estimated monthly cost with waste percentages and trend data.

---

Running Tests

# All tests - no Azure credentials required (uses mock data)
USE_MOCK_DATA=true python -m pytest tests/ -v

# Specific modules
python -m pytest tests/test_cost_calculator.py -v
python -m pytest tests/test_pricing_client.py -v
python -m pytest tests/test_recommendations.py -v
python -m pytest tests/test_tools.py -v

---

How Costs Are Calculated

Costs are estimated from ADF activity run metadata using the same billing model as Azure:

Activity Type	Billing Model
Copy (Azure IR)	DIU-hours x $0.25/DIU-hour (4-min minimum per run)
Copy (Self-hosted IR)	DIU-hours x $0.10/DIU-hour
Mapping Data Flow	vCore-hours x rate by compute type (1-min minimum)
Pipeline / Lookup / ForEach	Activity execution hours x $0.005/hour
External (Databricks, etc.)	Activity execution hours x $0.00025/hour
Inactive pipeline	$0.80/month flat fee

When available, actual billed DIU-hours are read directly from billingReference in ADF activity output, not estimated from duration. Live pricing is fetched from the Azure Retail Prices API at startup and cached for 24 hours.

---

Optimization Rules

The recommendations engine applies 7 rules across your pipeline history:

#	Condition	Fix	Typical Saving
1	Schedule trigger + >20% zero-row runs	Switch to event-based trigger	20-80% of wasteful run cost
2	Copy DIU count > 4, data < 100 MB	Reduce maxDataIntegrationUnits	40% of DIU cost
3	ForEach sequential=true, items > 10	Enable parallelism (isSequential=false)	30% of pipeline duration
4	DataFlow without IR cluster TTL	Set Time-to-Live on Integration Runtime	15% of DataFlow cost
5	Pipeline with zero runs in 30 days	Decommission (save $0.80/month each)	$9.60/pipeline/year
6	Daily full table load, large dataset	Implement watermark incremental load	70% of data movement cost
7	Debug runs in production factory	Enforce dev/test factory separation	~8% of monthly pipeline cost

---

How This Differs from azure-mcp and Azure Advisor

	azure-mcp (official)	Azure Advisor	This Tool
ADF pipeline run data	No	No	Yes - every run, 30-day history
Cost per pipeline	No	No	Yes - estimated to 4 decimal places
Waste detection	No	No	Yes - zero-row runs, inactive pipelines
Cost spike analysis	No	No	Yes - current vs prior period
Specific $ savings estimates	No	Generic	Yes - per recommendation
Works without Log Analytics	N/A	N/A	Yes - reads ADF APIs directly

azure-mcp gives your AI assistant a hammer. This gives it a scalpel.

---

Cost Disclaimer

Cost estimates are based on Azure PAYG pricing. Actual costs vary by Azure agreement type (Enterprise Agreement, CSP, PAYG), reserved capacity, region, and currency. Always cross-check significant decisions with Azure Cost Management for exact billing figures.

---

V2 Roadmap

• Remediation with code: Generate ADF JSON pipeline/trigger configs as fixes, not just advice
• Multi-factory support: Query across multiple ADF instances in one conversation
• Trend analysis: Week-over-week cost trending with anomaly detection
• Databricks integration: Include Databricks job cost as part of ADF external activity cost
• Budget alerts: Set thresholds and get proactive warnings
• Remote MCP (enterprise): Deploy as remote MCP server on Azure Container Apps with Managed Identity, no local credentials, full audit trail

---

Contributing

Contributions welcome. Key areas:

• Additional recommendation rules (open an issue to propose)
• New Azure regions in the pricing parser
• Synapse Analytics support
• Integration tests with real ADF instances

# Dev setup
pip install -r requirements.txt
USE_MOCK_DATA=true python -m pytest tests/ -v

License: MIT
