Houdini

MCP server that lets AI agents (Claude Code, Cursor, etc.) directly control SideFX Houdini — create nodes, set parameters, execute Python, capture viewports, render frames, and more.

Built on Model Context Protocol + RPyC. Supports multi-instance, instance pooling, and includes a WebUI dashboard.

Features

• 57 MCP tools covering scene, nodes, parameters, geometry, rendering, viewport, and more
• Multi-instance — run multiple Houdini sessions on different ports simultaneously
• Instance pooling — pre-warm idle Houdini instances, acquire on demand, skip the startup wait
• Health diagnostics — detect hung/busy/dead Houdini via Win32 API + RPyC ping (never hangs)
• WebUI dashboard — manage sessions, configuration, startup scripts, and tool toggles from a browser
• Auto-discovery — MCP server finds running Houdini instances automatically
• Non-destructive setup — startup hook is a single line in 456.py, fully reversible

Requirements

• Windows (Win32 APIs used for screen capture and process diagnostics)
• Python 3.11+
• SideFX Houdini 20.5+ (tested with 20.5 and 21.0)

Quick Start

1. Install

git clone https://github.com/OtakuSquirrel/houdini-mcp.git
cd houdini-mcp

# Option A: run install.bat (creates venv + installs everything)
install.bat

# Option B: manual
python -m venv .venv
.venv\Scripts\activate
pip install -e ".[webui]"

2. Configure your MCP client

Add to your Claude Code project settings (.claude/settings.local.json):

{
  "mcpServers": {
    "houdini": {
      "command": "D:/path/to/houdini-mcp/.venv/Scripts/python.exe",
      "args": ["-m", "houdini_mcp"],
      "cwd": "D:/path/to/houdini-mcp"
    }
  }
}

3. Start working

The first time an agent calls a Houdini tool, the MCP server will:

1. Auto-install the startup hook into your Houdini prefs (one-time, non-destructive)
2. Launch Houdini and wait for RPyC to be ready
3. Connect and start executing tool calls

No manual setup needed. Just ask your AI agent to do something in Houdini.

WebUI Dashboard

# Start the dashboard
Windows_webui.bat
# or manually:
.venv\Scripts\python.exe -m houdini_mcp.webui --port 9800

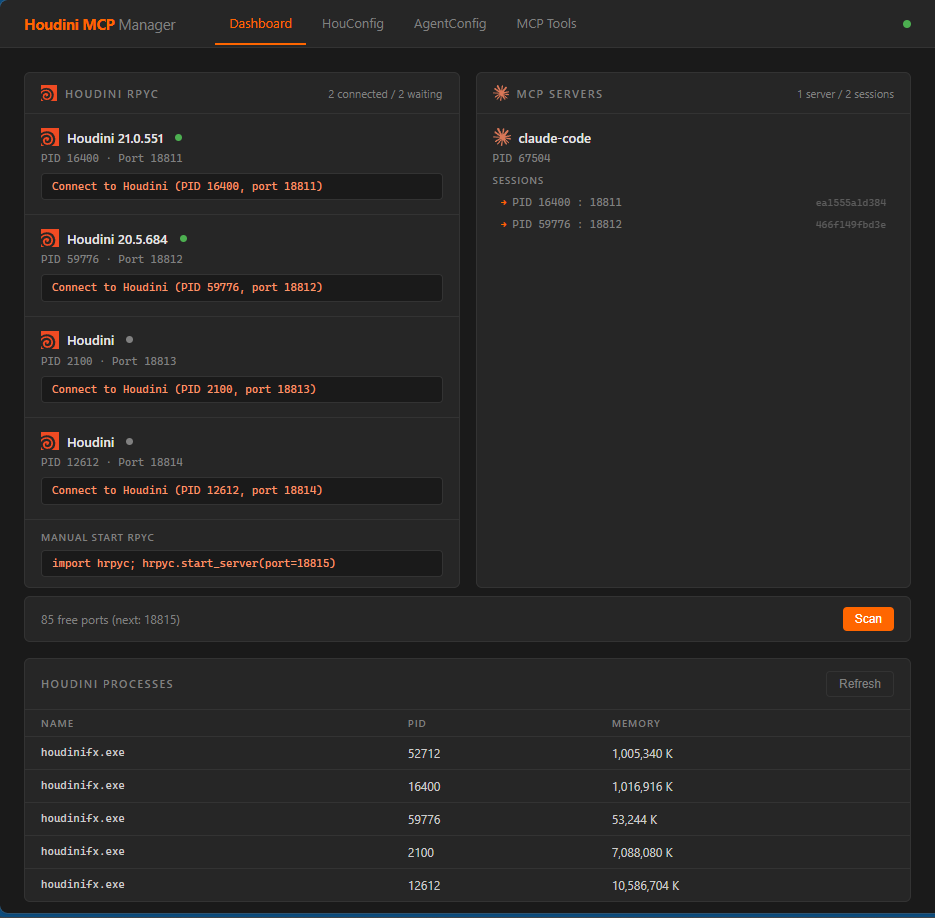

Dashboard — sessions, ports, processes at a glance

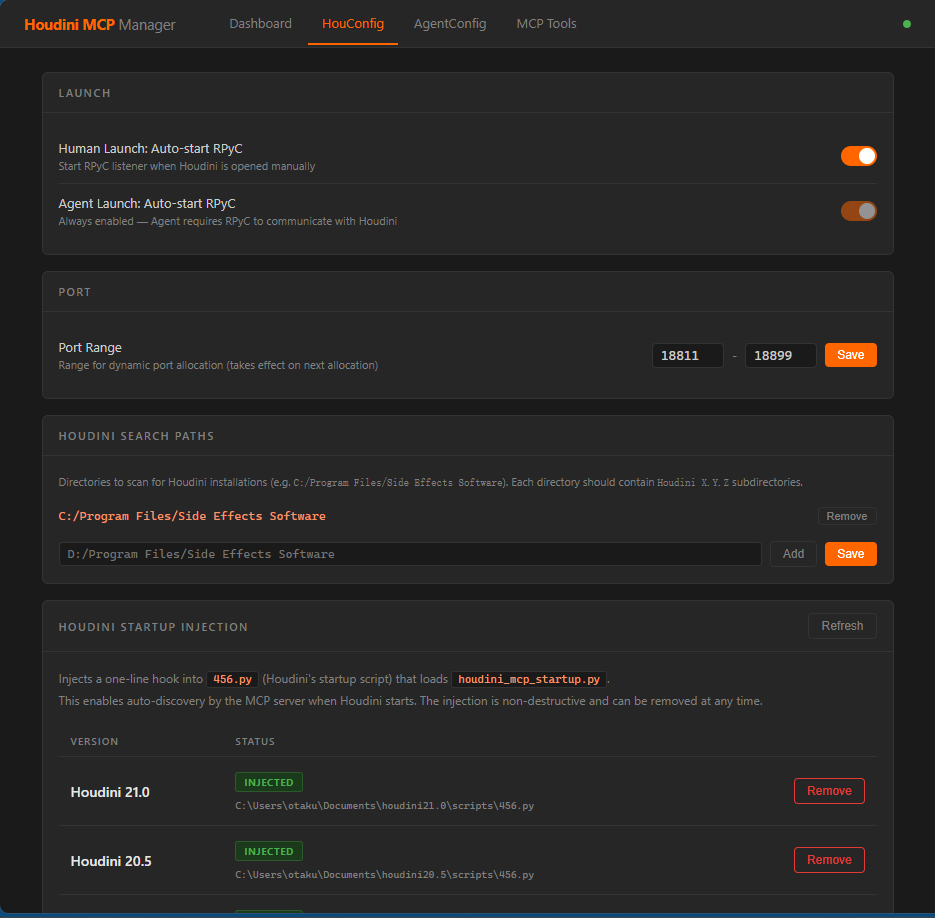

HouConfig — port range, search paths, startup hook injection

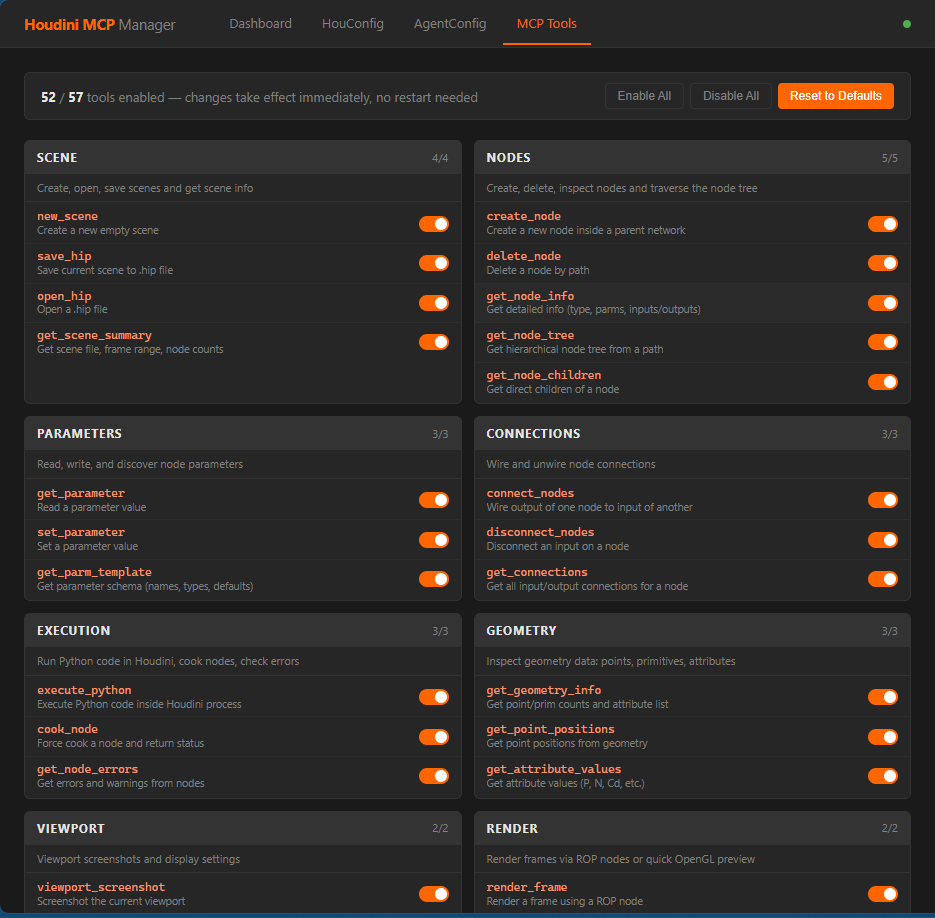

MCP Tools — enable/disable tools per category

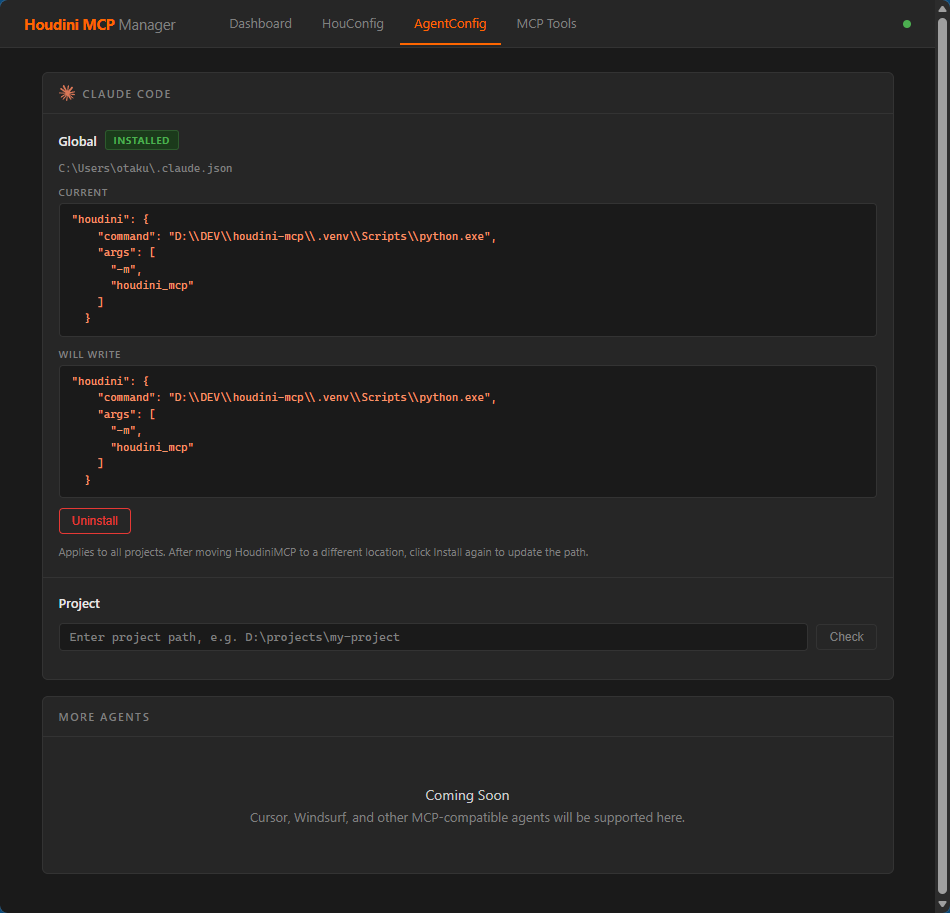

AgentConfig — generate MCP client config for Claude Code, Cursor, etc.

Instance Pooling

Houdini takes 11-37 seconds to start. The pool tools let you pre-warm instances:

warm_pool([{"count": 3}])          # Launch 3 idle Houdini instances
get_pool_status()                   # → 3 idle, 0 active
acquire_from_pool()                 # → Grab one, now 2 idle, 1 active
disconnect_houdini()                # → Release back to idle pool

# When Houdini freezes:
is_houdini_healthy()                # → verdict: "hung", CPU 0%
adopt_idle()                        # → Kill frozen instance, grab an idle one

Available Tools (57)

Category	Tools	Description
Scene (4)	new_scene save_hip open_hip get_scene_summary	Create, open, save scenes
Nodes (5)	create_node delete_node get_node_info get_node_tree get_node_children	Build and inspect node graphs
Parameters (3)	get_parameter set_parameter get_parm_template	Read/write node parameters
Connections (3)	connect_nodes disconnect_nodes get_connections	Wire node inputs/outputs
Execution (3)	execute_python cook_node get_node_errors	Run Python in Houdini, cook nodes
Geometry (3)	get_geometry_info get_point_positions get_attribute_values	Inspect points, prims, attributes
Viewport (2)	viewport_screenshot set_viewport	Capture and configure viewport
Render (2)	render_frame render_preview	Render via ROP or quick OpenGL preview
Verification (3)	compare_screenshots export_node_network get_scene_diff	Compare images, diff scene states
Lifecycle (8)	start_houdini stop_houdini ensure_houdini_ready warm_pool is_houdini_healthy ...	Launch, stop, pool, health check
Sessions (13)	get_pool_status acquire_from_pool adopt_idle scan_ports connect_to_houdini ...	Pool management, multi-instance
Screen (4)	capture_houdini_windows get_houdini_windows check_process_status ...	Window capture, process status
Events (4)	start_event_monitoring get_event_log ...	Node operation event tracking

How It Works

AI Agent ←(stdio)→ MCP Server ←(RPyC/TCP)→ Houdini
                         ↕
                    WebUI Dashboard

• MCP Server starts idle. On first tool call, it auto-discovers a Houdini RPyC listener on the configured port range (default 18811-18899) and connects.
• Houdini runs a startup hook (456.py) that calls hrpyc.start_server() to expose the full hou module over RPyC.
• WebUI is a separate FastAPI app that reads the shared config and session registry at ~/houdini_mcp/.

Troubleshooting

Houdini not connecting — Run install_startup_scripts() or use the WebUI Config page, then restart Houdini.

Port conflicts — Use scan_ports() or the WebUI Dashboard to see port status. Run cleanup_stale_sessions() to remove dead entries.

RPyC version mismatch — This project requires rpyc>=4.1,<5. Houdini ships RPyC 4.x internally. RPyC 6.x is incompatible.

Viewport screenshot fails — Requires GUI mode. Does not work with hython (headless).

License

MIT
