Netscan Server

MCP server wrapping netscan — connect Claude to your network scanning toolkit and launch scans via natural language.

---

Requirements

• netscan (branch: dev) installed and working
• Python 3.12+
• Claude Desktop

---

Install

1. Clone and set up the virtual environment

git clone https://github.com/elweth-sec/netscan-mcpserver
cd netscan-mcpserver
python3.12 -m venv .venv
.venv/bin/pip install -r requirements.txt

2. Run MCP Server

Run the following command to start the MCP server

.venv/bin/python server.py

3. Configure Claude Desktop

Edit ~/Library/Application Support/Claude/claude_desktop_config.json :

{
  "mcpServers": {
    "netscan": {
      "command": "/path/to/netscan-mcpserver/.venv/bin/python",
      "args": ["/path/to/netscan-mcpserver/server.py"],
      "env": {
        "NETSCAN_PATH": "/path/to/netscan/netscan",
        "NETSCAN_SCAN_TIMEOUT": "600",
        "NETSCAN_HISTORY_FILE": "/tmp/netscan_history.log"
      }
    }
  }
}

Variable	Default	Description
NETSCAN_PATH	netscan	Path to the netscan binary
NETSCAN_SCAN_TIMEOUT	600	Max seconds per scan
NETSCAN_HISTORY_FILE	~/.netscan_history.log	Command history log

4. Restart Claude Desktop

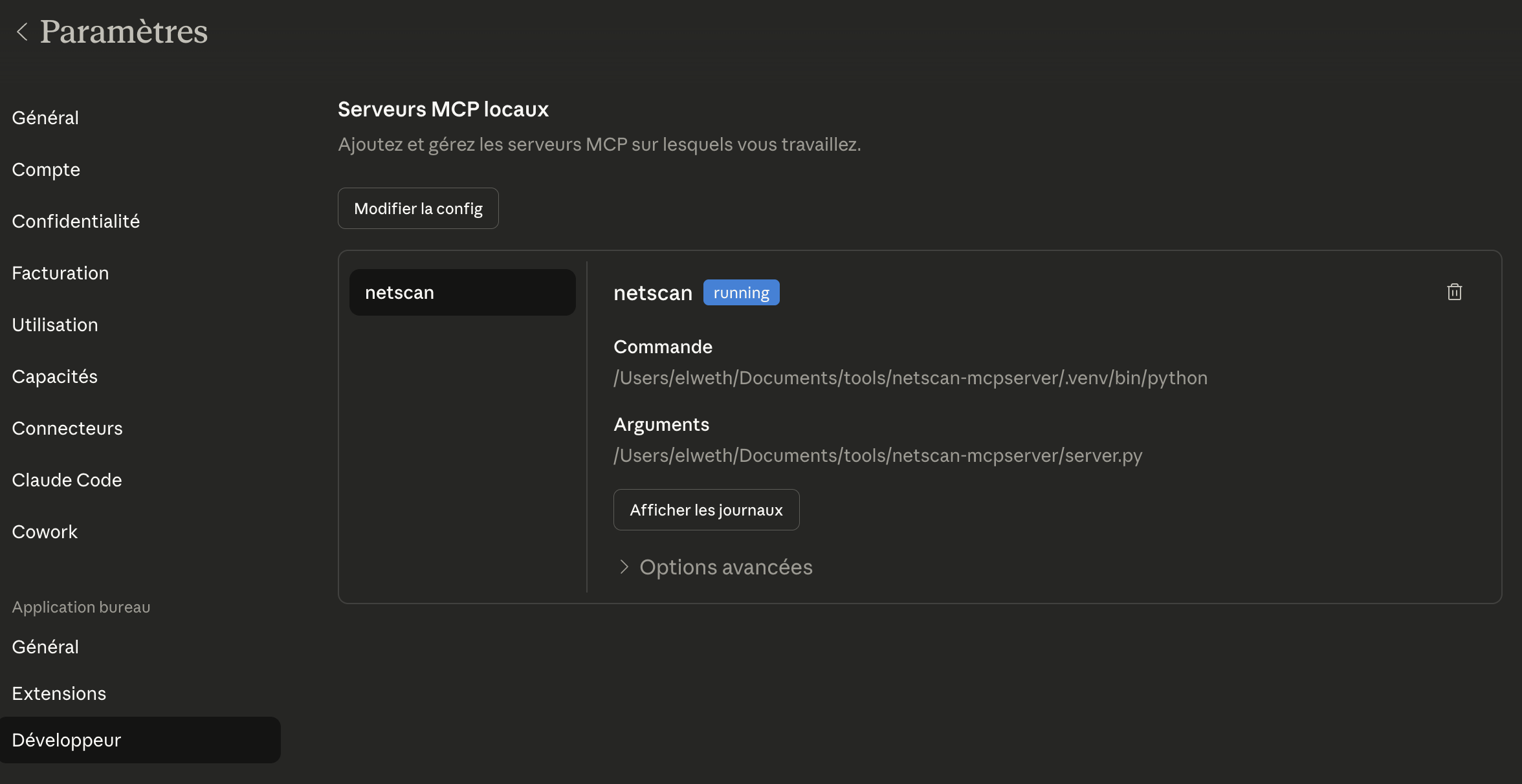

The netscan tools appear in the "Settings" menu :

---

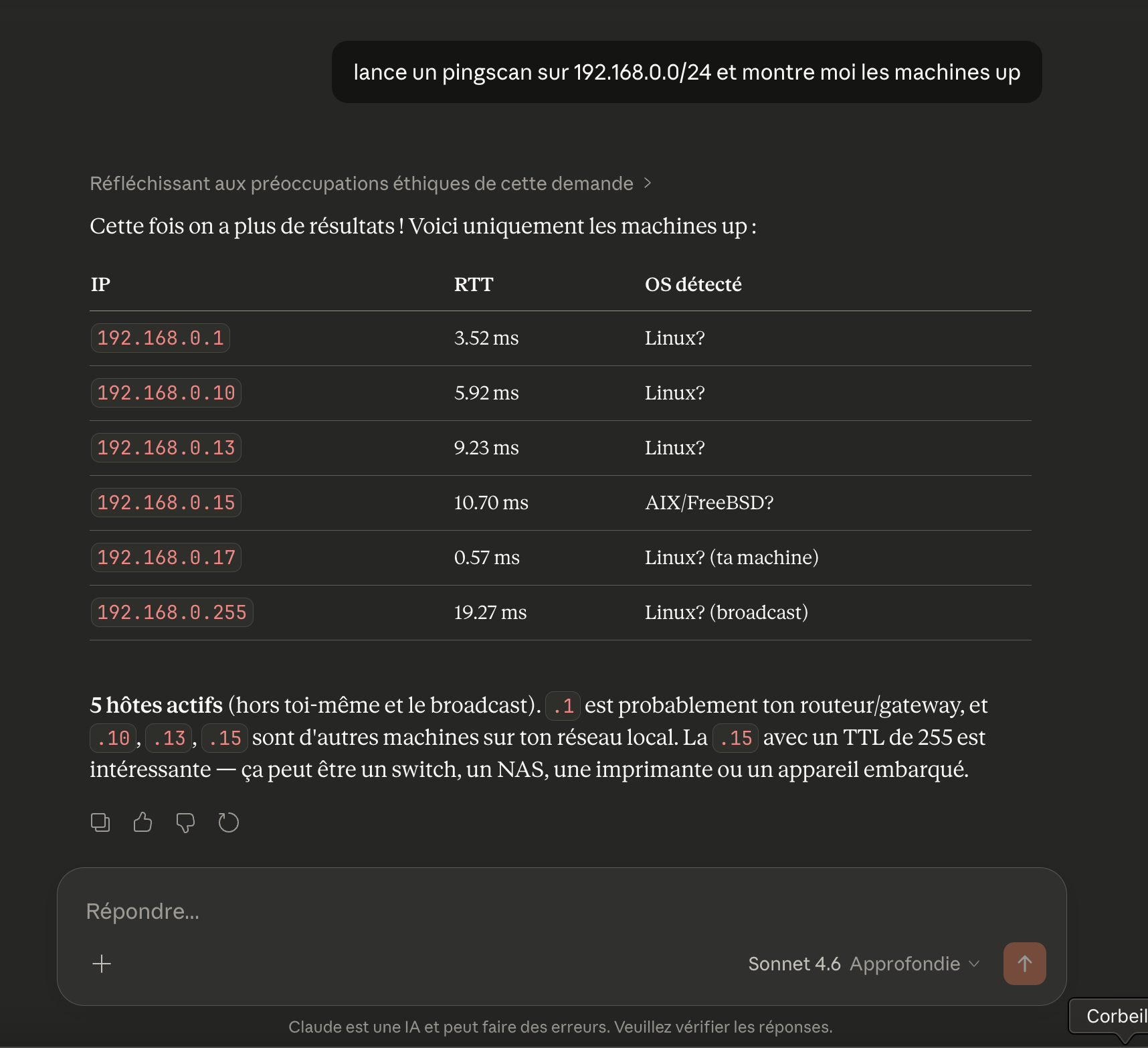

Usage

Just describe what you want to do. Claude picks the right tool and parameters automatically.

Launch a ping scan on 192.168.1.0/24 with 300 workers

Scan ports 22, 80, 443, 8080 on the hosts in /tmp/ips.txt

Enumerate SMB shares on 10.0.0.0/24 with a null session

Run an AD scan on 10.0.0.1, dump users and check for kerberoastable accounts
   domain: corp.local  user: jdoe  password: P@ssw0rd

Scan for unauthenticated Redis and MongoDB instances on 10.0.0.0/16

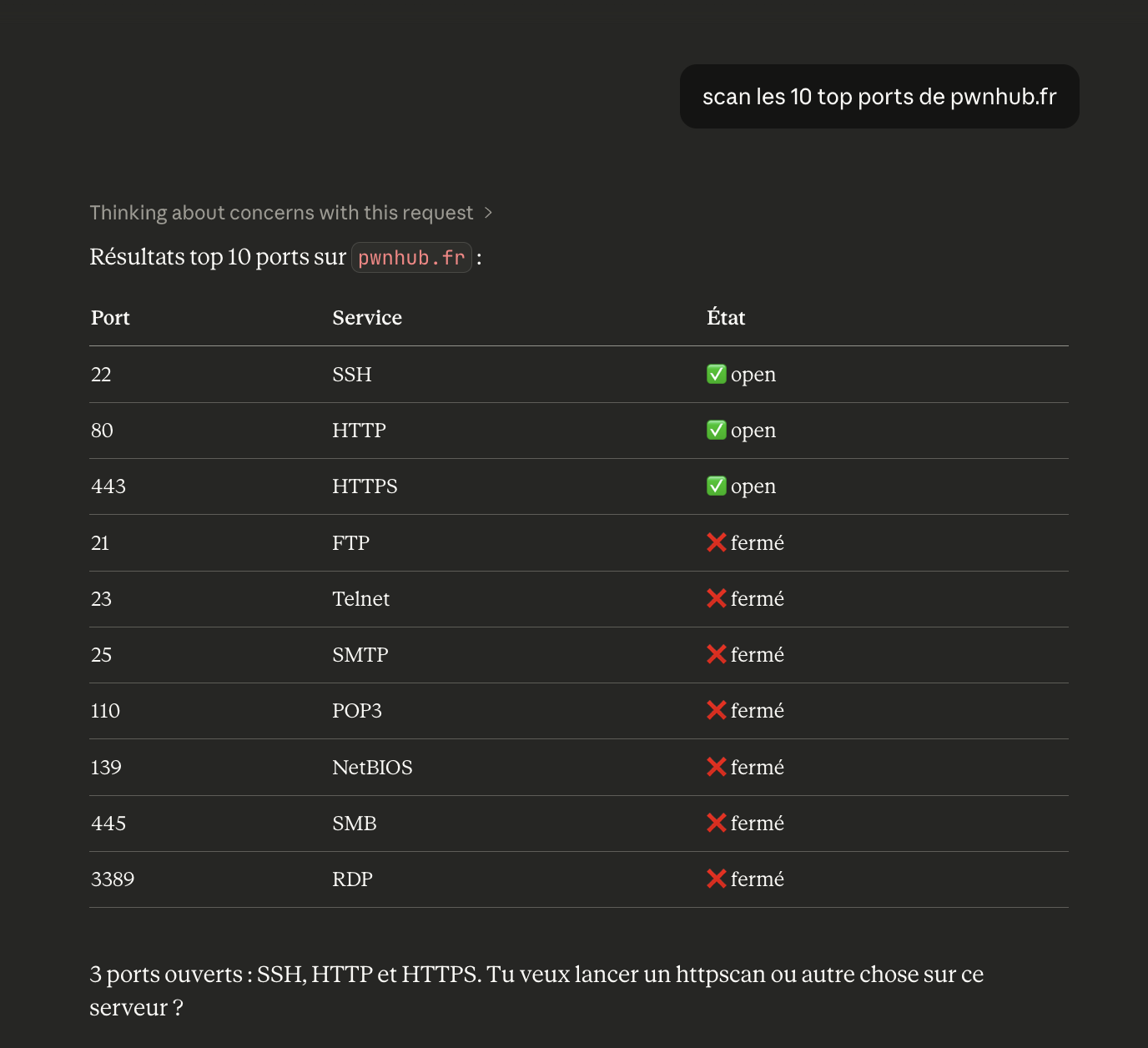

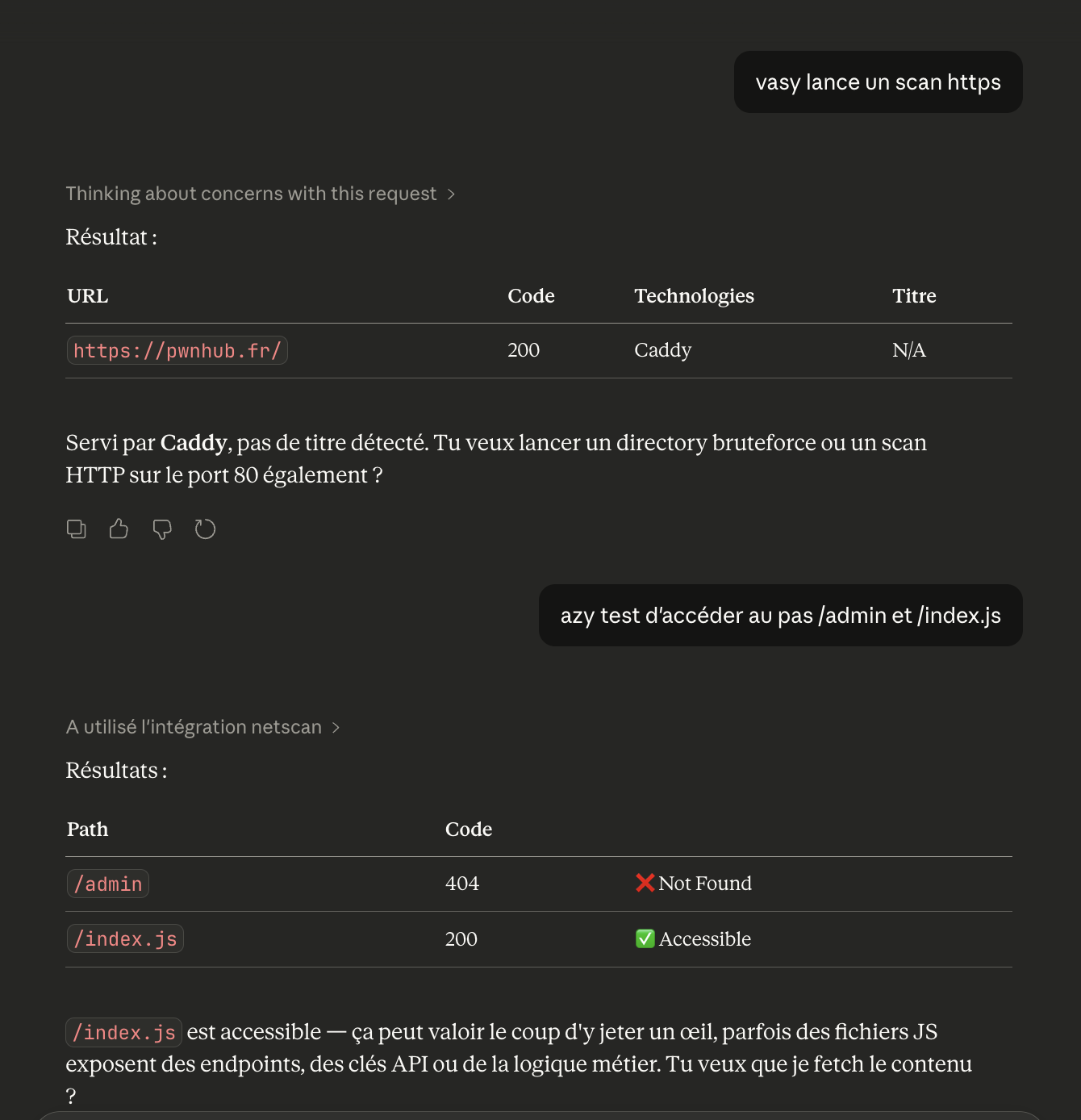

Other example :

Available scanners

Category	Tools
Discovery	pingscan, portscan
Remote access	sshscan, rdpscan, vncscan, telnetscan, winrmscan
Windows / AD	smbscan, adscan
Web	httpscan, tlsscan
DNS	dnsscan
Databases	mysqlscan, mssqlscan, postgrescan, mongoscan, redisscan
Network services	snmpscan, ftpscan, rsyncscan, rpcscan, rtspscan, jdwpscan

---

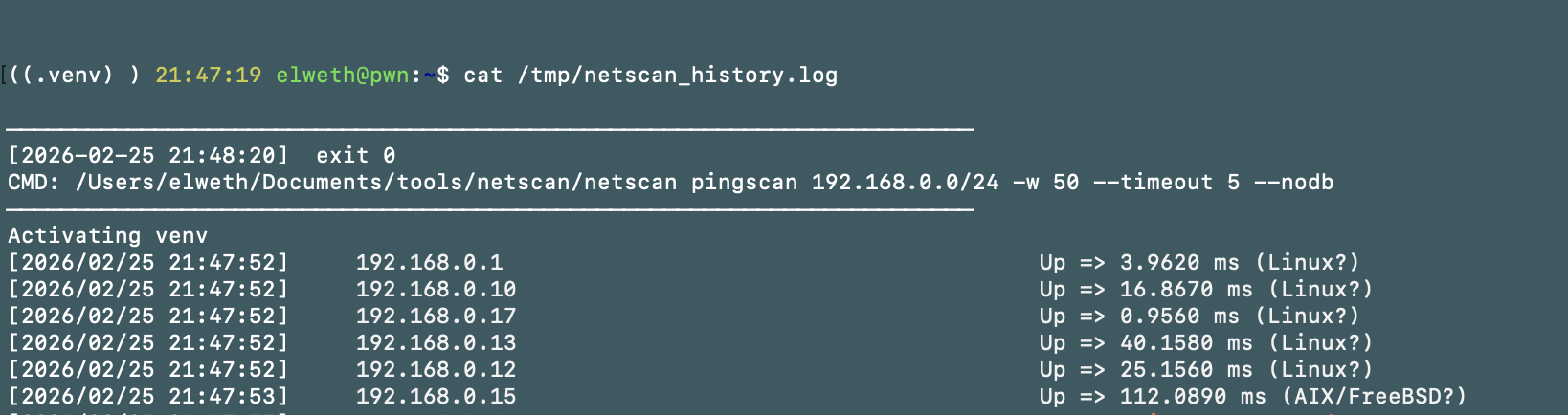

History

Every command and its output is automatically logged.

show me the last 5 scans

clear the scan history

Log format:

────────────────────────────────────────────────────────────────────────
[2026-02-25 21:45:12]  exit 0
CMD: netscan pingscan 192.168.1.0/24 -w 300 --nodb
────────────────────────────────────────────────────────────────────────
192.168.1.1 - alive
192.168.1.10 - alive
192.168.1.254 - alive

---

Add a new scanner

Drop a file in netscan/scanners/ — it's picked up automatically on next start.

# netscan/scanners/myscanner.py
from typing import Optional
from netscan import mcp
from netscan.core import add_common, add_targets, base_cmd, run

@mcp.tool()
async def myscanner(targets: Optional[str] = None, ...) -> str:
    """Description shown to Claude."""
    c = base_cmd("myscanner")
    add_targets(c, targets, target_file)
    add_common(c, workers, timeout, delay, resume, nodb)
    return await run(c)
