What is this?

Harf (حرف) is Roshan AI's native Persian speech-to-text engine. It turns audio, video, and even live streams into Persian text with high accuracy, and ships a family of speaker-analysis endpoints on top.

roshan-harf-mcp wraps that HTTP/WebSocket API as MCP tools so Claude — or any MCP client — can use Harf as a first-class capability. Harf is token-authenticated and self-hosted; organizations typically run many independent instances (per region, per tenant, dev/staging/prod). This server treats named instances as a core concept: every tool accepts an optional instance argument and routes the request to that deployment.

---

Features

• Full Harf coverage — transcription (URL + upload + async polling), alignment, live streaming, and all four speaker tasks.
• Many self-hosted instances — route any call to a named Harf deployment; secrets never leave the process.
• Three transports — stdio (default), sse, and streamable-http.
• Safe by default — http(s) URL validation, list-size clamps, and token redaction in logs/errors.
• Batteries included — Docker image, Docker Compose, Helm chart, raw Kubernetes manifests, and a Terraform module.

---

Installation

# From the project directory (roshan-harf-mcp/)
python -m venv .venv && . .venv/bin/activate
pip install -e ".[dev]"      # dev extras: pytest, pytest-asyncio, respx, ruff

Requires Python >= 3.11.

---

Quick start

# Point at the public (or your self-hosted) Harf and run over stdio
export ROSHAN_HARF_BASE_URL="https://harf.roshan-ai.ir"
export ROSHAN_HARF_TOKEN="<your-token>"

python -m roshan_harf_mcp                       # stdio (default)
python -m roshan_harf_mcp --transport streamable-http --host 0.0.0.0 --port 8000

Request a TOKEN_KEY from Roshan by emailing [email protected].

---

Configuration

Configuration is environment-driven (via pydantic-settings). Two styles are supported.

Shorthand (single instance)

Variable	Description	Default
ROSHAN_HARF_BASE_URL	Base URL of the default Harf instance	https://harf.roshan-ai.ir
ROSHAN_HARF_TOKEN	API token for the default instance (Authorization: Token …)	(none)

These synthesize an instance named default.

Multi-instance (nested)

Prefix ROSHAN_HARF__, nested delimiter __:

Variable	Description	Default
ROSHAN_HARF__INSTANCES__<NAME>__BASE_URL	Base URL for instance <NAME>	https://harf.roshan-ai.ir
ROSHAN_HARF__INSTANCES__<NAME>__TOKEN	Token for instance <NAME>	(none)
ROSHAN_HARF__INSTANCES__<NAME>__VERIFY_SSL	Verify TLS for <NAME>	true
ROSHAN_HARF__INSTANCES__<NAME>__TIMEOUT	Per-request timeout (seconds)	60
ROSHAN_HARF__DEFAULT_INSTANCE	Instance used when instance is omitted	default
ROSHAN_HARF__LOG_LEVEL	Log level (DEBUG/INFO/WARNING/ERROR)	INFO

Example: two deployments with Tehran as the default:

export ROSHAN_HARF__INSTANCES__TEHRAN__BASE_URL="https://harf.tehran.example.ir"
export ROSHAN_HARF__INSTANCES__TEHRAN__TOKEN="tok-tehran"
export ROSHAN_HARF__INSTANCES__SHIRAZ__BASE_URL="https://harf.shiraz.example.ir"
export ROSHAN_HARF__INSTANCES__SHIRAZ__TOKEN="tok-shiraz"
export ROSHAN_HARF__DEFAULT_INSTANCE="tehran"

Then call any tool with instance="shiraz" to target that deployment, or use list_instances to discover what's configured (it returns names + base URLs only, never tokens).

MCP client configuration

{
  "mcpServers": {
    "roshan-harf": {
      "command": "python",
      "args": ["-m", "roshan_harf_mcp"],
      "env": {
        "ROSHAN_HARF_BASE_URL": "https://harf.roshan-ai.ir",
        "ROSHAN_HARF_TOKEN": "<your-token>"
      }
    }
  }
}

---

Tool reference

All speech tools are prefixed harf_; meta tools are unprefixed. Every speech/health tool accepts an optional instance argument.

Tool	Harf endpoint	Purpose
harf_transcribe	POST /api/transcribe_files/	Transcribe audio/video by URL. wait=true blocks for the result; wait=false returns {state, task_ids} to poll.
harf_transcribe_upload	POST /api/transcribe_files/ (multipart)	Transcribe a local file via upload (field media).
harf_transcription_status	POST /api/transcribe_files/	Poll async transcription tasks (PENDING/FAILURE/TIMEOUT).
harf_align	POST /api/alignment/	Force-align a known transcript to its audio → per-segment timestamps.
harf_live_transcribe	WS /ws_api/transcribe_files/wav/sync/	Stream a local WAV file for real-time transcription.
harf_live_info	WS /ws_api/transcribe_files/wav/sync/	Describe the live streaming protocol (resolved WS URL + messages).
harf_speaker_verification	POST /api/speaker_tasks/verification/	Verify a speaker vs. reference audio (threshold 0.65).
harf_speaker_identification	POST /api/speaker_tasks/identification/	Identify the most similar known speaker.
harf_speaker_diarization	POST /api/speaker_tasks/diarization/	"Who spoke when" segmentation with text.
harf_speaker_indexing	POST /api/speaker_tasks/indexing/	Label timestamped segments with known speakers.
healthcheck	GET /api/healthcheck/	Check that an instance is up and ready.
list_instances	(local)	List configured instances (names + base URLs only).
roshan_harf_docs	(local)	Offline documentation about Harf and these tools.

Note: Harf wraps uncertain transcribed words in square brackets.

Async transcription pattern

harf_transcribe(media_urls=[...], wait=False)  ->  {state, task_ids}
harf_transcription_status(task_ids=[...])       ->  {state} ... until the result is ready

---

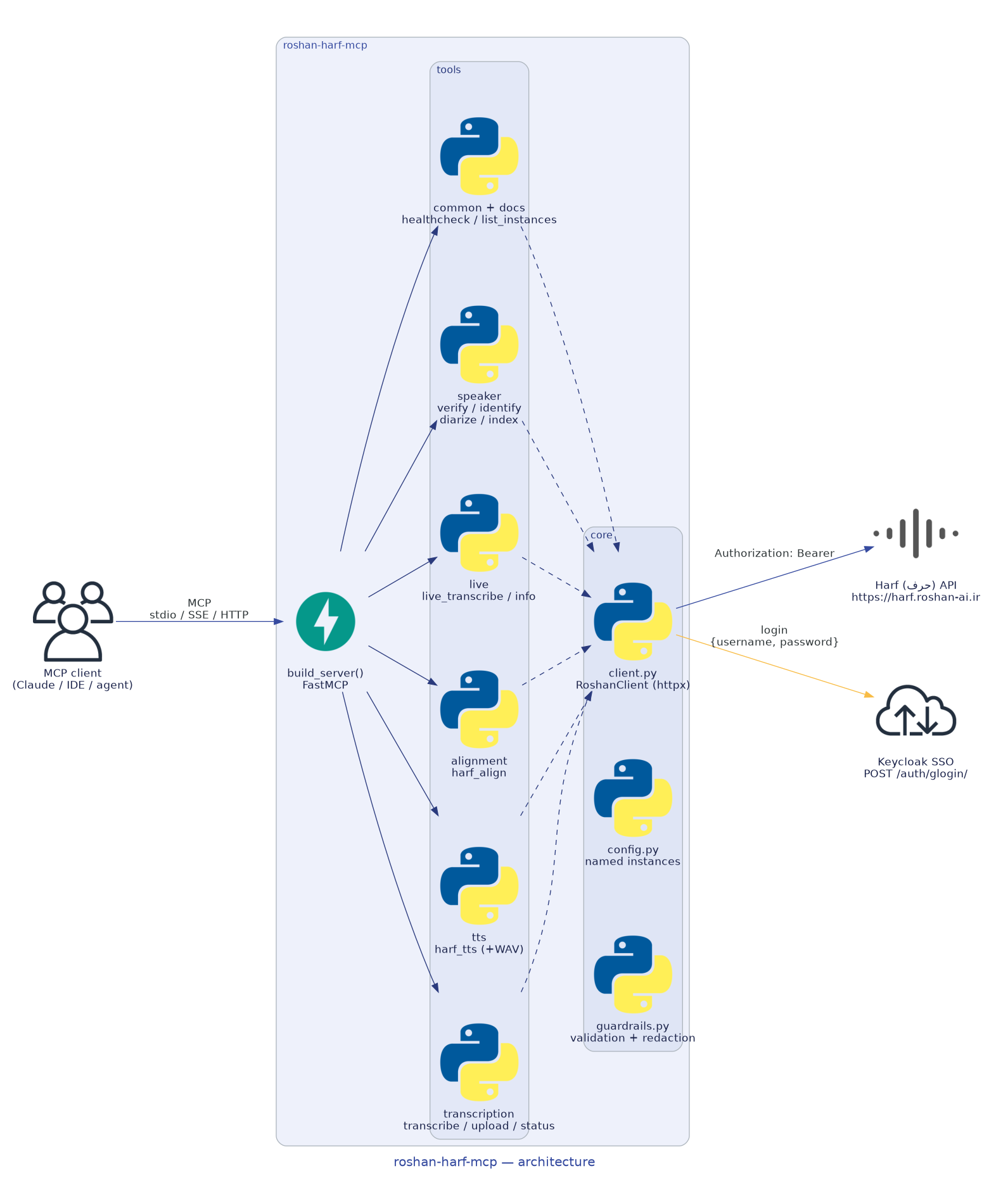

Architecture

The MCP client speaks MCP to roshan-harf-mcp, which dispatches to focused tool modules. They share a single RoshanClient (httpx + websockets) that talks to the Harf API with Authorization: Token.

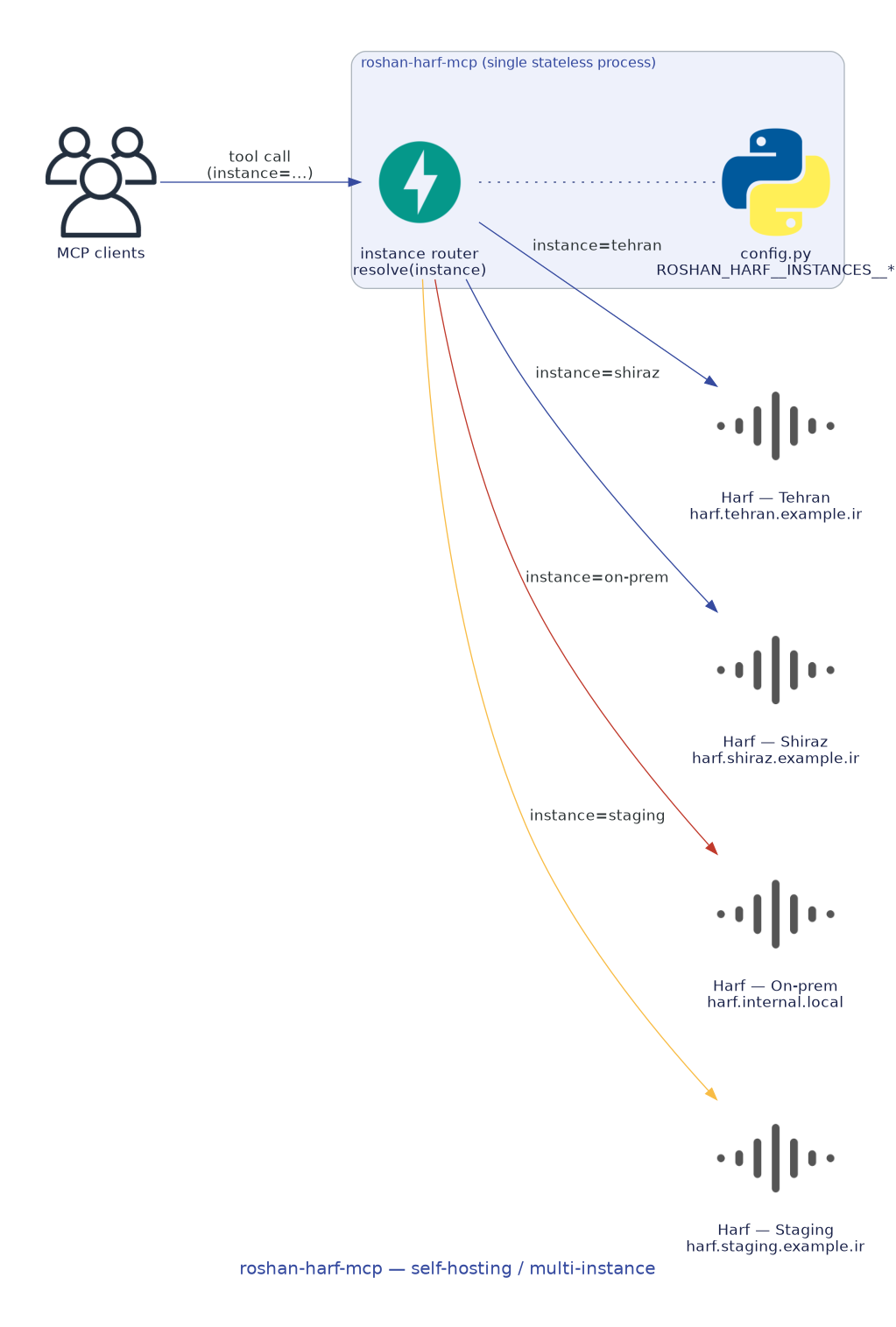

Self-hosting & scaling

One stateless server process routes by instance to any number of self-hosted Harf deployments:

Because the server holds no per-request state, you can scale it horizontally behind a load balancer (multiple Docker Compose replicas, a Kubernetes Deployment with an HPA, etc.). Run it with the streamable-http transport for HTTP-based clients.

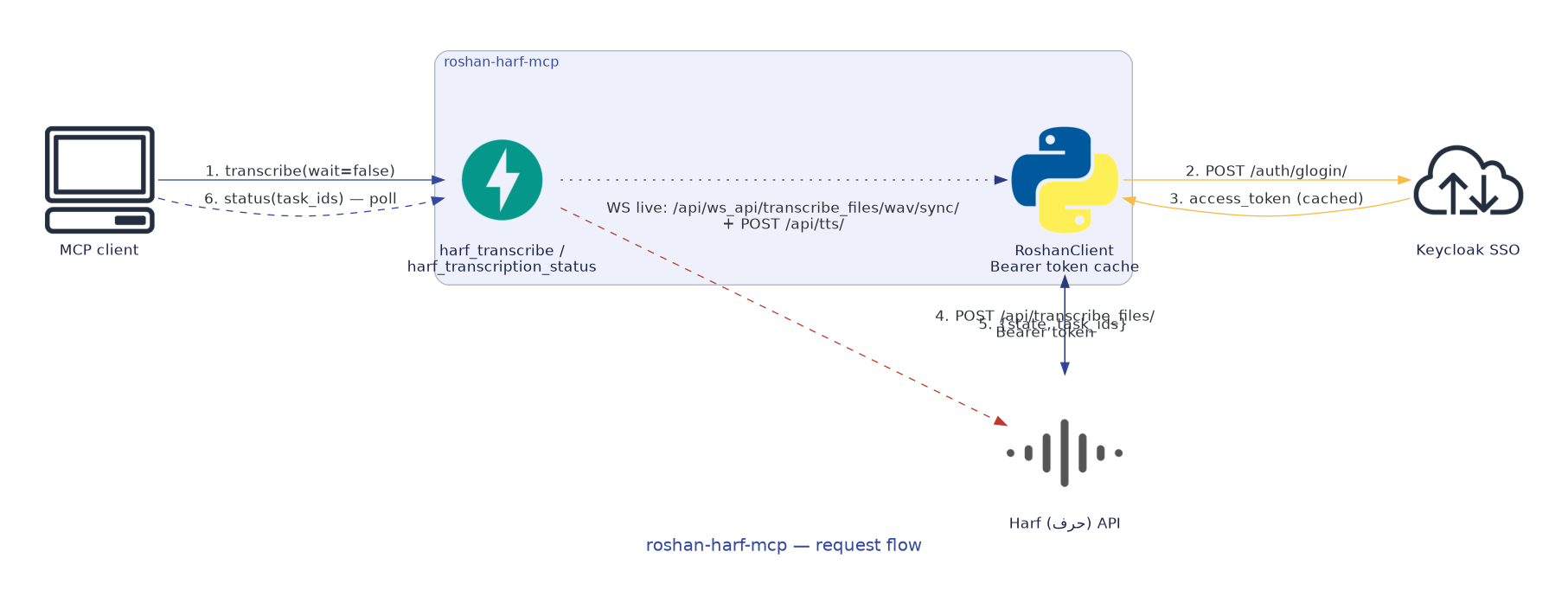

Request flow

A transcription request can be synchronous (wait=true) or asynchronous (wait=false, then poll with harf_transcription_status). Live audio uses the WebSocket path instead.

The diagrams are generated with the diagrams package — see assets/diagrams/generate_diagrams.py (make diagrams).

---

Deployment

A Docker image, Compose file, Helm chart, raw Kubernetes manifests, and a Terraform module are provided.

# Docker
docker build -t roshan-harf-mcp:0.1.0 .
docker run --rm -p 8000:8000 \
  -e ROSHAN_HARF_BASE_URL="https://harf.roshan-ai.ir" \
  -e ROSHAN_HARF_TOKEN="<token>" \
  roshan-harf-mcp:0.1.0

# Docker Compose (two instances pre-wired)
docker compose up

See deploy/README.md for Helm, Kubernetes, and Terraform instructions.

---

Testing

python scripts/smoke_test.py        # offline: build server, assert tools/instance schema
python examples/inspect_server.py   # print catalog + registered tools
pytest -q                           # unit tests (HTTP mocked with respx)
ruff check src tests                # lint

Live integration tests under tests/live/ are skipped unless ROSHAN_HARF_LIVE=1 and credentials are set.

---

License

MIT. Unofficial, community-built integration. "Roshan", "Harf", and related marks belong to their respective owner and are used only to identify the upstream service.
