Devflows

Run your developer workflows as BPMN processes on a local CIB seven engine, and drive them from AI coding agents such as Claude Code through an MCP server.

One workflow so far: the release ritual of a repository. Run the quality gates, draft the release notes, decide whether a human even needs to look, tag, publish. This repository cuts its own releases by running that process on itself.

Why

Cutting a release is a process with a human decision in the middle of it. Normally that process lives in someone's head and in a terminal scrollback. Nothing records that the gates ran, that a person approved, or what was published.

A process engine is exactly the right tool for that shape of problem. CIB seven keeps the state, keeps the history, and knows how to wait for a human. Your machine still does the work, and an AI agent can start a run and watch it, but it cannot skip the approval, because the approval is a step in the process rather than a promise in a prompt.

Four things here are the reason this is a process and not a shell script:

• The approval policy is data, not code. A DMN decision table decides whether a release needs a human at all. Change the rules without touching a line of Python.
• An AI drafts the release notes, and a human owns them. The draft appears in the approval form, and whatever is approved is what gets published.
• A failed publish undoes its own tag. BPMN compensation, so a broken release leaves nothing behind.
• A forgotten approval ends itself. A boundary timer rejects a release nobody answered.

Architecture

flowchart LR
    agent["Claude Code<br/>(any MCP client)"] -- stdio --> mcpserver["devflows-mcp"]
    mcpserver -- REST --> engine["CIB seven engine<br/>Docker, H2, localhost:8080"]
    human["You, in the web UI"] -- approve --> engine
    engine -- fetchAndLock --> worker["devflows-worker"]
    worker -- shell --> repo["your repository<br/>pytest, ruff, git, gh"]

The engine never runs a shell command and never touches your repository. It hands out work; the worker on your machine polls for it and does it. That is the standard Camunda 7 external task pattern, and it is what makes it safe to let a process drive a developer machine.

The release process

flowchart LR
    start((start)) --> gates["Run gates<br/><i>devflows.gates</i>"]
    gates --> q1{Gates passed?}
    q1 -- no --> failed((Gates failed))
    q1 -- yes --> notes["Draft release notes<br/><i>devflows.notes</i>"]
    notes --> policy["Decide policy<br/><i>DMN release-policy</i>"]
    policy --> q2{Approval required?}
    q2 -- "policy says ship" --> tag
    q2 -- "ask a human" --> approve["Approve release<br/><i>user task</i>"]
    approve -. timer .-> expired((Approval expired))
    approve --> q3{Approved?}
    q3 -- stop --> rejected((Release rejected))
    q3 -- ship --> tag["Tag<br/><i>devflows.tag</i>"]
    tag --> publish["Publish<br/><i>devflows.publish</i>"]
    publish -. "publish failed" .-> undo["Delete the tag<br/><i>devflows.untag</i>"]
    undo --> pubfail((Publish failed))
    publish --> released((Released))

The rectangles with a topic name are external tasks. "Decide policy" is a business rule task that calls the DMN decision. "Approve release" is a BPMN user task, so it waits, it survives an engine restart, and it can be answered either in the web UI or through the approve_gate MCP tool.

dry_run=true runs the gates for real and changes nothing else: no tag, no push, no release.

The approval policy

processes/release-policy.dmn is a decision table with a FIRST hit policy:

release_kind	gates_passed	Approval required	Reason
any	false	true	Gates failed, a human has to look
patch	true	false	Patch release with green gates, approved by policy
any	any	true	Minor or major release, a human decides

release_kind comes from comparing the candidate version against the newest tag in the repository. With no previous tag it is major, so a first release always asks a human. Edit the table in Camunda Modeler and redeploy; no code changes.

On the auto-approved path approved is never set, because no human said yes. The history records approval_required=false and policy_reason instead.

Release notes

draft_notes collects the commits since the previous tag and asks the local claude CLI to write markdown release notes. The draft lands in the approval form as an editable field, and whatever is approved becomes the body of the GitHub Release.

If claude is not installed, or the call fails, the notes fall back to the plain commit list. notes_source records which happened. Nothing leaves your machine except through the CLI you already run, and this project holds no API key of its own.

When a step fails

Two different failures, handled two different ways.

A step that might work next time, such as a network blip or gh not being logged in, is reported to the engine as an external task failure with retries left. The worker backs off 5 s, 15 s, then 60 s, and only then does an incident appear.

A step that will not work next time, such as a publish that was refused, is reported as a BPMN error with the code PUBLISH_FAILED. An error boundary event catches it, throws compensation, and the undo_tag handler deletes the tag locally and on the remote. No incident is raised, because nothing is broken; the release simply did not happen.

What it looks like

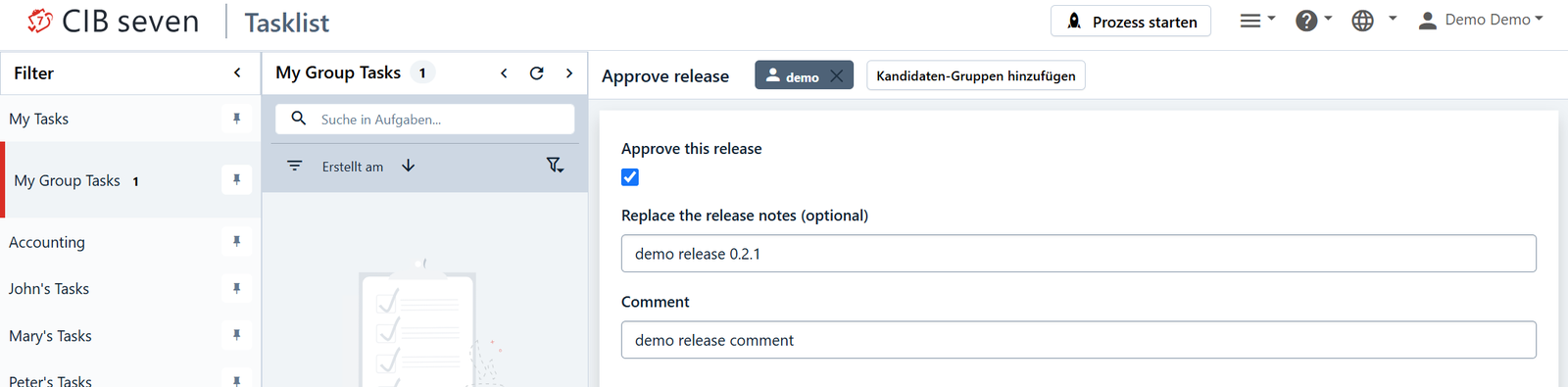

The process stops and waits for a person. The approval carries the gate results and the drafted release notes, and it belongs to the camunda-admin group rather than to one named user, so whoever is around can pick it up.

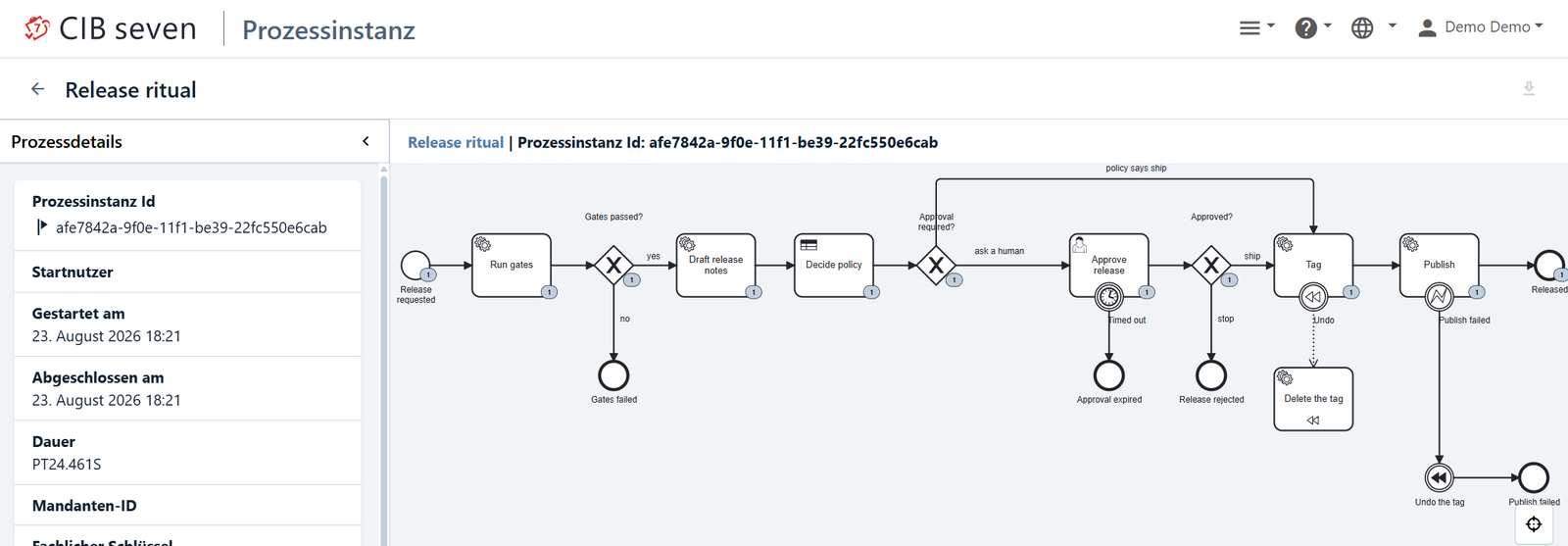

Afterwards the whole run is in the history: which gates ran, what the policy decided, who approved, what was tagged and where it was published.

Quickstart

docker compose -f engine/docker-compose.yml up -d

uv sync

uv run pytest -m "not integration" && uv run ruff check .

Deploy the process and the decision table (once per engine):

curl -s -X POST http://localhost:8080/engine-rest/deployment/create -F "deployment-name=cibseven-devflows" -F "release.bpmn=@processes/release.bpmn" -F "release-policy.dmn=@processes/release-policy.dmn"

Check that everything a release needs is in place:

uv run devflows-doctor

Start the worker and leave it running in its own terminal:

uv run devflows-worker

Start a dry release of this repository. Replace repo_path with this repository's absolute path. Use forward slashes even on Windows (C:/Users/you/repos/cibseven-devflows): they work, and they save you from fighting your shell over backslash escaping.

curl -s -X POST http://localhost:8080/engine-rest/process-definition/key/devflows-release/start -H "Content-Type: application/json" -d '{"variables":{"repo_path":{"value":"ABSOLUTE/PATH/TO/cibseven-devflows","type":"String"},"version":{"value":"0.2.0","type":"String"},"dry_run":{"value":true,"type":"Boolean"}}}'

Then approve it at http://localhost:8080/webapp/#/seven/auth/tasks as demo / demo: filter My Group Tasks, claim Approve release, tick approve, submit.

In practice you start runs through the MCP server instead of curl. See docs/DEMO.md for the full walkthrough, or docs/DEMO.de.md auf Deutsch.

devflows.yaml

Each repository describes its own release in a devflows.yaml at its root:

gates:
  - name: tests
    run: uv run pytest -q
  - name: lint
    run: uv run ruff check .

tag:
  format: "v{version}"

publish:
  run: gh release create v{version} --notes-file {notes_file}

Key	Meaning
gates	Ordered list of quality gates. Each needs a name and a shell command in run. The first non-zero exit code ends the release.
tag.format	How the tag name is built. {version} is the only placeholder. Optional; defaults to v{version}.
publish.run	The shell command that publishes the release. Placeholders: {version}, and {notes_file} for the path of a file holding the approved release notes.

Use {notes_file} to publish the notes the human approved. Leave it out and use --generate-notes if you would rather GitHub wrote them.

Unknown top-level keys are ignored, so a newer version of devflows can add steps without breaking an older file.

The MCP tools

devflows-mcp speaks MCP over stdio and works from any MCP client.

Tool	Arguments	Returns
engine_status	—	Whether the engine answers, its version, its engine names
deploy_process	bpmn_path (optional)	Deployment id and the deployed process definition keys
list_processes	—	Deployed process definitions with key, version and id
start_release	repo_path, version, dry_run (default true)	Process instance id and a link to it in the web UI
get_run	process_instance_id	State, current activity, open tasks, the gate report, all variables
list_gates	repo_path	The gates that repository would run. Does not touch the engine
approve_gate	task_id, approve, comment	Confirmation that the approval task was completed
list_runs	limit	Recent runs with their state, newest first
retry_run	process_instance_id	Gives a run stuck on an incident another attempt
cancel_run	process_instance_id, reason	Stops a run; the reason stays in the history
doctor	repo_path (optional)	Engine, process, decision and config in one call

Every tool returns a dictionary with an ok flag, and an error string when ok is false. No tool raises, because the caller is a language model that has to explain the failure to a person.

Using it from Claude Code

plugin/ is a Claude Code plugin around the same server:

• plugin/.mcp.json starts devflows-mcp with uv run.
• plugin/skills/release-with-devflows/SKILL.md tells the agent when to use the engine and in what order to call the tools, including the rule that it must stop and ask before approving.
• plugin/commands/release.md provides /devflows:release <version> [--real].

To wire the server into any other MCP client directly:

{
  "mcpServers": {
    "cibseven-devflows": {
      "command": "uv",
      "args": ["run", "devflows-mcp"]
    }
  }
}

Configuration

Variable	Default	Used by
DEVFLOWS_ENGINE_URL	http://localhost:8080/engine-rest	worker, MCP server
DEVFLOWS_WORKER_ID	devflows-worker-<hostname>	worker
DEVFLOWS_LOCK_MS	300000	worker
DEVFLOWS_POLL_MS	10000	worker
DEVFLOWS_BPMN_PATH	found next to the package	MCP server

Variables you can set when starting a run:

Variable	Default	Meaning
repo_path	—	Absolute path of the repository to release
version	—	Version without the tag prefix, for example 0.2.0
dry_run	—	When true, nothing is tagged or published
approval_timeout	PT24H	ISO 8601 duration before an unanswered approval expires

A short approval_timeout such as PT2M makes the timer easy to demonstrate.

Security

Two things about this project are deliberate, and both assume it runs on your own machine:

• The engine has no authentication. The REST API on localhost:8080 accepts anything that can reach it. Do not expose that port to a network you do not control.
• The worker runs shell commands. They come from the devflows.yaml of the repository you asked it to release, they run as you, in that repository, and they are the same commands you would type. Only point it at repositories you trust.

There is no cloud service, no telemetry and no account beyond the GitHub credentials gh already has.

Repository layout

Directory	What is in it
engine/	Docker Compose for a local CIB seven 2.2.0 engine
processes/	release.bpmn, the release ritual, and release-policy.dmn, the approval policy
core/	devflows_core: engine REST client, config parsing, shell step runner
workers/	devflows_worker: the external task worker
mcp/	devflows_mcp: the stdio MCP server
plugin/	The Claude Code plugin
tests/	Unit tests, plus tests/integration/ which needs a live engine
docs/	The demo script, and the design and plan documents

Requirements

• Docker Desktop, for the engine
• Python 3.12 and uv
• git, and gh authenticated, for the tag and publish steps
• The claude CLI, optionally, for AI-drafted release notes
• Camunda Modeler 5.x if you want to edit the diagrams (optional). Open processes/release.bpmn and processes/release-policy.dmn as Camunda 7 files.

License

Apache License 2.0. See LICENSE.
