Run a live Excalidraw canvas and control it from AI agents. This repo provides:

MCP Server: Connect via Model Context Protocol (Claude Desktop, Cursor, Codex CLI, etc.)
Agent Skill: Portable skill for Claude Code, Codex CLI, and other skill-enabled agents

Keywords: Excalidraw agent skill, Excalidraw MCP server, AI diagramming, Claude Code skill, Codex CLI skill, Claude Desktop MCP, Cursor MCP, Mermaid to Excalidraw.

Demo

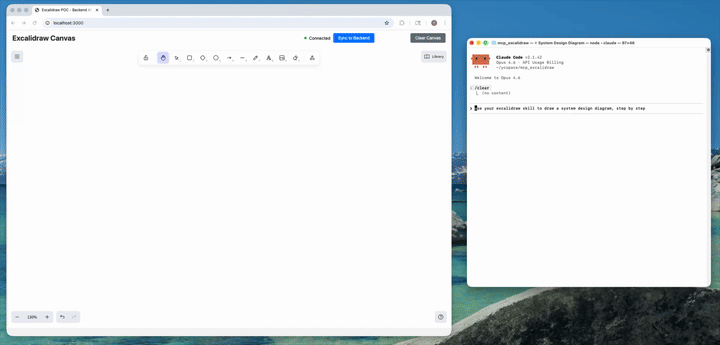

AI agent creates a complete architecture diagram from a single prompt (4x speed). Watch full video on YouTube

Demo
What It Is
How We Differ from the Official Excalidraw MCP
What's New
Quick Start (Local)
Quick Start (Docker)
Configure MCP Clients
Agent Skill (Optional)
MCP Tools (26 Total)
Testing
Troubleshooting
Known Issues / TODO
Development

What It Is

This repo contains two separate processes:

Canvas server: web UI + REST API + WebSocket updates (default http://localhost:3000)
MCP server: exposes MCP tools over stdio; syncs to the canvas via EXPRESS_SERVER_URL

How We Differ from the Official Excalidraw MCP

Excalidraw now has an official MCP — it's great for quick, prompt-to-diagram generation rendered inline in chat. We solve a different problem.

	Official Excalidraw MCP	This Project
Approach	Prompt in, diagram out (one-shot)	Programmatic element-level control (26 tools)
State	Stateless — each call is independent	Persistent live canvas with real-time sync
Element CRUD	No	Full create / read / update / delete per element
AI sees the canvas	No	`describe_scene` (structured text) + `get_canvas_screenshot` (image)
Iterative refinement	No — regenerate the whole diagram	Draw → look → adjust → look again, element by element
Layout tools	No	`align_elements`, `distribute_elements`, `group / ungroup`
File I/O	No	`export_scene` / `import_scene` (.excalidraw JSON)
Snapshot & rollback	No	`snapshot_scene` / `restore_snapshot`
Mermaid conversion	No	`create_from_mermaid`
Shareable URLs	Yes	Yes — `export_to_excalidraw_url`
Design guide	`read_me` cheat sheet	`read_diagram_guide` (colors, sizing, layout, anti-patterns)
Viewport control	Camera animations	`set_viewport` (zoom-to-fit, center on element, manual zoom)
Live canvas UI	Rendered inline in chat	Standalone Excalidraw app synced via WebSocket
Multi-agent	Single user	Multiple agents can draw on the same canvas concurrently
Works without MCP	No	Yes — REST API fallback via agent skill

TL;DR — The official MCP generates diagrams. We give AI agents a full canvas toolkit to build, inspect, and iteratively refine diagrams — including the ability to see what they drew.

What's New

v2.0 — Canvas Toolkit

13 new MCP tools (26 total): get_element, clear_canvas, export_scene, import_scene, export_to_image, duplicate_elements, snapshot_scene, restore_snapshot, describe_scene, get_canvas_screenshot, read_diagram_guide, export_to_excalidraw_url, set_viewport
Closed feedback loop: AI can now inspect the canvas (describe_scene) and see it (get_canvas_screenshot returns an image) — enabling iterative refinement
Design guide: read_diagram_guide returns best-practice color palettes, sizing rules, layout patterns, and anti-patterns — dramatically improves AI-generated diagram quality
Shareable URLs: export_to_excalidraw_url encrypts and uploads the scene to excalidraw.com, returns a shareable link anyone can open
Viewport control: set_viewport with scrollToContent, scrollToElementId, or manual zoom/offset — agents can auto-fit diagrams after creation
File I/O: export/import full .excalidraw JSON files
Snapshots: save and restore named canvas states
Skill fallback: Agent skill auto-detects MCP vs REST API mode, gracefully falls back to HTTP endpoints when MCP server isn't configured
Fixed all previously known issues: align_elements / distribute_elements fully implemented, points type normalization, removed invalid label type, removed HTTP transport dead code, ungroup_elements now errors on failure

v1.x

Agent skill: skills/excalidraw-skill/ (portable instructions + helper scripts for export/import and repeatable CRUD)
Better testing loop: MCP Inspector CLI examples + browser screenshot checks (agent-browser)
Bugfixes: batch create now preserves element ids (fixes update/delete after batch); frontend entrypoint fixed (main.tsx)

Quick Start (Local)

Prereqs: Node >= 18, npm

npm ci
npm run build

Terminal 1: start the canvas

HOST=0.0.0.0 PORT=3000 npm run canvas

Open http://localhost:3000.

Terminal 2: run the MCP server (stdio)

EXPRESS_SERVER_URL=http://localhost:3000 node dist/index.js

Quick Start (Docker)

Canvas server:

docker run -d -p 3000:3000 --name mcp-excalidraw-canvas ghcr.io/yctimlin/mcp_excalidraw-canvas:latest

MCP server (stdio) is typically launched by your MCP client (Claude Desktop/Cursor/etc.). If you want a local container for it, use the image ghcr.io/yctimlin/mcp_excalidraw:latest and set EXPRESS_SERVER_URL to point at the canvas.

Configure MCP Clients

The MCP server runs over stdio and can be configured with any MCP-compatible client. Below are configurations for both local (requires cloning and building) and Docker (pull-and-run) setups.

Environment Variables

Variable	Description	Default
`EXPRESS_SERVER_URL`	URL of the canvas server	`http://localhost:3000`
`ENABLE_CANVAS_SYNC`	Enable real-time canvas sync	`true`

Claude Desktop

Config location:

macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
Windows: %APPDATA%\Claude\claude_desktop_config.json
Linux: ~/.config/Claude/claude_desktop_config.json

Local (node)

{
  "mcpServers": {
    "excalidraw": {
      "command": "node",
      "args": ["/absolute/path/to/mcp_excalidraw/dist/index.js"],
      "env": {
        "EXPRESS_SERVER_URL": "http://localhost:3000",
        "ENABLE_CANVAS_SYNC": "true"
      }
    }
  }
}

Docker

{
  "mcpServers": {
    "excalidraw": {
      "command": "docker",
      "args": [
        "run", "-i", "--rm",
        "-e", "EXPRESS_SERVER_URL=http://host.docker.internal:3000",
        "-e", "ENABLE_CANVAS_SYNC=true",
        "ghcr.io/yctimlin/mcp_excalidraw:latest"
      ]
    }
  }
}

Claude Code

Use the claude mcp add command to register the MCP server.

Local (node) - User-level (available across all projects):

claude mcp add excalidraw --scope user \
  -e EXPRESS_SERVER_URL=http://localhost:3000 \
  -e ENABLE_CANVAS_SYNC=true \
  -- node /absolute/path/to/mcp_excalidraw/dist/index.js

Local (node) - Project-level (shared via .mcp.json):

claude mcp add excalidraw --scope project \
  -e EXPRESS_SERVER_URL=http://localhost:3000 \
  -e ENABLE_CANVAS_SYNC=true \
  -- node /absolute/path/to/mcp_excalidraw/dist/index.js

Docker

claude mcp add excalidraw --scope user \
  -- docker run -i --rm \
  -e EXPRESS_SERVER_URL=http://host.docker.internal:3000 \
  -e ENABLE_CANVAS_SYNC=true \
  ghcr.io/yctimlin/mcp_excalidraw:latest

Manage servers:

claude mcp list              # List configured servers
claude mcp remove excalidraw # Remove a server

Cursor

Config location: .cursor/mcp.json in your project root (or ~/.cursor/mcp.json for global config)

Local (node)

{
  "mcpServers": {
    "excalidraw": {
      "command": "node",
      "args": ["/absolute/path/to/mcp_excalidraw/dist/index.js"],
      "env": {
        "EXPRESS_SERVER_URL": "http://localhost:3000",
        "ENABLE_CANVAS_SYNC": "true"
      }
    }
  }
}

Docker

{
  "mcpServers": {
    "excalidraw": {
      "command": "docker",
      "args": [
        "run", "-i", "--rm",
        "-e", "EXPRESS_SERVER_URL=http://host.docker.internal:3000",
        "-e", "ENABLE_CANVAS_SYNC=true",
        "ghcr.io/yctimlin/mcp_excalidraw:latest"
      ]
    }
  }
}

Codex CLI

Use the codex mcp add command to register the MCP server.

Local (node)

codex mcp add excalidraw \
  --env EXPRESS_SERVER_URL=http://localhost:3000 \
  --env ENABLE_CANVAS_SYNC=true \
  -- node /absolute/path/to/mcp_excalidraw/dist/index.js

Docker

codex mcp add excalidraw \
  -- docker run -i --rm \
  -e EXPRESS_SERVER_URL=http://host.docker.internal:3000 \
  -e ENABLE_CANVAS_SYNC=true \
  ghcr.io/yctimlin/mcp_excalidraw:latest

Manage servers:

codex mcp list              # List configured servers
codex mcp remove excalidraw # Remove a server

OpenCode

Config location: ~/.config/opencode/opencode.json or project-level opencode.json

Local (node)

{
  "$schema": "https://opencode.ai/config.json",
  "mcp": {
    "excalidraw": {
      "type": "local",
      "command": ["node", "/absolute/path/to/mcp_excalidraw/dist/index.js"],
      "enabled": true,
      "environment": {
        "EXPRESS_SERVER_URL": "http://localhost:3000",
        "ENABLE_CANVAS_SYNC": "true"
      }
    }
  }
}

Docker

{
  "$schema": "https://opencode.ai/config.json",
  "mcp": {
    "excalidraw": {
      "type": "local",
      "command": ["docker", "run", "-i", "--rm", "-e", "EXPRESS_SERVER_URL=http://host.docker.internal:3000", "-e", "ENABLE_CANVAS_SYNC=true", "ghcr.io/yctimlin/mcp_excalidraw:latest"],
      "enabled": true
    }
  }
}

Antigravity (Google)

Config location: ~/.gemini/antigravity/mcp_config.json

Local (node)

{
  "mcpServers": {
    "excalidraw": {
      "command": "node",
      "args": ["/absolute/path/to/mcp_excalidraw/dist/index.js"],
      "env": {
        "EXPRESS_SERVER_URL": "http://localhost:3000",
        "ENABLE_CANVAS_SYNC": "true"
      }
    }
  }
}

Docker

{
  "mcpServers": {
    "excalidraw": {
      "command": "docker",
      "args": [
        "run", "-i", "--rm",
        "-e", "EXPRESS_SERVER_URL=http://host.docker.internal:3000",
        "-e", "ENABLE_CANVAS_SYNC=true",
        "ghcr.io/yctimlin/mcp_excalidraw:latest"
      ]
    }
  }
}

Notes

Docker networking: Use host.docker.internal to reach the canvas server running on your host machine. On Linux, you may need --add-host=host.docker.internal:host-gateway or use 172.17.0.1.
Canvas server: Must be running before the MCP server connects. Start it with npm run canvas (local) or docker run -d -p 3000:3000 ghcr.io/yctimlin/mcp_excalidraw-canvas:latest (Docker).
Absolute paths: When using local node setup, replace /absolute/path/to/mcp_excalidraw with the actual path where you cloned and built the repo.
In-memory storage: The canvas server stores elements in memory. Restarting the server will clear all elements. Use the export/import scripts if you need persistence.

Agent Skill (Optional)

This repo includes a skill at skills/excalidraw-skill/ that provides:

Workflow playbook (SKILL.md): step-by-step guidance for drawing, refining, and exporting diagrams
Cheatsheet (references/cheatsheet.md): MCP tool and REST API reference
Helper scripts (scripts/*.cjs): export, import, clear, healthcheck, CRUD operations

The skill complements the MCP server by giving your AI agent structured workflows to follow.

Install The Skill (Codex CLI example)

mkdir -p ~/.codex/skills
cp -R skills/excalidraw-skill ~/.codex/skills/excalidraw-skill

To update an existing installation, remove the old folder first (rm -rf ~/.codex/skills/excalidraw-skill) then re-copy.

Install The Skill (Claude Code)

User-level (available across all your projects):

mkdir -p ~/.claude/skills
cp -R skills/excalidraw-skill ~/.claude/skills/excalidraw-skill

Project-level (scoped to a specific project, can be committed to the repo):

mkdir -p /path/to/your/project/.claude/skills
cp -R skills/excalidraw-skill /path/to/your/project/.claude/skills/excalidraw-skill

Then invoke the skill in Claude Code with /excalidraw-skill.

To update an existing installation, remove the old folder first then re-copy.

Use The Skill Scripts

All scripts respect EXPRESS_SERVER_URL (default http://localhost:3000) or accept --url.

EXPRESS_SERVER_URL=http://127.0.0.1:3000 node skills/excalidraw-skill/scripts/healthcheck.cjs
EXPRESS_SERVER_URL=http://127.0.0.1:3000 node skills/excalidraw-skill/scripts/export-elements.cjs --out diagram.elements.json
EXPRESS_SERVER_URL=http://127.0.0.1:3000 node skills/excalidraw-skill/scripts/import-elements.cjs --in diagram.elements.json --mode batch

When The Skill Is Useful

Repository workflow: export elements as JSON, commit it, and re-import later.
Reliable refactors: clear + re-import in sync mode to make canvas match a file.
Automated smoke tests: create/update/delete a known element to validate a deployment.
Repeatable diagrams: keep a library of element JSON snippets and import them.

See skills/excalidraw-skill/SKILL.md and skills/excalidraw-skill/references/cheatsheet.md.

MCP Tools (26 Total)

Category	Tools
Element CRUD	`create_element`, `get_element`, `update_element`, `delete_element`, `query_elements`, `batch_create_elements`, `duplicate_elements`
Layout	`align_elements`, `distribute_elements`, `group_elements`, `ungroup_elements`, `lock_elements`, `unlock_elements`
Scene Awareness	`describe_scene`, `get_canvas_screenshot`
File I/O	`export_scene`, `import_scene`, `export_to_image`, `export_to_excalidraw_url`, `create_from_mermaid`
State Management	`clear_canvas`, `snapshot_scene`, `restore_snapshot`
Viewport	`set_viewport`
Design Guide	`read_diagram_guide`
Resources	`get_resource`

Full schemas are discoverable via tools/list or in skills/excalidraw-skill/references/cheatsheet.md.

Testing

Canvas Smoke Test (HTTP)

curl http://localhost:3000/health

MCP Smoke Test (MCP Inspector)

List tools:

npx @modelcontextprotocol/inspector --cli \
  -e EXPRESS_SERVER_URL=http://localhost:3000 \
  -e ENABLE_CANVAS_SYNC=true -- \
  node dist/index.js --method tools/list

Create a rectangle:

npx @modelcontextprotocol/inspector --cli \
  -e EXPRESS_SERVER_URL=http://localhost:3000 \
  -e ENABLE_CANVAS_SYNC=true -- \
  node dist/index.js --method tools/call --tool-name create_element \
  --tool-arg type=rectangle --tool-arg x=100 --tool-arg y=100 \
  --tool-arg width=300 --tool-arg height=200

Frontend Screenshots (agent-browser)

If you use agent-browser for UI checks:

agent-browser install
agent-browser open http://127.0.0.1:3000
agent-browser wait --load networkidle
agent-browser screenshot /tmp/canvas.png

Troubleshooting

Canvas not updating: confirm EXPRESS_SERVER_URL points at the running canvas server.
Updates/deletes fail after batch creation: ensure you are on a build that includes the batch id preservation fix (merged via PR #34).

Known Issues / TODO

All previously listed bugs have been fixed in v2.0. Remaining items:

Persistent storage: Elements are stored in-memory — restarting the server clears everything. Use export_scene / snapshots as a workaround.
Image export requires a browser: export_to_image and get_canvas_screenshot rely on the frontend doing the actual rendering. The canvas UI must be open in a browser.

Contributions welcome!

Development

npm run type-check
npm run build

Как установить

Добавь это в claude_desktop_config.json и перезапусти Claude Desktop.

{
  "mcpServers": {
    "excalidraw-mcp-server": {
      "command": "npx",
      "args": []
    }
  }
}

Excalidraw Server

Описание

README

Demo

Table of Contents

What It Is

How We Differ from the Official Excalidraw MCP

What's New

v2.0 — Canvas Toolkit

v1.x

Quick Start (Local)

Quick Start (Docker)

Configure MCP Clients

Environment Variables

Claude Desktop

Claude Code

Cursor

Codex CLI

OpenCode

Antigravity (Google)

Notes

Agent Skill (Optional)

Install The Skill (Codex CLI example)

Install The Skill (Claude Code)

Use The Skill Scripts

When The Skill Is Useful

MCP Tools (26 Total)

Testing

Canvas Smoke Test (HTTP)

MCP Smoke Test (MCP Inspector)

Frontend Screenshots (agent-browser)

Troubleshooting

Known Issues / TODO

Development

Как установить

Похожие MCP

Figma

mcp-dockmaster

ariekogan/ateam-mcp

thinkchainai/mcpbundles

Command Palette

Excalidraw Server

Описание

README

Demo

Table of Contents

What It Is

How We Differ from the Official Excalidraw MCP

What's New

v2.0 — Canvas Toolkit

v1.x

Quick Start (Local)

Quick Start (Docker)

Configure MCP Clients

Environment Variables

Claude Desktop

Claude Code

Cursor

Codex CLI

OpenCode

Antigravity (Google)

Notes

Agent Skill (Optional)

Install The Skill (Codex CLI example)

Install The Skill (Claude Code)

Use The Skill Scripts

When The Skill Is Useful

MCP Tools (26 Total)

Testing

Canvas Smoke Test (HTTP)

MCP Smoke Test (MCP Inspector)

Frontend Screenshots (agent-browser)

Troubleshooting

Known Issues / TODO

Development

Как установить

Похожие MCP

Figma

mcp-dockmaster

ariekogan/ateam-mcp

thinkchainai/mcpbundles
