Infographic

MCP server for rendering infographics using @antv/infographic.

Usage Preview

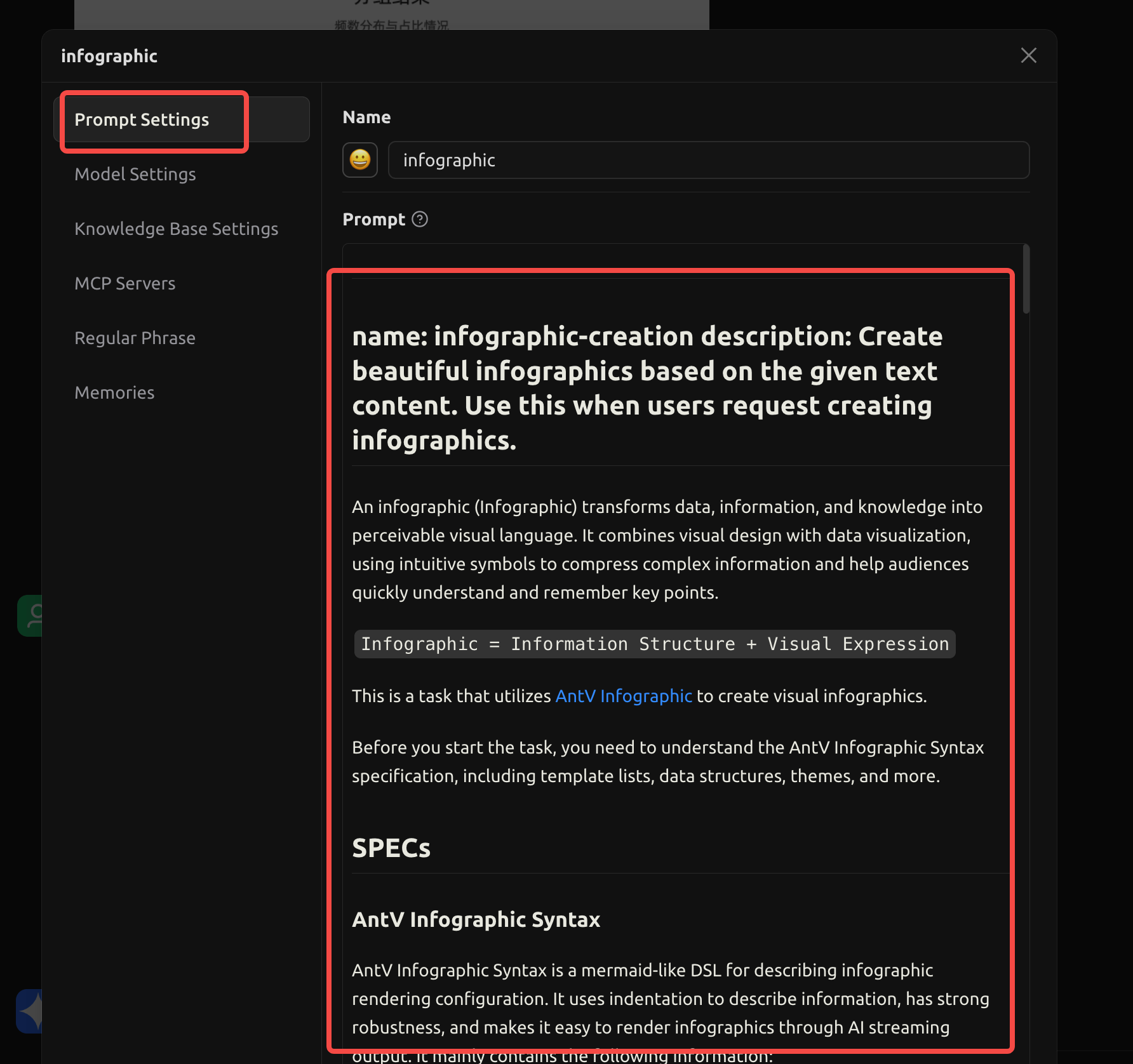

prompt example

Installation

npm install
npm run build

Quick Start

Stdio Mode (Default)

# Run directly
node dist/index.js

# Or with npx
npx .

HTTP Mode

node dist/index.js --http --port 3000

SSE Mode

node dist/index.js --sse --port 3000

Command Line Options

Option	Description	Default
--http	Use Streamable HTTP transport	-
--sse	Use SSE transport	-
--port <number>	Server port (for HTTP/SSE)	3000
--url=<url>	Return image URL instead of base64	-
--output=<dir>	Image output directory	./images
--token=<token>	API token for authentication	-

URL Mode Example

# Images saved to ./images/, return URL like http://localhost:3000/images/uuid.png
node dist/index.js --http --port 3000 --url=http://localhost:3000/images

# Custom output directory
node dist/index.js --http --port 3000 --url=http://example.com/img --output=./public/img

Authentication

# Enable token authentication
node dist/index.js --http --port 3000 --token=my-secret-token

Request with token:

# Via Authorization header (recommended)
curl -X POST http://localhost:3000/mcp \
  -H "Authorization: Bearer my-secret-token" \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0",...}'

# Via query parameter
curl "http://localhost:3000/sse?token=my-secret-token"

Note: Static image files (/images/*) are served without authentication.

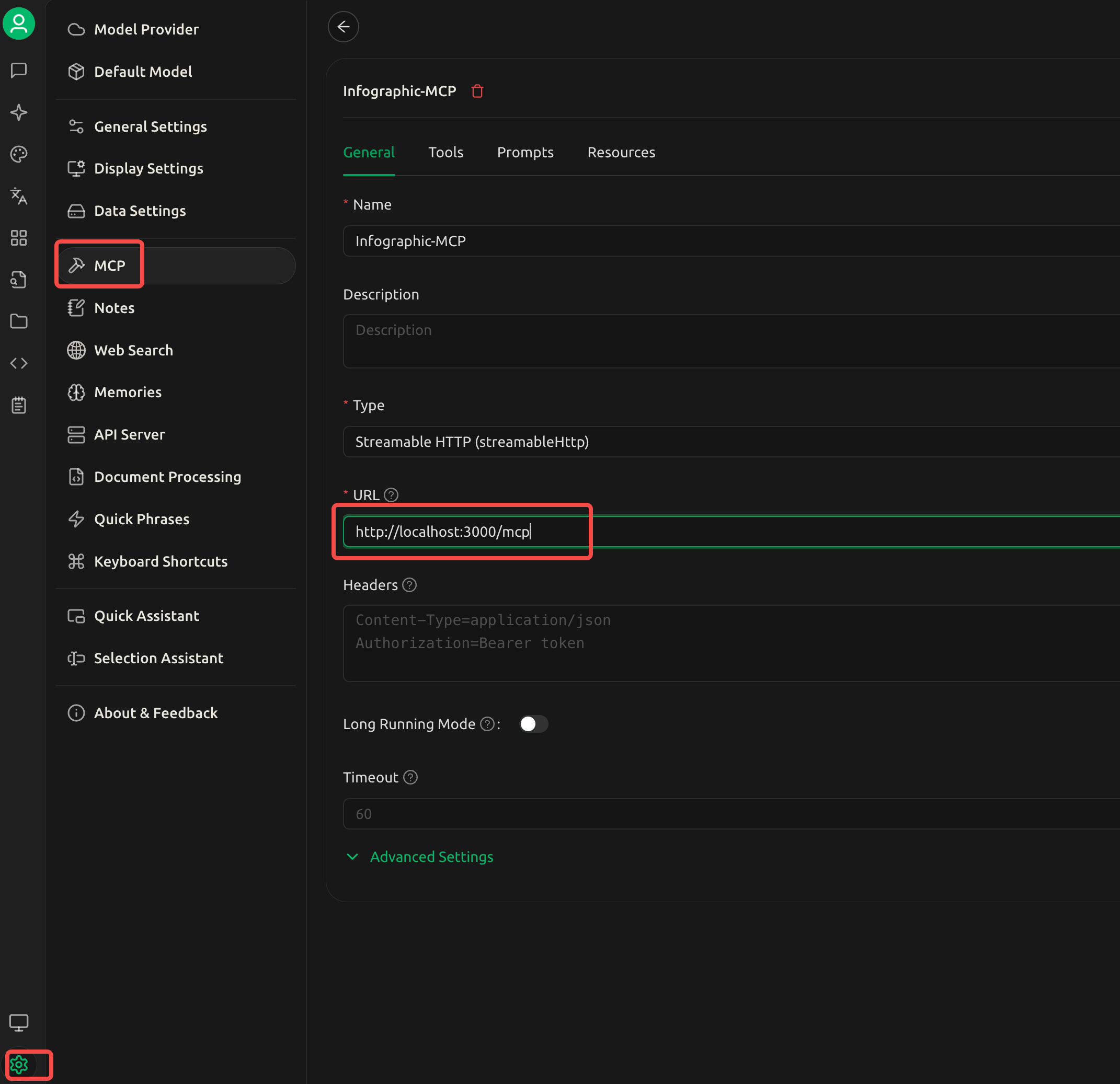

MCP Configuration

Cursor / Claude Desktop

{
  "mcpServers": {
    "infographic": {
      "command": "node",
      "args": ["/path/to/infographic-mcp/dist/index.js"]
    }
  }
}

With URL Mode

{
  "mcpServers": {
    "infographic": {
      "command": "node",
      "args": [
        "/path/to/infographic-mcp/dist/index.js",
        "--http",
        "--port", "3000",
        "--url=http://localhost:3000/images"
      ]
    }
  }
}

Using npx (after npm publish)

{
  "mcpServers": {
    "infographic": {
      "command": "npx",
      "args": ["infographic-mcp"]
    }
  }
}

Tool: render_infographic

Renders an infographic from DSL syntax and returns a PNG image.

Parameters

Parameter	Type	Required	Default	Description
syntax	string	Yes	-	Infographic DSL syntax string
width	number	No	800	Image width in pixels
height	number	No	600	Image height in pixels
background	string	No	"white"	Background color ("white", "#f5f5f5", "transparent")

Returns

• Default: PNG image as base64 (type: "image")
• With --url: Image URL as text (type: "text")

DSL Syntax

The DSL uses space-separated key-value format (NOT YAML colon format):

infographic <template-name>
data
  title My Title
  desc My Description
  items
    - label Item 1
      desc Description 1
      value 100
      icon mdi/icon-name
    - label Item 2
      desc Description 2
theme
  palette #3b82f6 #8b5cf6 #f97316

Example

infographic list-row-horizontal-icon-arrow
data
  title Product Launch Steps
  items
    - label Step 1
      desc Planning phase
      icon mdi/rocket-launch
    - label Step 2
      desc Development phase
      icon mdi/code-tags
    - label Step 3
      desc Launch phase
      icon mdi/flag-checkered

Available Templates

• list-row-horizontal-icon-arrow
• sequence-zigzag-steps-underline-text
• sequence-horizontal-zigzag-underline-text
• sequence-circular-simple
• compare-binary-horizontal-simple-fold
• quadrant-quarter-simple-card
• list-grid-badge-card
• chart-column-simple
• chart-bar-plain-text
• chart-pie-plain-text
• chart-pie-donut-plain-text
• hierarchy-tree-curved-line-rounded-rect-node
• And ~200 more templates

See AntV Infographic Gallery for all templates.

Docker

Docker Compose

docker-compose up -d

Build

docker build -t infographic-mcp .

Run

# Stdio mode
docker run -i --rm infographic-mcp

# HTTP mode
docker run -p 3000:3000 --rm infographic-mcp --http --port 3000

# HTTP mode with URL
docker run -p 3000:3000 --rm infographic-mcp --http --port 3000 --url=http://localhost:3000/images

MCP Config (Docker)

{
  "mcpServers": {
    "infographic": {
      "command": "docker",
      "args": ["run", "-i", "--rm", "infographic-mcp"]
    }
  }
}

Development

# Development mode (stdio)
npm run dev

# Development mode (HTTP)
npm run dev:http

# Development mode (SSE)
npm run dev:sse

# Run tests
npm test

# Build
npm run build

License

MIT
