Dcc Mcp Nuke

Agent workflow

AI agents should use the shared gateway through dcc-mcp-cli; IDE users may continue to use the MCP endpoint. Prefer typed skills and tools over raw scripts.

Install or update the CLI

dcc-mcp-cli is the preferred control path for every shell-capable agent. If it is missing, ask the user before installing the latest official release:

# Linux/macOS
curl -fsSL https://raw.githubusercontent.com/dcc-mcp/dcc-mcp-core/main/scripts/install-cli.sh | sh

# Windows PowerShell
powershell -ExecutionPolicy Bypass -c "irm https://raw.githubusercontent.com/dcc-mcp/dcc-mcp-core/main/scripts/install-cli.ps1 | iex"

Keep an official build current through the release manifest:

dcc-mcp-cli update check
dcc-mcp-cli update apply

update apply downloads and stages the latest CLI for the next launch. It does not update a running dcc-mcp-server; update that server in its own environment.

dcc-mcp-cli dcc-types
dcc-mcp-cli list
dcc-mcp-cli search --query "<task>" --dcc-type nuke
dcc-mcp-cli describe <tool-slug>
dcc-mcp-cli call <tool-slug> --json '{"key":"value"}'

dcc-types reports release-catalog support; list reports live sessions. If a tool belongs to an inactive progressive skill, call dcc-mcp-cli load-skill <skill-name> --dcc-type nuke before retrying. For post-task improvement, attach a stable session id with --meta-json, query dcc-mcp-cli stats --range 24h --session-id <task-id>, then pass the bounded evidence to the review_skill_improvement prompt from dcc-mcp-skills-creator.

Nuke adapter for the DCC Model Context Protocol. It embeds a Streamable HTTP MCP server in Nuke and uses Nuke's main-thread execution API for scene tools.

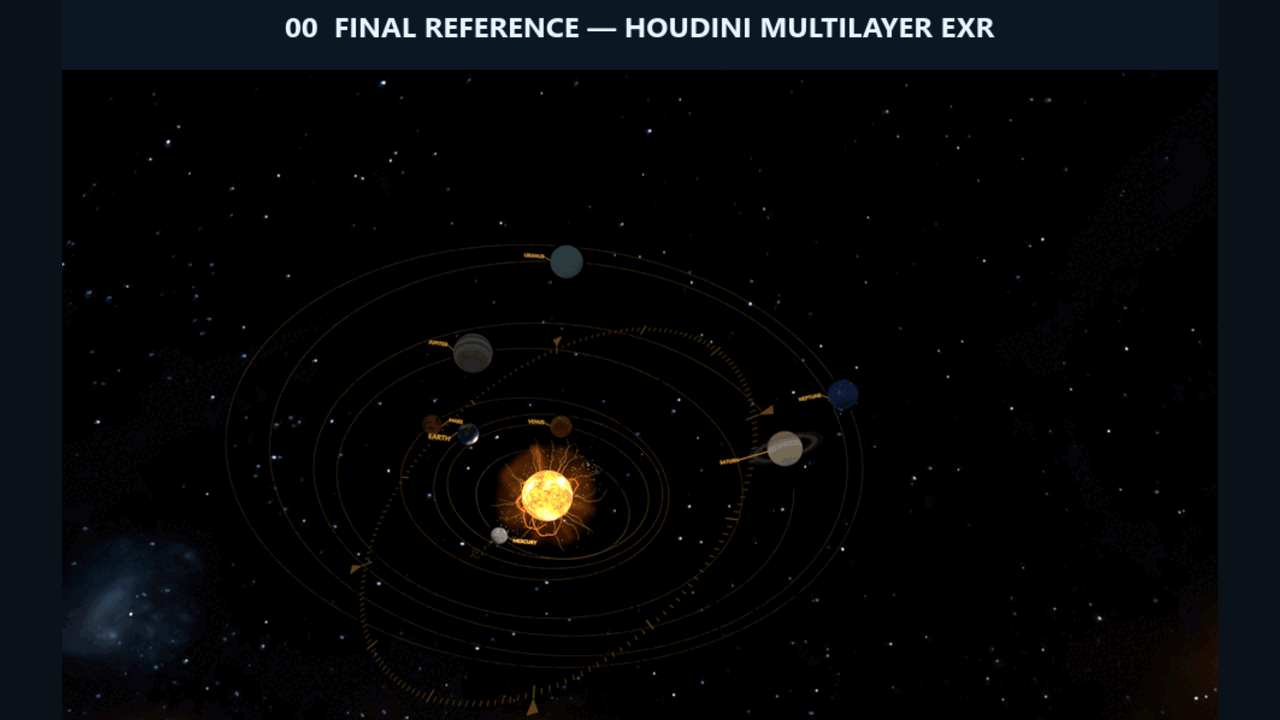

Automated Houdini AOV compositing

This real Nuke session progressively isolates Albedo, Sun, Diffuse, Glossy, and Emission passes, then merges them into the approved composite. The 35-layer, 114-channel EXR source was rendered from a solar-system scene built in Houdini with dcc-mcp-houdini; Nuke reads the Houdini AOVs rather than bundled sample footage.

python -m pip install dcc-mcp-nuke

Add the installed package's dcc_mcp_nuke/nuke_plugin folder to NUKE_PATH. Nuke loads its init.py and asks the operating system for an available instance port. Use dcc-mcp-cli list or the stable gateway at http://127.0.0.1:9765/mcp to discover and connect to the running instance. Set DCC_MCP_NUKE_PORT only when a fixed direct port is required.

The bundled nuke-script skill can open an existing absolute .nk path, inspect scripts and nodes, sample bounded per-channel AOV statistics, and explicitly save the current script. Releases are published through release.yaml and the GitHub pypi environment.

The nuke-node-assets skill packages reusable, versioned Gizmos with an explicit public knob interface, instantiates saved assets, and validates live instances. Its registered tools use DCC_MCP_NUKE_PLUGIN_ROOT, stable ids and versions, bounded typed knobs, and reject executable callbacks.

The nuke-layered-compositing skill supports ordered global and Cryptomatte-scoped gain, saturation, edge-feather, and bounded albedo-fill adjustments without changing pixels outside the selected material.
