Nks Usbshare

CI Release .NET NuGet packages

NKS UsbShare v1.0.0

Share USB devices between computers over an encrypted TCP link — on a LAN, across a VPN, or over the internet. A flash drive, a phone, a dongle: plug it into one machine, use it from another as though it were plugged in there.

Written in C# on .NET 9. The solution has no NuGet packages at all — the wire protocol, the descriptor parser, the SCSI and FAT32 readers, the MCP server, the AppKit and GTK bindings and the test runner are written here, on top of what the operating system already provides: WinUSB and SetupAPI on Windows, usbfs on Linux, IOKit on macOS, and the .NET TLS stack.

One thing cannot be written in user mode at all — the virtual USB controller that makes a remote device visible to every application on Windows. That is a kernel driver, and it has to be signed by someone Windows already trusts. The application fetches and installs it on its own the first time it is needed; see Dependencies.

Screenshots

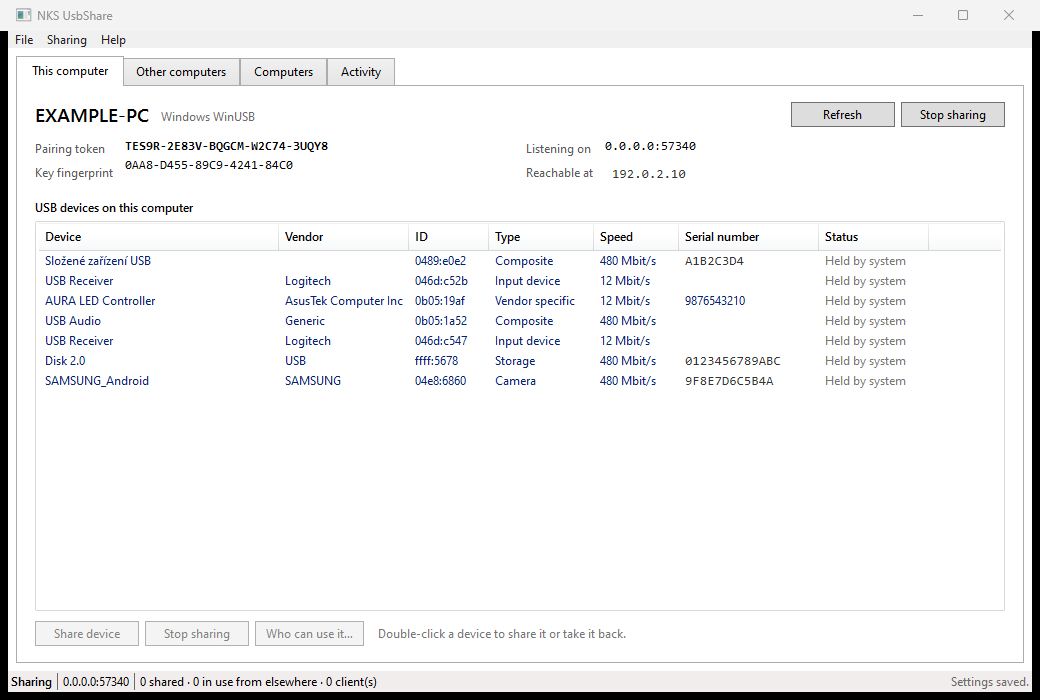

The computer a device is plugged into — everything attached, and what is shared:

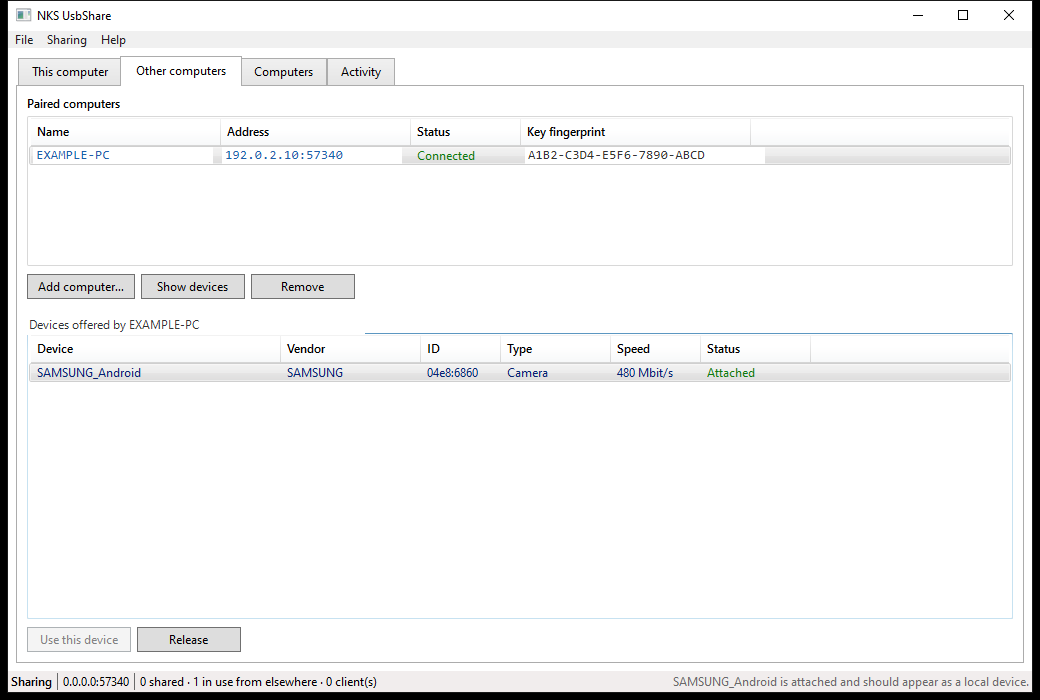

The computer using it — a phone attached across the network, listed as a local device:

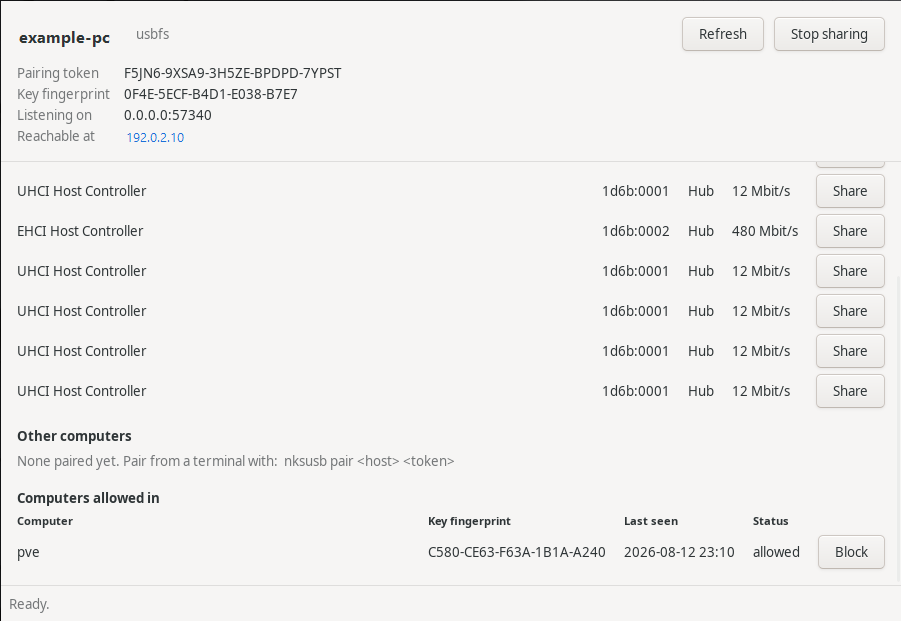

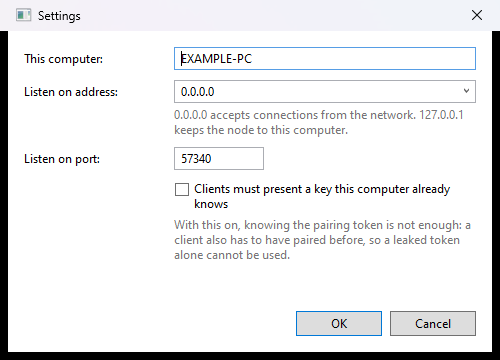

Settings	Linux

Every window shows the same thing in the same shape: identity and pairing details pinned at the top, then a table of devices with a button per row, then the computers allowed in.

What works today

	Windows	Linux	macOS
Enumerate local USB devices	verified	verified	verified
Share a device (export)	verified	verified	implemented
Claim a device from its class driver	verified	n/a	n/a
Use a remote device from an application	verified	verified	verified
Present a remote device to the whole OS	verified	verified	not possible today
Native application window	WPF, verified	GTK, verified	AppKit, verified
Command line	verified	verified	verified
Per-device access lists and blocking	verified	verified	implemented

"Verified" means it was exercised against real hardware; "implemented" means the code is complete but has not yet been run on that platform.

The Windows export path was checked end to end: a USB flash drive plugged into one machine was claimed from its class driver, shared, and then read from a Windows 11 virtual machine on another host across a VPN. The virtual machine pulled the device and configuration descriptors straight off the hardware — mass storage, class 08/06/50, two 512 byte bulk endpoints — proving real transfers cross the encrypted link rather than cached metadata.

nksusb probe 192.0.2.10 'USB\VID_FFFF&PID_5678\0123456789ABC'

  Disk 2.0  (ffff:5678)
  device descriptor (18 bytes)
    1201000200000040FFFF7856000201020301
    usb 2.00   vendor ffff   product 5678   class 00   max packet 64
  configuration descriptor, 32 bytes total
    interface 0 alt 0  class 08/06/50
      endpoint 0x01  Bulk        512 bytes
      endpoint 0x82  Bulk        512 bytes

The import path was then checked the same way. With a virtual controller installed, nksusb attach handed the same flash drive to the virtual machine's own USB stack: Windows enumerated it, bound its ordinary mass storage driver, and mounted the filesystem as a removable drive. Files written from the virtual machine landed on the physical device, and a two megabyte round trip came back byte for byte identical.

Architecture

   machine A (host)                              machine B (client)
   +-----------------------+                     +-----------------------+
   | USB device            |                     | application           |
   |   |  WinUSB / usbfs   |                     |   ^  RemoteUsbDevice  |
   |   v                   |   TLS 1.3, port     |   |                   |
   | NodeService           |                     | NodeService           |
   |   HostServer  --------+------  57340  ------+-> UsbShareClient      |
   +-----------------------+                     +-----------------------+

Transfers cross the link as URBs: the client submits a request describing an endpoint, a transfer type and a payload; the host issues it through the operating system and sends back the result. Control, bulk and interrupt transfers are carried; isochronous is carried by the protocol and implemented on the Linux backend.

Components

Component	Runtime	Description
NksUsbShare.Core	.NET 9	Wire protocol, TLS, USB backends, host and client engines
NksUsbShare.Cli	.NET 9	nksusb — the whole feature set from a terminal, all platforms
NksUsbShare.Desktop	.NET 9 (WPF)	Windows application
NksUsbShare.Gtk	.NET 9 (GTK 3)	Linux application, plain P/Invoke
NksUsbShare.Mac	.NET 9 (AppKit)	macOS application, on the Objective-C runtime
NksUsbShare.Mcp	.NET 9	Management server speaking the Model Context Protocol

Security

Layer	Technology	Scope
Transport	TLS 1.3 (TLS 1.2 floor)	Every connection, before a single protocol byte
Host identity	Self-signed P-384, pinned on first use	Client refuses a host whose key changed
Client identity	Self-signed P-384, always presented	Host names, blocks and restricts by key
Admission	125-bit pairing token, constant-time compare	Every connection
Per device	Allow list of client fingerprints	Listing and opening

• Public-key pinning. Each node generates its certificate on first run. A client pins the host's fingerprint the first time it connects and refuses to continue if it ever changes. There is no certificate authority, because there is no third party in the link.
• Pairing tokens. 125 bits of entropy, shown in groups of five characters with the ambiguous ones removed so they can be read aloud.
• Every client is named. A client always presents its own key, so the host records which computers have used it and can tell them apart. Nothing has to be turned on for this.
• Blocking. A computer can be refused outright. It is disconnected at once and anything it was holding is released, so blocking does not wait for it to come back.
• Optional mutual TLS, where a client must present a key the host already knows before the handshake completes at all.

Quick start

Desktop application

Windows — dotnet build src/NksUsbShare.Desktop, then run NksUsbShare.exe.

macOS — dotnet publish src/NksUsbShare.Mac -r osx-arm64 --self-contained. Put the binary in a .app bundle so LaunchServices treats it as a normal application.

Linux — dotnet publish src/NksUsbShare.Gtk -r linux-x64 --self-contained, then run nksusb-gtk. On a machine with no display it says so and exits rather than failing obscurely.

All of them accept --home <dir> like the terminal application, so a second node can be run beside the real one without disturbing its settings.

Command line (all platforms)

dotnet build src/NksUsbShare.Cli

nksusb list                          # local devices and what is shared
nksusb share 3                       # share the third device, claiming it from Windows if needed
nksusb giveback                      # return every claimed device to its original driver
nksusb serve                         # run the node until interrupted

nksusb pair 192.0.2.10 ABCDE-FGHIJ-KLMNO-PQRST-UVWXY
nksusb remote 192.0.2.10             # what that host offers
nksusb import 192.0.2.10 <device-id> # hold a device until interrupted
nksusb attach 192.0.2.10 <device-id> # hand it to this machine's USB stack
nksusb storage 192.0.2.10 <device-id># read a remote disk directly, without a driver

nksusb clients                       # computers that have connected here
nksusb access 3 anyone               # offer the third device to any paired computer
nksusb access 3 laptop workshop      # or only to those two
nksusb block laptop                  # refuse a computer even with the right token

A computer can be named by its name or by any unambiguous part of its key fingerprint. These commands write the settings file, so a node that is already running picks them up when it restarts; the windowed applications change their own running node straight away.

Settings live in %APPDATA%\nks-usbshare or ~/.config/nks-usbshare, overridable with NKS_USBSHARE_HOME or --home.

MCP server

{
  "mcpServers": {
    "nks-usbshare": {
      "type": "stdio",
      "command": "<path-to>/nksusb-mcp"
    }
  }
}

Tool	Description
node_info	Identity, platform, pairing token and listening address
list_local_devices	Local USB devices and whether each one is shared
share_device / unshare_device	Offer a device, optionally claiming it first
release_claimed_devices	Give every claimed device back to its original driver
list_clients	Computers that have connected to this node
set_client_blocked	Refuse or re-admit a computer
set_device_access	Choose which computers may use a shared device
list_hosts / pair_host / forget_host	Manage paired computers
list_remote_devices	What another computer offers
import_device / release_device / list_imports	Hold and release remote devices
recent_activity	The node's activity log

The driver question

Two rows in the table above are blocked on the same fact: only kernel-mode code can take a USB device away from its class driver, or present a virtual one. This is not an implementation gap that more user-mode code can close.

Sharing on Windows requires the device to be bound to the in-box winusb.sys instead of its class driver. The applications do this themselves — sharing a device Windows is holding asks for administrator approval once and then hands it over. Nothing has to be installed for that: a self-signed code-signing certificate, a generated INF and a signed catalog are all produced with tooling that ships with Windows, and Secure Boot stays on, because winusb.sys is already signed by Microsoft and only the small package pointing at it has to be trusted.

nksusb share 7          # claims the device from Windows first if it has to
nksusb giveback         # returns every claimed device to its original driver

In the desktop application the button reads Claim and share, and Sharing → Give devices back undoes it. Both run the application again with administrator rights — there is no script and no interpreter in the way; the driver work is the application's own code.

Two details are worth knowing, because both took real hardware to find:

• A manufacturer's driver that is WHQL signed outranks this package no matter what the INF says, because Windows weighs the signature before it weighs how well the hardware id matched. A phone therefore stays on its vendor driver until the choice is forced, which is a documented call rather than a trick.
• Windows often records the new driver and leaves the old device stack standing until the device disappears and comes back. On a composite device such as a phone the old interface nodes keep holding the interfaces and nothing can open it. Restarting the node, restarting the hub and disabling the device are all refused while the machine has a pending reboot, so the claim ends by cycling the device's hub port — a replug performed in software, which goes through anyway.

While a device is shared it stops working as its normal self: a flash drive disappears from Explorer, a keyboard stops typing. That is what sharing a USB device means on every product that does this, and giving it back restores the original driver.

Using a remote device as though it were plugged in locally needs a virtual USB host controller. Only kernel-mode code can create one, so this is the single piece the project does not provide itself. What it provides instead is everything around it: nksusb attach imports the device, publishes it on a plain USB/IP endpoint bound to loopback only, and lets the machine's own controller attach to that. The network hop is still carried by the encrypted link — the plaintext protocol never leaves the machine.

Which controller answers depends on the platform:

• Linux already has one in the kernel, vhci_hcd. Nothing has to be written, installed or signed.
• Windows has no in-box virtual device. It ships the framework to build one — UdeCx, the USB Device Emulation class extension — but a KMDF client driver still has to be written and signed. Rather than duplicate that, the controller from usbip-win2 is used, and the application installs it itself the first time a device is attached. Nothing has to be downloaded or set up beforehand.
• macOS cannot do this at all today. DriverKit deliberately drives real hardware only — USBDriverKit matches on the vendor and product id of a device that is physically present, and Apple applies the same policy elsewhere, explicitly refusing AudioDriverKit for virtual audio devices. The one class Apple does permit to be invented is HID, through HIDDriverKit's virtual device entitlement. Everything else means a kernel extension, which on Apple Silicon requires the user to drop Startup Security to "Reduced Security" from Recovery. Every commercial product in this space still ships a kext on macOS for the same reason.

On macOS, where no virtual device can be created at all, a remote device is still reachable through RemoteUsbDevice — real control, bulk and interrupt transfers from your own code — the operating system's driver stack simply does not see it. For storage that is enough to be useful: nksusb storage speaks SCSI over Bulk-Only Transport and reads the medium directly.

nksusb storage 192.0.2.10 'USB\VID_FFFF&PID_5678\0123456789ABC'

  SCSI inquiry     Generic Flash Disk rev 2.00
  capacity         31,334,400 blocks of 512 bytes (14.94 GB)
  partition        type 0x0c, 31,332,288 blocks from 2,048
  volume label     EXAMPLE

  root directory   3 entries
    <dir> System Volume Information            2026-05-13 19:42
          example-note.txt                             80  2026-08-12 23:01
          example-2mb.bin                       2,097,152  2026-08-12 23:01

That listing was produced on a Mac, from a flash drive plugged into a Windows machine.

A driver is only unavoidable for arbitrary devices. Storage, printers and scanners each have a network protocol both operating systems already speak — iSCSI, IPP, and eSCL — so those three classes could be carried with no kernel component anywhere.

Dependencies

In the build: none. There is no NuGet package anywhere in the solution, and none in the test project either. The wire protocol, the JSON-RPC of the MCP server, the descriptor parser, the SCSI layer, the FAT32 reader, the AppKit and GTK bindings and the test runner are all written here.

At runtime on Windows: one driver, installed for you. Handing a remote device to the whole operating system needs a virtual USB controller, and only kernel-mode code can provide one. The controller comes from usbip-win2 (BSD-2-Clause), whose drivers carry a Microsoft Windows Hardware Compatibility Publisher signature and therefore install on stock Windows with Secure Boot left on.

Nobody has to go and find it. The first time a device is attached, the application:

1. asks the controller's own tool whether it is there and working — the file being on disk is not the same thing, because an uninstall can take the driver and leave the files;
2. downloads the pinned release (0.9.7.8) if it is not;
3. checks it against a pinned SHA-256 and refuses to run a file that does not match;
4. installs it silently, and
5. restarts any USB controllers Windows parked while installing, so nothing on the machine — a keyboard, a mouse — is left dead waiting for a reboot.

Windows asks for administrator consent once, for the driver installation. That prompt is the only part that cannot be taken off the user, and there is no way around it for any product that installs a driver.

Linux needs none of this: vhci_hcd is already in the kernel and is driven straight through sysfs. macOS cannot host a virtual USB device at all, with or without a third-party driver.

Build

dotnet build NksUsbShare.sln
dotnet run --project tests/NksUsbShare.Tests

# self-contained binaries
dotnet publish src/NksUsbShare.Cli -c Release -r win-x64  --self-contained -p:PublishSingleFile=true
dotnet publish src/NksUsbShare.Cli -c Release -r linux-x64 --self-contained -p:PublishSingleFile=true
dotnet publish src/NksUsbShare.Cli -c Release -r osx-arm64 --self-contained -p:PublishSingleFile=true

No test framework is used, for the same reason nothing else is: tests are plain methods, failures are exceptions, and the exit code is what matters. The suite covers the wire protocol, descriptor parsing, the TLS and pairing layer, per-device access lists, blocking, and a full host-to-client round trip over a real socket. Tests that need hardware skip themselves when there is none.

Project structure

NksUsbShare.sln
├── src/NksUsbShare.Core/
│   ├── Protocol/              the wire format: framing, messages, errors
│   ├── Security/              TLS, node identity, pairing tokens
│   ├── Host/                  the side a device is plugged into
│   ├── Client/                the side using it, incl. the controller setup
│   ├── Usb/Windows|Linux|Mac/ one backend per platform
│   └── Storage/               SCSI and FAT32, for reading a disk without a driver
├── src/NksUsbShare.Cli/       cross-platform command line
├── src/NksUsbShare.Desktop/   WPF application for Windows
├── src/NksUsbShare.Gtk/       GTK application for Linux
├── src/NksUsbShare.Mac/       AppKit application for macOS
├── src/NksUsbShare.Mcp/       Model Context Protocol server
├── tests/NksUsbShare.Tests/   test suite
└── .github/workflows/         CI + Release

The Windows claim is native, in Usb/Windows/: the device tree through cfgmgr32, the driver package built and its catalog signed through wintrust and mssign32, the install through setupapi and newdev, and the hub port cycle through a hub ioctl. It runs in an elevated copy of the same executable, because changing a driver needs administrator rights.

Contributing

1. Fork the repository
2. Create your feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'feat: description')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request
