wago-plc-mcp-server

Talk to your WAGO PLC fleet the way you'd talk to a colleague. Ask an AI assistant to read, configure, and monitor your controllers in plain English - no scripts, no parameter IDs to memorize.

---

Choose your path

I am a...	I want to...	Start here
Claude Desktop / Claude Code user	Connect my AI assistant to WAGO PLCs and start asking questions	Part 1 → Quick Start → What can I ask it?
Automation / OT engineer	Understand what this does to my PLCs and whether it's safe	Part 2 → What this does and doesn't do
Software / DevOps engineer	Deploy this in production with GitOps, TLS, and audit logging	Part 3 → Production deployment → GitOps write-gate

Each part is self-contained top to bottom - a Claude Desktop user never needs to read the GitOps internals, and a DevOps engineer never needs the chat examples. Reference at the end covers cross-cutting material (FAQ, raw curl access, CRA compliance) that applies regardless of persona.

---

Architecture

%%{init: {'theme':'base', 'themeVariables': {
  'primaryColor':'#1F2837',
  'primaryTextColor':'#ffffff',
  'primaryBorderColor':'#6EC800',
  'lineColor':'#6EC800',
  'secondaryColor':'#EFF0F1',
  'secondaryTextColor':'#1F2837',
  'secondaryBorderColor':'#A5A8AF',
  'tertiaryColor':'#FFFFFF',
  'tertiaryTextColor':'#1F2837',
  'tertiaryBorderColor':'#DEDFE1',
  'fontFamily':'Segoe UI, Helvetica, Arial, sans-serif',
  'clusterBkg':'#EFF0F1',
  'clusterBorder':'#A5A8AF',
  'edgeLabelBackground':'#1F2837'
}}}%%
flowchart TB
    subgraph Clients["AI clients (any MCP client works)"]
        direction LR
        CD("Claude Desktop<br/>(stdio, via wago_proxy.py)")
        CC("Claude Code<br/>(direct HTTP)")
        OC("OpenClaw<br/>(direct HTTP)")
    end

    CD & CC & OC -- "Bearer token" --> MCP

    subgraph Server["wago-plc-mcp-server - Docker, port 6042"]
        direction LR
        MCP("14 MCP tools<br/>find_parameters · get_parameter<br/>set_parameters · invoke_method<br/>create/read_watchlist · get_plc_audit_log · …")
        Guard("Bearer auth · rate limiting<br/>hash-chained audit log")
        MCP --- Guard
    end

    MCP --> FAN("WDA Bearer token + TLS<br/>parallel, semaphore-bounded<br/>fans out to every registered PLC")

    FAN --> P1 & P2 & P3 & P4 & P5 & P6 & Pn

    subgraph Fleet["WAGO PLC fleet"]
        direction LR
        P1("CC100")
        P2("PFC100 Gen 2")
        P3("PFC200 Gen 2")
        P4("PFC300")
        P5("Edge Controller")
        P6("WP400")
        Pn("TP600")
    end

Demoed end to end with 16 PLCs of mixed device class on a single rack. The parallel fan-out model has no architectural ceiling below 100+.

---

Part 1 - For Claude Desktop / Claude Code users

Everything to get connected and start asking questions in plain English.

Demo

These are short screen recordings of the server driving real WAGO controllers from Claude Desktop, start to finish - no edited-out steps.

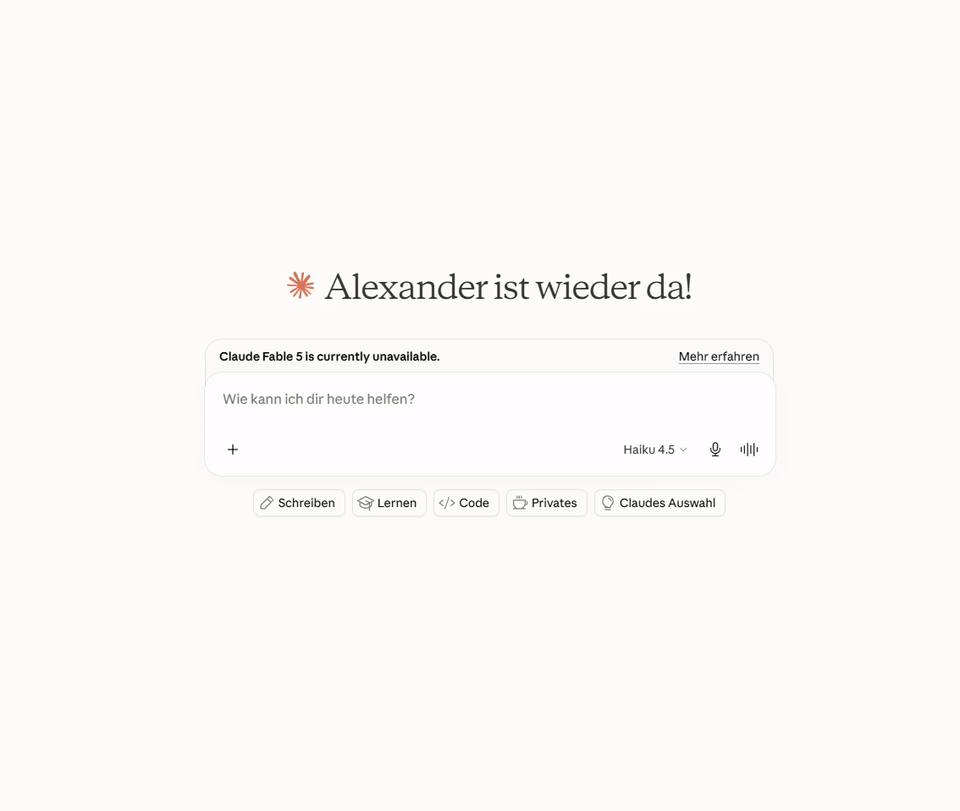

Overview - connecting Claude Desktop and a first interaction

Use case 1 - fleet-wide health report across all 16 PLCs

Asks the agent to reconcile a "health report" across the fleet - listing all PLCs, bulk-fetching firmware versions, and probing device types to figure out what's actually running where before trusting any conclusions.

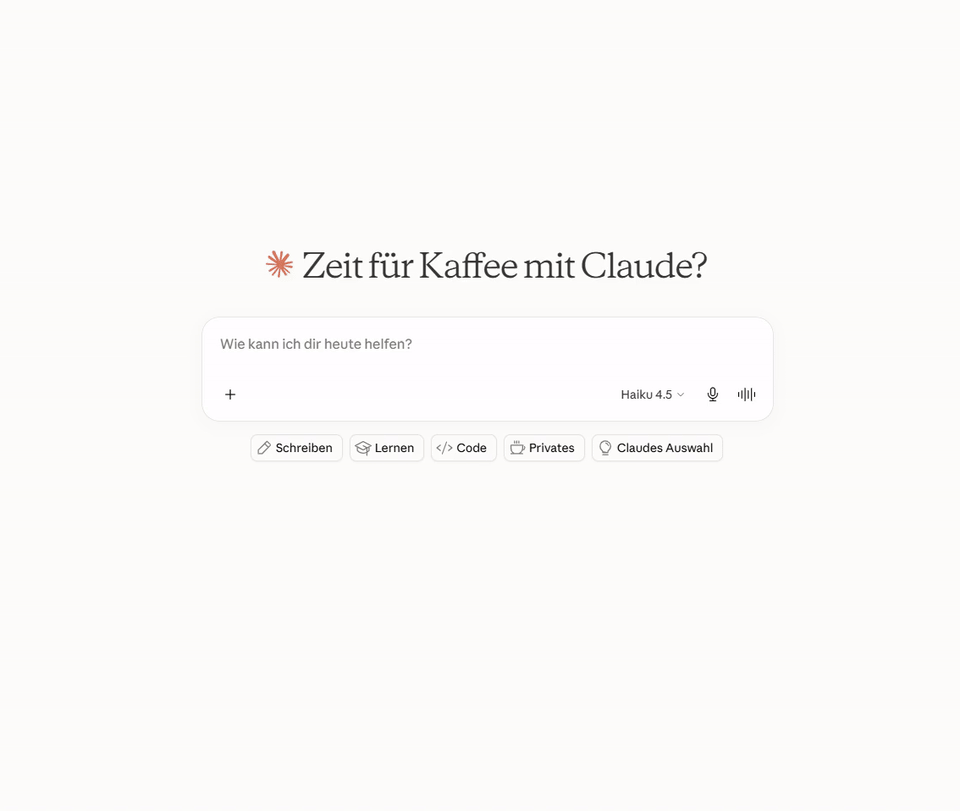

Use case 2 - Edge Controller: building a CPU/LED health watchlist

Asks the agent to set up a watchlist monitoring CPU/service health and LED diagnostic state on the Edge Controllers, then read it back - including the agent pushing back to clarify ambiguous requirements before touching anything, and discovering the actual parameter IDs via find_parameters rather than guessing.

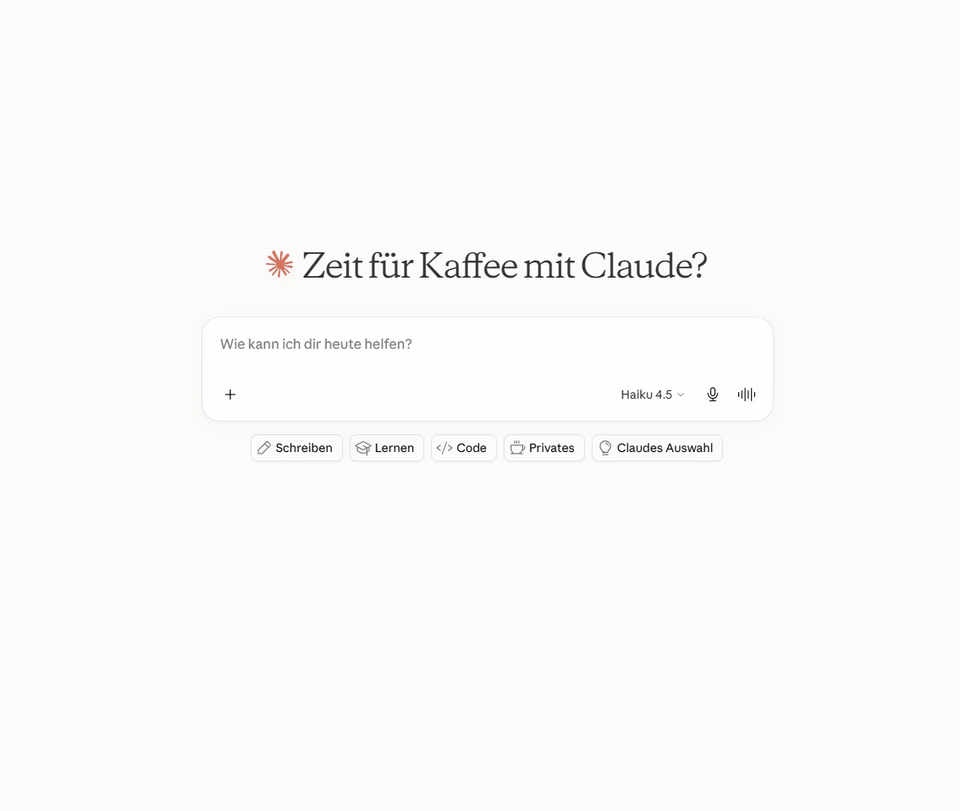

Use case 2 - PFC300: building a CPU/LED health watchlist

The same health-watchlist workflow as above, run against a PFC300 instead - shows the same parameter-discovery process landing on different actual parameter names for an equivalent capability.

Use case 3 - detecting and fixing NTP drift fleet-wide

Asks the agent to sync NTP time on any PLC that's drifted. The agent checks NTP status across the entire fleet first, identifies which PLCs are actually affected (stuck clocks, wrong timezone offsets), and only then invokes the time-sync method on the specific units that need it.

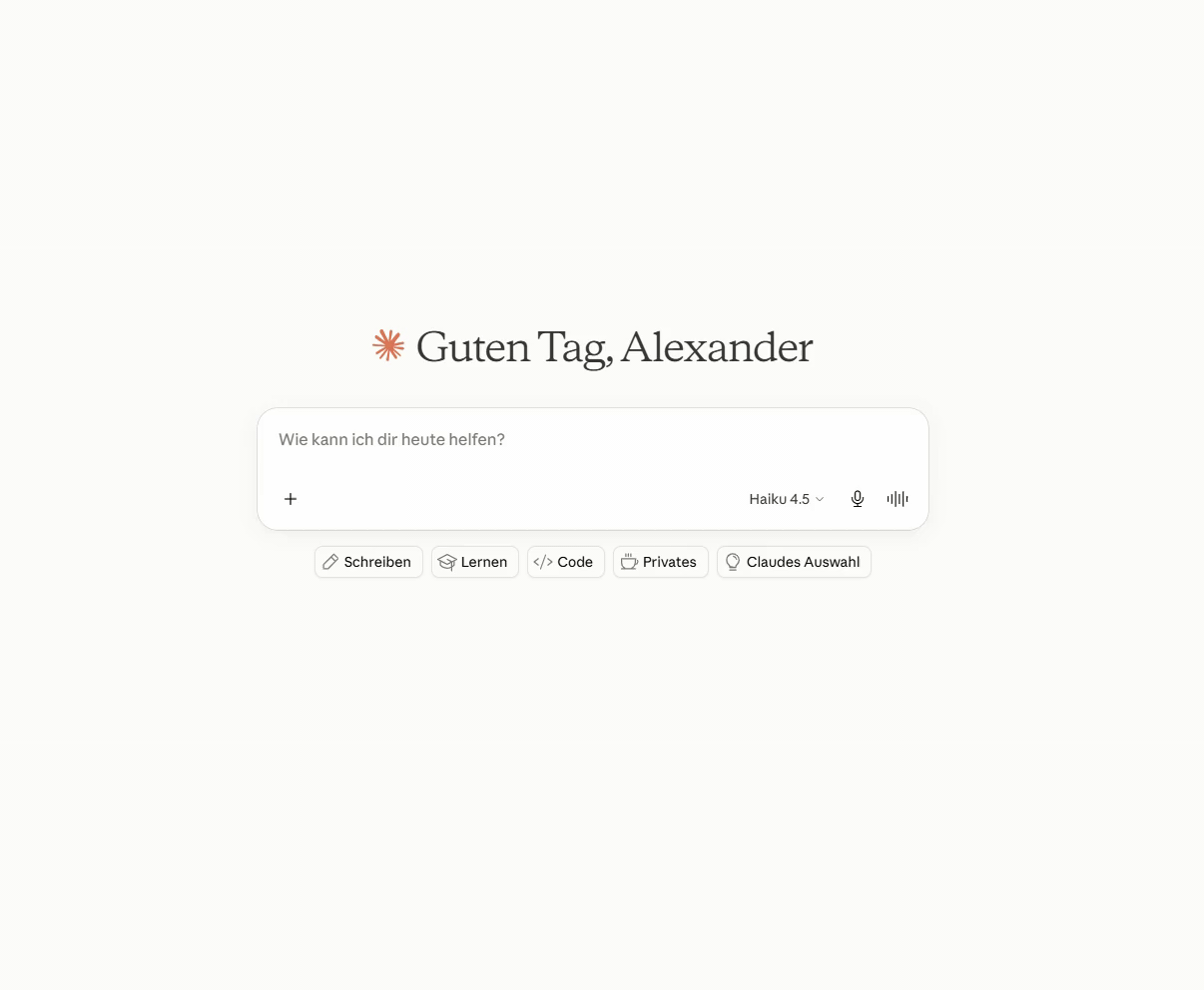

Use case 4 - which PLCs are reachable and what firmware are they running?

Asks the agent to sweep the entire fleet, check reachability, and report firmware versions - all in one shot. The agent calls list_plcs, then describe_plc in parallel across every registered controller, and returns a clean table of what's alive, what model it is, and which firmware build it carries.

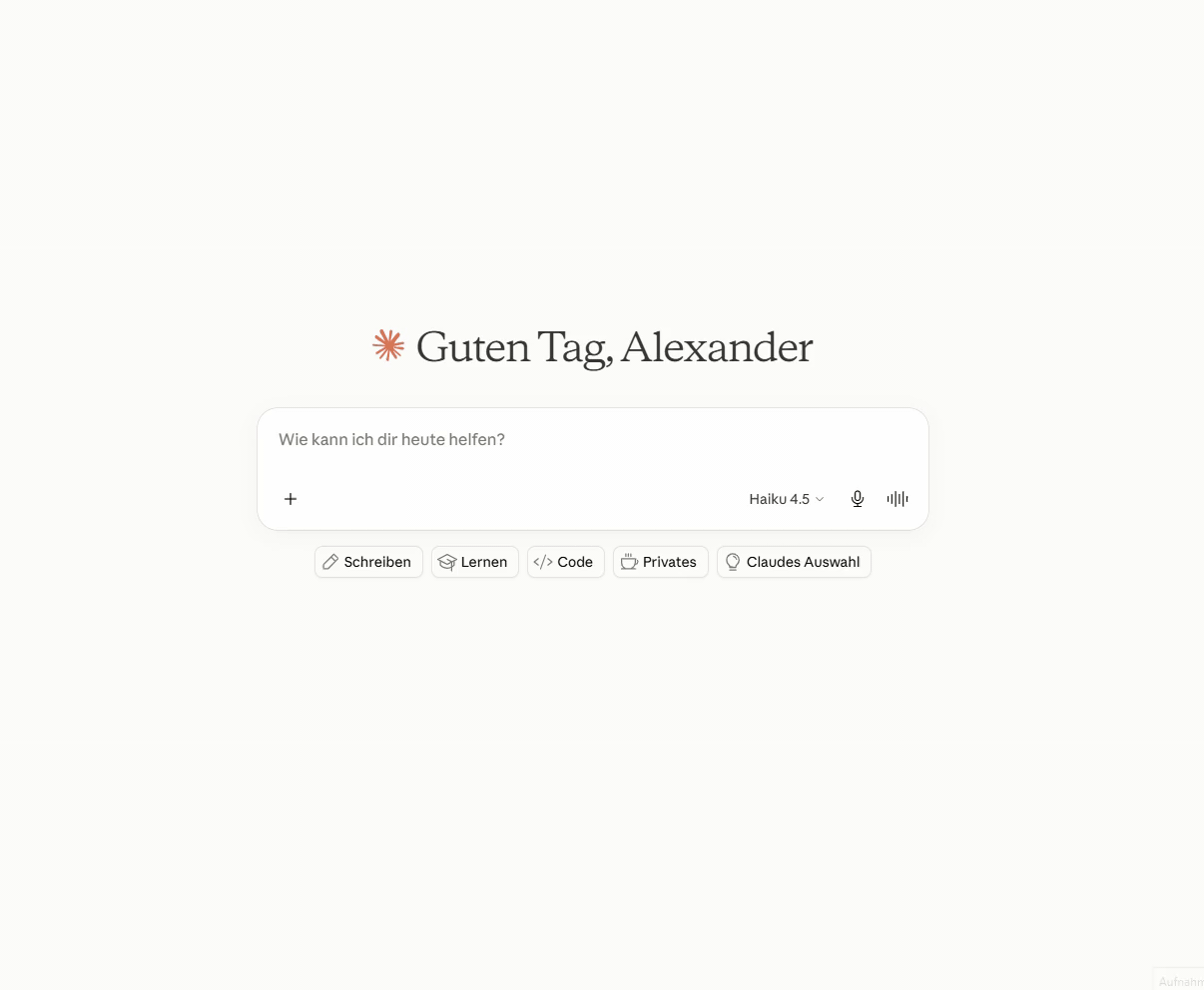

Use case 5 - which devices still have the default NTP server configured?

Asks the agent to audit NTP configuration across the fleet and flag any controller still pointing at the factory-default time server. The kind of compliance sweep that would otherwise require manual access to each device.

---

Quick Start

1. Clone and configure

git clone https://github.com/WagoAlex/wago-plc-mcp-server.git
cd wago-plc-mcp-server
cp _env .env

Edit .env:

WAGO_PLC_HOSTS=192.168.1.10,192.168.1.11,192.168.1.12
DEFAULT_PLC_USERNAME=admin
PORT=6042
WAGO_TIMEOUT_SECONDS=45

[!TIP] For large fleets, use WAGO_PLC_HOSTS_FILE=/app/data/fleet.txt - one IP per line, # comments supported. Both can be set together; IPs are merged.

2. Set the PLC password

mkdir -p secrets
echo "your-plc-password" > secrets/plc_default_password.txt
chmod 600 secrets/plc_default_password.txt

3. Start

docker compose up -d
docker logs wmcp -f

On first boot the server generates an API key and announces its fingerprint (the key itself is never written to container logs). Retrieve it with:

docker exec wmcp cat /app/data/mcp_api_key

[!TIP] Once you're past initial testing, provision the key as a Docker Secret instead (see API key management) - then retrieve it with cat secrets/mcp_api_key.txt directly on the host, no docker exec required.

════════════════════════════════════════════════════════════════════════
  NEW MCP API KEY GENERATED  (fingerprint: 7290f42b…)

  Stored in ./data/mcp_api_key - retrieve it with:
    docker exec wmcp cat /app/data/mcp_api_key

  .mcp.json:
    "headers": {"Authorization": "Bearer <key>"}

  Regenerate:  docker exec wmcp python src/mcp_keygen.py
════════════════════════════════════════════════════════════════════════

Registration: 3/3 ready
MCP server listening on http://0.0.0.0:6042/mcp (Streamable HTTP)

4. Connect your AI client

Claude Code (one command):

claude mcp add --transport http --header "Authorization: Bearer <key>" wago-plc http://localhost:6042/mcp

Claude Desktop - add to %APPDATA%\Claude\claude_desktop_config.json:

{
  "mcpServers": {
    "wago-plc": {
      "type": "http",
      "url": "http://localhost:6042/mcp",
      "headers": { "Authorization": "Bearer <your-api-key>" }
    }
  }
}

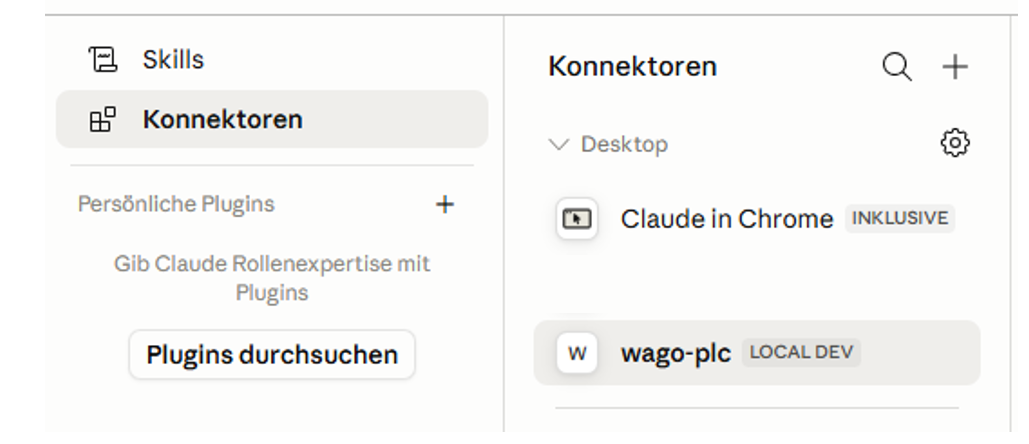

Fully quit and relaunch Claude Desktop. You should see a hammer icon with 14 tools:

5. Install the WAGO skill (recommended)

The bundled skill teaches the assistant the WAGO parameter names, how to operate safely, and how the tools actually behave. It's the difference between a vague answer and one that lands on the right parameter first try.

mkdir -p ~/.claude/skills
cp -r wago-plc-skill ~/.claude/skills/

---

What can I ask it?

You don't need to know any parameter IDs or anything about the WDA API. Just ask for what you want; the assistant works out which tools to call and deals with the REST plumbing for you.

Fleet-wide checks

What you type	What happens
"Which PLCs are running firmware older than build 31?"	Reads firmware version from every controller in parallel and lists the ones behind
"Are NTP and Docker running on all Edge Controllers?"	Reads service running-flags across the fleet, highlights stopped services
"Show the diagnostic LED states on all PLCs"	Reads SYS, RUN, and fieldbus LED text strings from every unit
"Is any controller showing a fault or error state?"	Cross-checks LED strings and error parameters fleet-wide

Single-controller diagnostics

What you type	What happens
"What firmware version is running on 192.168.1.14?"	Reads the firmware version parameter
"List all network settings on Edge Controller .19"	Searches parameters by keyword, returns names + current values
"Is the CODESYS program loaded and running on PFC300 .22?"	Reads the CODESYS runtime state parameter
"What NTP server is configured on PLC .10?"	Reads NTP client configuration

Configuration changes and remote actions

What you type	What happens
"Set the NTP server to 192.168.0.1 on all PLCs in building A"	Writes NTP address after your confirmation; every write is recorded in the audit log
"Trigger an NTP time sync on the three controllers that showed clock drift"	Invokes the NTP sync action only on affected units
"Enable SSH on controller .14 for remote maintenance access"	Finds the SSH enable parameter and writes it after confirmation

Ongoing monitoring

What you type	What happens
"Set up a health monitor for the packaging line PLCs"	Creates a server-side watchlist combining LED states, service flags, and cloud status - one HTTP request per poll cycle
"Track the firmware update progress on all 12 PLCs"	Polls update status and progress across the fleet

[!NOTE] The assistant asks for confirmation before writing any value to a controller.

---

Part 2 - For automation / OT engineers

What this actually touches on your PLCs, in terms you already know, and exactly when a write or method call is allowed versus refused.

What this does and doesn't do

For automation and OT engineers

You know PLCs - TIA Portal, Studio 5000, EcoStruxure, ladder logic. Here's the 60-second translation.

What WDA/WDx is: Every WAGO controller exposes a REST API called WDA (WAGO Device Access) for system and diagnostic management - firmware version, network config, service health, status LEDs, reboot and firmware-update control. Think of it as the machine-readable equivalent of TIA Portal's Online & Diagnostics view or Studio 5000's Controller Properties - not a fieldbus, not OPC-UA, and not access to your control program's I/O data.

What MCP is: A standard protocol that lets an AI assistant call a fixed set of defined tools against a system, instead of you writing custom integration code for every request. This server turns the WDA REST API into 14 tools an AI assistant can call directly.

Term	Plain meaning	Closest thing you already know
WDA / WDx	WAGO's REST API for system/diagnostic management	TIA Portal Online & Diagnostics, Studio 5000 Controller Properties
MCP	Protocol letting an AI assistant call a fixed set of "tools"	A structured API contract invoked by an LLM instead of your own code
Parameter	A single named system value (firmware version, LED state, service flag)	A diagnostic/status tag - not a control-program I/O tag
Method	A remote action you can trigger (NTP sync, reboot, firmware update)	An RPC / "execute" command, similar to an online action in TIA/Studio 5000
Watchlist	A server-side list of parameters the PLC keeps open for cheap repeated reads	Closest analog: a Watch Table (TIA) or Trend window (Studio 5000) - polled by an agent

[!IMPORTANT] What this does NOT do:

• It is WAGO-only - no Siemens S7, Rockwell Logix, or Schneider Modicon.
• It does not read or write your control program's I/O tags, real-time process values, or PLC memory. Field I/O still goes through OPC-UA, Modbus TCP, or WAGO I/O-Check.
• It is not an HMI/SCADA replacement - no graphical front end, just tool calls an AI assistant makes on your behalf.

What values can actually be monitored

WDA exposes the system management layer, not the real-time process image. What it does expose as live, poll-worthy values:

Category	Example parameters	Typical use
Service health	0-0-ntpclient-isrunning, 0-0-docker-isrunning, 0-0-ssh-isrunning, 0-0-openvpn-isrunning	Detect silently stopped services
LED & fault state	0-0-ledstates-1-diagnosticinformation (SYS), 0-0-ledstates-4-diagnosticinformation (RUN)	Mirror physical status LEDs; surface diagnostic text without physical access
Firmware update	0-0-firmwareupdate-status, 0-0-firmwareupdate-progress	Track OTA update progress across a fleet
CODESYS runtime	0-0-codesys3-applications	Confirm a PLC program is loaded and running
Cloud connectivity	0-0-cloudconnections-1-status-connected, 0-0-cloudconnections-1-status-filllevel	Monitor MQTT broker reachability and queue depth
System time	0-0-systemtime-now	Verify clock synchronisation after NTP updates

Supported hardware

Device	Article Numbers	Notes
CC100	751-9301 · 751-9401 · 751-9402 · 751-9403	Slow ARM CPU - set WAGO_TIMEOUT_SECONDS=45
PFC100 Gen 2	750-8110 · 750-8111 · 750-8112 · 750-8112/025-000
PFC200 Gen 2	750-8210 · 750-8211 · 750-8212 · 750-8216 · 750-8217
PFC300	750-8302
Edge Controller	752-8303/8000-0002	Exposes CODESYS runtime state via 0-0-plcruntime-*
WP400	762-34xx	Web panel only - 189 WDA params, no CODESYS. HMI params: display brightness/orientation/screensaver, integrated browser startpage, touch cleaning mode
TP600	762-42xx · 762-43xx · 762-52xx · 762-53xx · 762-62xx · 762-63xx	Full PLC+HMI - 410 WDA params. CODESYS3, BACnet, cloud, serial, all WP400 HMI params plus front LED and acoustic feedback

Requires firmware build ≥ 28 (FW28). Tested up to 04.09.01 (FW31).

---

How reads and writes work

Every operation an agent can perform falls into exactly one of three classes. These are mutually exclusive and cover everything the server can do - there is no fourth kind of action.

Class	Tools	Changes the PLC?
Read	list_plcs, describe_plc, find_parameters, get_parameter, get_parameters_bulk, find_methods, get_method, get_method_run, create_watchlist, read_watchlist, delete_watchlist, get_plc_audit_log	No
Write a parameter	set_parameters	Yes - changes a stored config value
Invoke a method	invoke_method	Yes - triggers an action (NTP sync, reboot, firmware update, ...)

Standard behavior (default config: live mode, no read-only hosts)

• Reads are always allowed. They have no side effects and are never gated.
• Parameter writes are allowed when the parameter is writeable. The server pre-checks writeability from its cache and refuses values the firmware marks read-only for that device/firmware, before any HTTP call reaches the PLC.
• Safe method calls are allowed. Anything that is not on the dangerous list below runs directly.
• Dangerous methods are denied. Method IDs whose segments start with reboot, restart, factory, firmware, or format are refused unless you explicitly allowlist the exact ID.

When a write or method call is allowed

The outcome is decided by three independent conditions. Read-only status takes precedence over everything else; otherwise the server mode decides.

Condition	Read	set_parameters	Safe invoke_method	Dangerous invoke_method
Read-only PLC (WAGO_READONLY_HOSTS or fleet # readonly) - any mode	Allowed	Refused	Refused	Refused
Live mode (GITOPS_MODE=0, default)	Allowed	Allowed if writeable	Allowed	Denied unless ID in WAGO_ALLOW_METHODS
GitOps mode (GITOPS_MODE=1)	Allowed	Returns a PR YAML fragment (no direct write)	Returns a PR YAML fragment	Returns a PR YAML flagged requires_human: CRITICAL; apply.py refuses to run it until a human sets approved_by

Read it top-down: if the PLC is read-only, stop there - nothing is written. If not, the active mode determines whether a write happens directly (live) or becomes a reviewed pull request (GitOps).

Every write and every method call - allowed, refused, or denied - is recorded in the tamper-evident audit log. For the rationale behind the dangerous-method and read-only gates, see Safety gates.

---

Part 3 - For software / DevOps engineers

Deploying this in production, wiring up GitOps, securing the endpoint, and the full tool/config reference.

Production deployment

Deployment options

Path	Best for	Requires
Docker	Plant server, shared multi-user fleet	Docker host on the OT network
Windows .exe	OT engineer laptop, air-gapped Windows	Nothing - zero dependencies
uvx / PyPI	Developer machine, any OS	uv installed
IDE	Cursor, VS Code + Copilot	uv installed
HTTP remote	ChatGPT, OpenAI API, n8n	Running server reachable over network

Config file examples for every path: deploy/configs/

---

Docker (recommended)

One server, many clients. PLCs register once at startup and stay connected.

cp _env .env          # edit PLC IPs, password, API key
docker compose up -d

Connect any client to http://<host>:6042/mcp with Authorization: Bearer <key>.

Large fleet - host file:

# data/fleet.txt
# Production floor A
192.168.1.10
192.168.1.11

# Production floor B
192.168.2.10
# 192.168.2.11   decommissioned

WAGO_PLC_HOSTS_FILE=/app/data/fleet.txt

Fleet changes require editing the file and restarting the container. The audit log persists across restarts on the ./data volume.

---

Windows .exe

Self-contained bundle - no Python, no package manager.

deploy\windows\build.bat        # build once on any Windows machine with Python 3.11+
deploy\windows\setup.bat        # configure .env and get the Claude Desktop JSON snippet

%APPDATA%\Claude\claude_desktop_config.json:

{
  "mcpServers": {
    "wago-plc": {
      "command": "C:\\wago-mcp\\wago-proxy.exe",
      "env": {
        "WAGO_MCP_URL": "http://localhost:6042/mcp",
        "WAGO_MCP_API_KEY": "your-api-key"
      }
    }
  }
}

---

uvx / PyPI

Runs the full server locally in stdio mode - no Docker, no proxy, no persistent process. Starts fresh each Claude session (PLCs re-register on connect, adds a few seconds).

Requires: uv

%APPDATA%\Claude\claude_desktop_config.json:

{
  "mcpServers": {
    "wago-plc": {
      "command": "uvx",
      "args": ["wago-plc-mcp-server"],
      "env": {
        "TRANSPORT": "stdio",
        "WAGO_PLC_HOSTS": "192.168.1.10,192.168.1.11",
        "DEFAULT_PLC_USERNAME": "admin",
        "DEFAULT_PLC_PASSWORD": "wago",
        "WAGO_TIMEOUT_SECONDS": "45",
        "LOG_LEVEL": "WARNING"
      }
    }
  }
}

Prefer Docker for fleets > 20 PLCs to avoid per-session re-registration.

---

IDE (Cursor, VS Code)

Cursor - .cursor/mcp.json in the project root:

{
  "servers": {
    "wago-plc": {
      "command": "uvx",
      "args": ["wago-plc-mcp-server"],
      "env": {
        "TRANSPORT": "stdio",
        "WAGO_PLC_HOSTS": "192.168.1.10",
        "DEFAULT_PLC_USERNAME": "admin",
        "DEFAULT_PLC_PASSWORD": "wago"
      }
    }
  }
}

VS Code + Copilot - .vscode/mcp.json, same structure.

---

HTTP remote (ChatGPT API, n8n, OpenAI)

Any client that supports MCP over HTTP connects to http://<host>:6042/mcp with Authorization: Bearer <key>. For legacy SSE clients set TRANSPORT=sse in .env and point at /sse.

OpenAI Responses API:

response = client.responses.create(
    model="gpt-4o",
    tools=[{
        "type": "mcp",
        "server_url": "http://plc-gateway.plant.internal:6042/mcp",
        "server_label": "wago-plc",
        "headers": {"Authorization": "Bearer <your-api-key>"}
    }],
    input="List all PLCs and their firmware versions."
)

---

Skills - install the right one

Three skills ship with this repo - install the one that matches your use case:

Skill	For	Install
wago-plc-skill/SKILL.md	Claude Desktop / Claude Code end users - plain-English interaction, safety guidance, troubleshooting	cp -r wago-plc-skill ~/.claude/skills/
wago-plc-agent-skill/SKILL.md	Autonomous agents / pipelines - tool I/O contracts, error shapes, retry rules, watchlist lifecycle	cp -r wago-plc-agent-skill ~/.claude/skills/
wago-quickref/SKILL.md	Contributors to this repo - raw WDA HTTP behaviour, pagination encoding, payload shapes	cp -r wago-quickref ~/.claude/skills/wago-plc-mcp-server

---

GitOps write-gate

For production environments where every PLC configuration change needs a human-reviewed audit trail before it reaches hardware - an ArgoCD-style pattern applied to PLCs.

How it works

Agent proposes a config change
         │
         ▼ (GITOPS_MODE=1)
set_parameters / invoke_method returns YAML instead of writing
         │
         ▼
Agent commits YAML to wago-plc-config repo and opens a PR
         │
         ▼
Engineer reviews and approves the PR
         │
         ▼
CI runs: python scripts/apply.py plcs/192.168.1.10.yaml --execute
         │
         ▼
Live PLC updated - ops files self-delete on success

The CI step is a GitHub Actions workflow living in the config repo, not here - it decides dry-run vs. execute purely from the triggering event, never from a flag you set: a pull request always dry-runs (prints drift, touches nothing), and only a push to main (i.e. a merge) executes. It runs on a self-hosted runner because GitHub-hosted runners have no route to the PLC subnet, and it borrows scripts/apply.py from this repo via sparse-checkout on every run - a fix here is picked up there without a version bump. Full mechanics (trigger table, checkout steps, secrets, why contents: write is needed for the ops-file-cleanup commit): wago-plc-config README - How the GitHub Actions workflow works.

Enable

GITOPS_MODE=1   # intercept writes; return YAML fragments for PR
GITOPS_MODE=0   # default: write directly (still fully audit-logged)

# Only needed if your config repo isn't named/owned wago-plc-config -
# every returned YAML fragment's next_step points the agent at this repo.
WAGO_GITOPS_REPO=wago-plc-config

[!IMPORTANT] Without WAGO_GITOPS_REPO set correctly, the agent has no other way to know where to commit the YAML fragment - the repo name comes from this variable, not from any auto-discovery. If you fork or rename the config repo, set this or the returned next_step instructions will point at the wrong (or a nonexistent) repo.

Config YAML - two file types

plcs/<ip>.yaml - desired steady state

plc_ip: 192.168.1.10
managed_parameters:
  0-0-ntpclient-enabled: true
  0-0-ntpclient-configuredtimeservers:
    - 192.168.1.1
  0-0-snmp-enable: true
  0-0-snmp-communities-1-name: ops-team
  0-0-snmp-location: Building-A-Panel-3

apply.py reads the live PLC, diffs it against this file, and patches only parameters that have drifted. Idempotent - safe to run in CI on every merge.

ops/<id>.yaml - one-shot action (self-deletes on success)

id: b7d3e1f9
proposed_at: 2026-06-21T10:00:00+00:00
proposed_by: agent-claude-code
plc_ip: 192.168.1.10
action: invoke_method
method_id: 0-0-ntpclient-updatetime
arguments: {}

Apply manually

# Show what would change - no writes
python scripts/apply.py plcs/192.168.1.10.yaml

# Apply drift to live PLC
python scripts/apply.py plcs/192.168.1.10.yaml --execute

# Invoke a one-shot method
python scripts/apply.py ops/b7d3e1f9.yaml --execute

Supported subsystems (parameter IDs)

Subsystem	Key parameters	Helper
Cloud / MQTT	0-0-cloudconnections-1-*	gitops.cloud_params()
NTP	0-0-ntpclient-enabled/configuredtimeservers/updateinterval	gitops.ntp_params()
SNMP	0-0-snmp-enable/communities-1-name/location/contact	gitops.snmp_params()
Serial port	0-0-serialinterfaces-1-assignedmode/assignedowner	gitops.serial_params()
OpenVPN	0-0-openvpn-enabled/configurationdescription	gitops.openvpn_params()
HMI browser	0-0-integratedwebbrowser-startpage/startpagefavorite	gitops.browser_params()
FTP / FTPS	0-0-ftpd-enabled/ftps	direct
SSH	0-0-ssh-enabled	direct
Docker	0-0-docker-enabled	direct
CODESYS 3 webserver	0-0-codesys3-webserver-enabled	direct

Full parameter ID reference with YAML examples for every subsystem: docs/gitops/README.md

The config repo that receives these YAML fragments and runs apply.py via CI: github.com/WagoAlex/wago-plc-config

Safety gates - guarding against a rogue agent

The risk with giving an AI agent write access to industrial controllers is not just "it might delete something" - it's that an agent can go off-script (hallucination, prompt injection, a bug) and take a high-consequence action you never wanted. On a production line, a config change with side effects or a badly-timed reboot can mean equipment damage or worse. These gates are enforced in code and cannot be overridden by the agent:

Gate	What it does	Configure
Read-only PLCs	Listed controllers reject all writes and method calls, in every mode	WAGO_READONLY_HOSTS=ip,ip or a # readonly tag per line in the fleet file
Dangerous-method denylist	Reboot / restart / factory-reset / firmware / format are denied in live mode unless explicitly allowlisted	WAGO_ALLOW_METHODS=<exact-method-id> to re-enable one
Human approval for dangerous ops	In GitOps mode these become a PR flagged requires_human: CRITICAL; apply.py refuses to run until a human sets approved_by	set approved_by during PR review, or inject WAGO_APPROVED_BY from CI

The intended path for any high-consequence action is therefore a human-reviewed PR plus an audit-log entry - not an autonomous tool call. A denial is the system working as designed. Full details and a dry-run walkthrough: docs/gitops/README.md → Safety model

Step-by-step guide for reviewers (GitHub UI and CLI): github.com/WagoAlex/wago-plc-config

---

Security

API key management

The server resolves the MCP API key in priority order:

1. Docker Secret /run/secrets/mcp_api_key - recommended for production
2. Env var MCP_API_KEY
3. Persisted file ./data/mcp_api_key - auto-generated on first boot, survives container recreations
4. Auto-generate - new key if none of the above exist

[!TIP] Retrieving the key differs by source. With a Docker Secret (path 1), read secrets/mcp_api_key.txt directly on the host - no docker exec needed, so the key never crosses the container boundary or touches any container-side log path:

cat secrets/mcp_api_key.txt

With the auto-generated key (path 3/4), it only exists inside the container's /app/data volume:

docker exec wmcp cat /app/data/mcp_api_key

Prefer the Docker Secret path once you've moved past initial testing - it's both more auditable (key lifecycle lives in a file you control, not a volume the server writes to) and keeps the key out of any container-exec trail entirely.

# Regenerate (only affects the auto-generated/persisted key - has no effect
# if a Docker Secret or MCP_API_KEY env var is set, since those outrank it)
docker exec wmcp python src/mcp_keygen.py
docker restart wmcp

TLS configuration

Both TLS legs are opt-in. The server starts without TLS and logs a startup warning for each disabled leg.

WDA connections (server → PLC) - three options:

# Option A: Per-PLC cert pinning (recommended for self-signed certs)
openssl s_client -connect 192.168.1.10:443 </dev/null 2>/dev/null \
  | openssl x509 > secrets/plc_cert_192_168_1_10
# Declare the secret in docker-compose.yml and restart

# Option B: Private CA bundle
WAGO_TLS_CA=/run/secrets/wago_ca.pem

# Option C: System trust store (only if PLC certs are CA-signed)
WAGO_TLS_CA=true

MCP endpoint (client → server):

openssl req -x509 -newkey rsa:4096 \
  -keyout secrets/mcp_tls_key.pem \
  -out secrets/mcp_tls_cert.pem \
  -days 365 -nodes -subj "/CN=wago-mcp"

MCP_TLS_CERT=/run/secrets/mcp_tls_cert
MCP_TLS_KEY=/run/secrets/mcp_tls_key

Audit log

Every set_parameters and invoke_method call is appended to a tamper-evident hash-chained JSON-lines log:

Entry 1  {"ts":"…","action":"set_parameters",…,"prev":"0000…0000"}  ← genesis
Entry 2  {"ts":"…","action":"invoke_method",…,"prev":"a3f1…c2d8"}
Entry 3  {"ts":"…","action":"set_parameters",…,"prev":"7b2e…91fa"}

Each entry includes timestamp, PLC IP, parameter IDs + values, and key-<first 8 chars of API key> for per-engineer traceability.

# Tail live log
docker exec wmcp tail -f /app/audit.log

# Verify chain integrity
docker exec wmcp python src/audit_verify.py
# → [PASS] Chain intact - 42 entries verified (/app/audit.log)

Security feature summary

Feature	Status
Bearer auth on /mcp	✅ Auto-generated key; Docker Secret + env override; /health exempt
Rate limiting	✅ 60 req/60 s per source IP; 429 with Retry-After
Auth failure alerts	✅ WARNING per failure; ERROR at 10 consecutive from same IP
WDA Bearer token auth	✅ Credentials sent once; cached token refreshed on 401
Hash-chained audit log	✅ Tamper-evident JSON-lines on ./data volume
Default password warning	✅ Startup WARNING if factory default password detected
TLS - WDA connections	⚙️ Off by default; enable with WAGO_TLS_CA or per-PLC Docker Secret
TLS - MCP endpoint	⚙️ Off by default; enable with MCP_TLS_CERT + MCP_TLS_KEY
CycloneDX SBOM	✅ Published alongside every release image
Docker Secrets	✅ PLC passwords, MCP key, TLS certs all mountable as secrets
CVE scanning	✅ Weekly grype scan on SBOM; HIGH/CRITICAL fails CI

For the vulnerability disclosure policy, patch SLA, and support lifetime see SECURITY.md.

---

Tool reference

Discovery

Tool	Description
list_plcs	List all registered PLC IPs
describe_plc(plc_ip)	Capability counts + feature names + device_class, expected_parameter_count, parameter_count_ok
get_plc_audit_log(plc_ip, action, limit)	Read recent tamper-evident audit log entries; filter by PLC and/or action, newest first (max 500)

Parameters

Tool	Description
find_parameters(plc_ip, query, writeable_only, user_settings_only, limit)	Search by keyword (up to 100 results)
get_parameter(plc_ip, parameter_id)	Read one value, enum labels resolved
get_parameters_bulk(requests)	Read one param from N PLCs in parallel
set_parameters(plc_ip, parameters)	Write one or more parameters (bulk PATCH)

Methods

Tool	Description
find_methods(plc_ip, query, limit)	Search by keyword
get_method(plc_ip, method_id)	Fetch inArgs/outArgs schema
invoke_method(plc_ip, method_id, arguments, wait)	Execute sync or async
get_method_run(plc_ip, method_id, run_id)	Poll async run status

Watchlists

Tool	Description
create_watchlist(plc_ip, parameter_ids, timeout_seconds)	Register a server-side monitoring list on the PLC
read_watchlist(plc_ip, watchlist_id)	Return current values for all watched parameters (one HTTP request)
delete_watchlist(plc_ip, watchlist_id)	Release the watchlist immediately

Why watchlists exist: Every get_parameter call opens a new HTTPS connection. For repeated polling of a fixed set across a fleet, the overhead compounds: 10 parameters × 15 PLCs every 30 seconds = 150 HTTPS round-trips per cycle. Watchlists solve this - one read_watchlist returns all current values in a single request.

Example workflows

Read firmware version from all PLCs in one call:

get_parameters_bulk([
  {"plc_ip": "192.168.1.10", "parameter_id": "0-0-version-firmwareversion"},
  {"plc_ip": "192.168.1.11", "parameter_id": "0-0-version-firmwareversion"}
])

Sync NTP time on a PLC:

find_methods("192.168.1.10", "ntp")
→ ["0-0-ntpclient-updatetime"]

invoke_method("192.168.1.10", "0-0-ntpclient-updatetime", wait=True)
→ {"status": "done", "run_id": "1", "out_args": {}}

Poll operational health with a watchlist:

create_watchlist("192.168.1.10", [
  "0-0-ledstates-1-diagnosticinformation",
  "0-0-ledstates-4-diagnosticinformation",
  "0-0-ntpclient-isrunning",
  "0-0-docker-isrunning",
  "0-0-cloudconnections-1-status-connected"
], timeout_seconds=300)

read_watchlist("192.168.1.10", "1")   # call every 30 s
delete_watchlist("192.168.1.10", "1") # explicit cleanup when done

---

Configuration reference

Variable	Default	Description
WAGO_PLC_HOSTS	-	Comma-separated PLC IPs
WAGO_PLC_HOSTS_FILE	-	Path to host file (one IP per line)
DEFAULT_PLC_USERNAME	admin	Shared username
DEFAULT_PLC_PASSWORD	wago	Shared password (use Docker Secret instead)
PLC_PASSWORDS_<ip_underscores>	-	Per-PLC password override
MCP_API_KEY	-	Bearer token for /mcp; auto-generated if absent
GITOPS_MODE	0	1 = intercept writes, return YAML fragments
WAGO_GITOPS_REPO	wago-plc-config	Config repo name/path shown in the returned YAML's next_step - point this at a fork or a differently-named repo
WAGO_READONLY_HOSTS	-	Comma-separated PLC IPs that refuse set_parameters/invoke_method in every mode
WAGO_ALLOW_METHODS	-	Comma-separated exact method IDs to re-allow from the dangerous-method denylist in live mode
WAGO_TLS_CA	-	WDA TLS: false (off), true (system CA), or path
MCP_TLS_CERT	-	Path to TLS cert for MCP endpoint
MCP_TLS_KEY	-	Path to TLS private key for MCP endpoint
MCP_TLS_KEY_PASSWORD	-	Password for encrypted TLS private key (optional)
AUDIT_LOG_FILE	/app/audit.log	Audit log path inside container
SYSLOG_HOST	-	Syslog/SIEM receiver hostname; enables audit forwarding
SYSLOG_PORT	514	Syslog receiver port
SYSLOG_TCP	false	true = TCP (reliable), false = UDP
TRANSPORT	streamable-http	streamable-http or sse
HOST	0.0.0.0	Bind address
PORT	6042	Listen port
WAGO_TIMEOUT_SECONDS	45	Per-PLC HTTP timeout (CC100 needs 45+)
WAGO_PAGE_LIMIT	500	WDA pagination page size
WAGO_MAX_CONCURRENT_REGISTRATIONS	5	Parallel PLC init limit
WAGO_MAX_CONCURRENT_READS	10	Parallel PLC request limit inside get_parameters_bulk
LOG_LEVEL	INFO	DEBUG / INFO / WARNING / ERROR
LOG_FILE	/app/mcp_server.log	Debug log path inside container

---

Reference

Cross-cutting material that isn't specific to any one persona - come back to these as needed.

Frequently asked questions

Can the AI modify my control program or process I/O values?

No. The WDA REST API has no access to the CODESYS runtime, PLC variables, fieldbus I/O, or anything in your control program. Field I/O still goes through OPC-UA, Modbus TCP, or WAGO I/O-Check.

What if the AI writes a wrong value?

Every write is recorded in the tamper-evident audit log with timestamp, parameter ID, value written, and which API key made the change. For most WDA parameters a wrong value is correctable by writing the correct value again. For disruptive actions like firmware update or reboot, the assistant asks for explicit confirmation before executing.

Does the server need internet access after initial setup?

No. All traffic is local: AI client → MCP server (port 6042) → PLCs (port 443 HTTPS). No cloud calls, no telemetry. Suitable for air-gapped OT networks once the Docker image has been transferred to the host.

Our PLCs have different passwords. How do we configure that?

DEFAULT_PLC_PASSWORD=wago             # applied to all PLCs unless overridden
PLC_PASSWORDS_192_168_1_11=secret     # override for this unit (IP with underscores)

What firewall rules does IT need to open?

Direction	Source	Destination	Port	Protocol
Inbound	Engineer workstations	MCP server host	6042	TCP
Outbound	MCP server host	WAGO PLC IPs	443	TCP (HTTPS)

Can multiple engineers share one server?

Yes. Deploy one container on a host reachable from the OT network. Each engineer connects their own client to http://<server>:6042/mcp. Use a shared API key, or provision individual keys per engineer for per-person traceability in the audit log.

Which firmware version is required?

Firmware build ≥ 28 (04.xx.xx(28) or later). Check the build number in the controller's web interface under Device Information, or ask the assistant: "What firmware version is PLC 192.168.x.x running?"

---

Fetching raw parameter data (curl)

For bulk exports, debugging, or building contract-test cassettes, bypass the MCP layer and query WDA directly. WDA hard-caps at 255 entries per page - most device classes need two pages. Always include parameter-errors-as-data-attributes=true.

IP=192.168.1.10
OUT=wda-parameters-${IP}.json

{
  curl -sk -u "admin:wago" -H "Accept: application/vnd.api+json" --max-time 90 \
    -G --data-urlencode "parameter-errors-as-data-attributes=true" \
       --data-urlencode "page[limit]=255" \
       --data-urlencode "page[offset]=0" \
    "https://${IP}/wda/parameters"
  curl -sk -u "admin:wago" -H "Accept: application/vnd.api+json" --max-time 90 \
    -G --data-urlencode "parameter-errors-as-data-attributes=true" \
       --data-urlencode "page[limit]=255" \
       --data-urlencode "page[offset]=255" \
    "https://${IP}/wda/parameters"
} | jq -s '{data: (map(.data) | add)}' > "$OUT"

echo "Saved $(jq '.data | length' "$OUT") parameters to $OUT"

page[limit] and page[offset] must be passed via --data-urlencode - embedding literal brackets in the URL string is silently ignored and causes an infinite page-0 loop.

---

Requirements

• Docker 24+ with Compose v2
• WAGO PLC with WDx/WDA REST API enabled (firmware build ≥ 28)
• Network route from Docker host to PLC subnets

For Claude Desktop proxy: Python 3.11+ and fastmcp on the client machine.

---

Security & CRA compliance

This project targets compliance with the EU Cyber Resilience Act (Regulation 2024/2847).

Document	Purpose
SECURITY.md	Vulnerability reporting, patch SLA, support lifetime
docs/threat-model.md	STRIDE risk assessment
docs/cra-compliance-matrix.md	Annex I requirements → evidence mapping
docs/eu-declaration-of-conformity.md	CRA Article 28 self-declaration
docs/technical-file.md	CRA Article 31 technical file index

---

Releases

Pre-built images on Docker Hub. A CycloneDX SBOM is published alongside every release. docker compose up -d pulls the latest automatically.

---

License

Mozilla Public License 2.0
