Geo Server

An intelligent MCP (Model Context Protocol) server that drives a GeoServer instance in natural language, plus a chat + map web UI and a fully Dockerised, domain-agnostic GIS stack.

The MCP server is built with the Microsoft Agent Framework: an LLM-backed agent is given the GeoServer operations as tools and exposed as a single MCP tool via agent.as_mcp_server(). Any MCP client sends a request like "how many features in topp:states?" and the agent decides which GeoServer operations to call. The LLM backend is pluggable — host Ollama, Ollama Cloud, or Anthropic Claude.

Nothing in the code is tied to a specific dataset: the example stack ships the ISPRA landslide/hazard open data, but the catalog, the natural-language layer resolution and the thematic styles are all driven by GeoServer metadata and config, so the same stack serves any domain.

The same async core (GeoServerClient + the geo_* tool functions + the shared ingest/catalog/styling modules) is used by the agent, the web UI and the data bootstrap — there is exactly one place that talks to GeoServer.

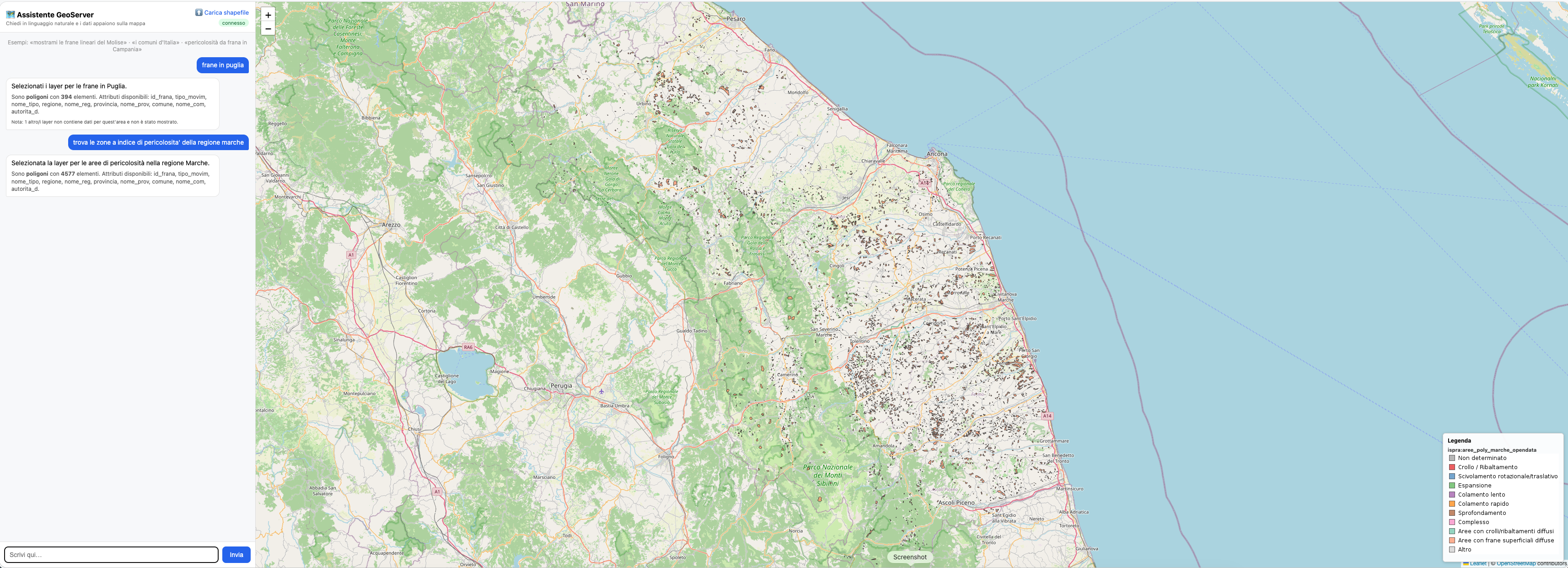

The chat (left) resolves a natural-language request to GeoServer layers and renders them on the map (right) with a thematic legend — here the landslide areas of the Marche region, classified by movement type.

---

Highlights

• 🧠 Natural-language GeoServer agent over MCP (stdio or streamable-HTTP).
• 💬 Chat-first web UI: ask in plain language, the matching layers render on a Leaflet map with a live WMS legend. Shapefile upload on a dedicated page.
• 📦 Idempotent data bootstrap: drop shapefiles in ./data, the stack loads them into PostGIS and publishes them as GeoServer layers automatically.
• 🎨 Config-driven thematic SLD styles (YAML) — no styles hardcoded in code.
• 🌍 Domain-agnostic: the layer catalog is read from the WMS capabilities; style assignment is name-pattern based. Point it at any GeoServer.
• 🖥️ Native arm64 + amd64 images (no QEMU emulation on Apple Silicon), with a per-architecture image switch in the Makefile.
• 🚀 CI/CD: a GitHub Action builds and publishes multi-arch images to GHCR.

Prerequisites

• Python 3.11+
• Docker + Docker Compose
• A host Ollama (https://ollama.com) for the local LLM — or use Ollama Cloud / Anthropic instead. There is no Ollama container; the stack talks to the host Ollama via host.docker.internal.

1. Start the stack (Docker)

ollama serve &            # start host Ollama (if not already running)
make ollama-pull          # pull the model onto the HOST Ollama (see OLLAMA_LLM_MODEL)
make build                # build the app images + pull GeoServer/PostGIS (per host arch)
make up                   # start the whole stack (checks host Ollama is reachable)

The Compose project is mcp-geo-server:

Service	Container	Endpoint / role
webui	mcp-geo-server-webui	http://localhost:8000 — chat + map UI (also proxies WMS)
mcp	mcp-geo-server-mcp	http://localhost:9000/mcp — intelligent MCP server (streamable-HTTP)
geoserver	mcp-geo-server-geoserver	http://localhost:8080/geoserver (admin / geoserver)
postgis	mcp-geo-server-postgis	localhost:5432 (gis / gis / gis)
geo-init	mcp-geo-server-init	one-shot: load ./data shapefiles + apply styles, then exits

The LLM (host Ollama / Cloud / Anthropic) is reached lazily over the network, so it never gates startup. GeoServer runs with CORS_ENABLED=true; the web UI also proxies WMS (see below) so the browser never needs to reach GeoServer directly.

Native images & the per-architecture switch

Base images are multi-arch and selected by uname -m in the Makefile, so they run native (no emulation) on both Apple Silicon and Intel:

Host arch	PostGIS	GeoServer	GeoServer data dir
arm64 / aarch64	imresamu/postgis:16-3.4	kartoza/geoserver:2.28.0	/opt/geoserver/data_dir
amd64	postgis/postgis:16-3.4	docker.osgeo.org/geoserver:2.28.0	/opt/geoserver_data

Override per run with POSTGIS_IMAGE / GEOSERVER_IMAGE / GEOSERVER_DATA_DIR. Bare docker compose (without make) defaults to the multi-arch images.

2. Web UI — chat & map

Open http://localhost:8000. The window is split: left = chat, right = a Leaflet/OpenStreetMap map with a WMS legend (bottom-right).

• Chat — type a request like "mostrami le frane lineari del Molise" or "trova le frane in Puglia". An LLM resolves it to the matching published layer(s) (POST /api/ask); the map renders them as WMS overlays, zooms to their extent, shows the legend, and the assistant replies with a textual description of the data type (geometry kind, feature count, attributes). Empty layers are flagged and not drawn.
• ⬆️ Carica shapefile (dedicated page /upload) — drag-and-drop a .zip shapefile; it is loaded into PostGIS (uploads workspace) and published (POST /api/upload).

WMS proxy

The UI talks to WMS only through the web UI (GET /wms), which forwards GetMap/GetLegendGraphic to GeoServer over the internal network and streams the bytes back. This keeps everything same-origin (no host/port juggling, no CORS), and retries on transient 429 so tiled overlays load reliably.

3. Data bootstrap & thematic styles

Bootstrap — the geo-init container loads every shapefile under ./data into PostGIS and publishes each as a GeoServer layer (default workspace ispra, datastore ispra_pg), reprojecting to EPSG:4326. It also registers every GeoTIFF (*.tif / *.tiff, e.g. a DTM/DEM) as an external coverage store — zero-copy: GeoServer reads the file in place through the shared ./data mount, the raster is never duplicated. Fully idempotent and transversal — no assumption about folder names; the layer name comes from the parent folder. It runs automatically on make up; re-run on demand:

make init          # load any new shapefiles + (re)apply styles
make init-force    # drop & reload tables that already exist
make styles        # only (re)apply the thematic styles
make init-logs     # tail the geo-init logs

Variable	Default	Meaning
GEO_INIT_ENABLE	true	Turn the bootstrap on/off
GEO_INIT_WORKSPACE / GEO_INIT_DATASTORE	ispra / ispra_pg	Target workspace / PostGIS datastore
GEO_INIT_TARGET_SRS	EPSG:4326	All layers reprojected to this SRS
GEO_INIT_SOURCE_SRS	(none)	Fallback source SRS for shapefiles without a .prj
GEO_INIT_SHAPE_ENCODING	ISO-8859-1	Shapefile attribute encoding (e.g. ISPRA .cst)
GEO_INIT_FORCE	false	Drop & reload existing tables
GEO_INIT_RASTER_ENABLE	true	Register GeoTIFFs (*.tif/*.tiff) as coverage stores
GEO_INIT_RASTER_WORKSPACE	(vector workspace)	Workspace for the raster coverages
GEO_INIT_RASTER_PREPROCESS	false	Rewrite each raster as a COG (overviews) for fast WMS — recommended for large DTMs
GEO_INIT_STYLES	true	Apply the thematic styles after publishing
GEO_STYLES_CONFIG	/data/styles.yml	Style config file (falls back to the packaged default if missing)
GEO_UPLOAD_WORKSPACE / GEO_UPLOAD_DATASTORE	uploads / uploads_pg	Target for UI shapefile uploads

Thematic styles are config-driven — no SLD is hardcoded. Styles and the layer→style assignment live in a YAML file, so the same engine serves any domain. The active config is data/styles.yml; if absent, the packaged mcp_geo_server/styles_default.yml (ISPRA landslide/hazard domain) is the fallback.

styles:                       # name -> SLD definition
  frana_tipo_poly:
    kind: polygon             # polygon | line | point | flat | outline | raster
    attribute: tipo_movim     # categorical: one rule per class
    stroke: true
    classes:
      - {value: "1", label: "Crollo / Ribaltamento", color: "#e41a1c"}
      # ...
  dtm_elevation:              # raster elevation ramp (RasterSymbolizer)
    kind: raster
    entries:
      - {quantity: 0, color: "#1a9850", label: "0 m"}
      - {quantity: 3500, color: "#ffffff", label: "3500 m"}
assign:                       # ordered rules, FIRST match wins (by layer name)
  - {name_matches: "^frane_line", style: frana_tipo_line}
  - {name_matches: "^(frane|aree|dgpv)_poly", style: frana_tipo_poly}
  - {name_contains: idraulica, style: pericolosita_idraulica}
  - {name_matches: "(dtm|dem)", style: dtm_elevation}

assign rules match a layer by name (name_contains substring or name_matches regex) — purely name-based, so the styling engine carries no hardcoded vocabulary. The patterns are domain-specific config, not code. To restyle for another domain, edit data/styles.yml and run make styles.

4. Natural-language layer resolution (domain-agnostic)

POST /api/ask maps a request to layers with no hardcoded vocabulary:

1. The catalog is built from the WMS GetCapabilities document — every published layer's real name, title, abstract and keywords.
2. A lightweight LLM "resolver" (no GeoServer tools, JSON-only output) matches the request against that metadata and returns the exact layer name(s), an optional cql_filter, and a short explanation. Hallucinated names are dropped against the catalog.
3. Filterable attributes (with their allowed values and the layers they live on) are derived from the style config and passed to the resolver, so it builds a CQL on real values and picks a layer that actually has the attribute (e.g. per_fr_ita = 'Elevata P3' for "alta pericolosità" → the hazard layer, not a landslide-inventory one).

The server does the rest — the response is ready for any map client:

• Draw order — layers come back bottom→top (rasters below vectors; broadest raster lowest) with a kind per layer, so an opaque raster never hides the vectors.
• Admin-area scoping — if the request names a comune / provincia / regione (ISTAT boundary layers), the response carries the zoom bbox and, per layer, the way to restrict it to that area: rasters get an exact-polygon clip, vectors get a CQL INTERSECTS spatial filter (a robust predicate — no geometry overlay, so no JTS non-noded intersection failure on dense layers).
• Per-layer CQL — cql_by_layer only applies a filter to layers that have the attribute, so one filter can't fail the whole render.
• Terrain enrichment — if the request names a metric (quota / slope / aspect / curvature), the selected vector layers are enriched from a DTM (geo_enrich_from_dtm) and a ready-to-show summary is returned.

Because it relies on GeoServer metadata + config, it works for any GeoServer — just publish layers with meaningful titles/keywords (and, optionally, your own data/styles.yml).

5. The intelligent MCP server (Microsoft Agent Framework)

The MCP server is an agent, not a flat list of tools. server.py builds a GeoServer agent (agent.py: a chat client + the geo_* functions as tools) and exposes it with agent.as_mcp_server(). The MCP client therefore sees one tool, geoserver-agent, that takes a natural-language task.

Run it over either transport (selected by GEO_MCP_TRANSPORT):

# stdio (for MCP clients that spawn the process, e.g. Claude Desktop)
mcp-geo-server

# streamable-HTTP (long-lived, visible container) at http://localhost:9000/mcp
GEO_MCP_TRANSPORT=http mcp-geo-server

In Docker the mcp service runs it over HTTP. Example MCP client call:

from mcp.client.streamable_http import streamablehttp_client
from mcp import ClientSession

async with streamablehttp_client("http://localhost:9000/mcp") as (r, w, _):
    async with ClientSession(r, w) as s:
        await s.initialize()
        res = await s.call_tool("geoserver-agent",
                                {"task": "How many features are in topp:states?"})
        print(res.content[0].text)

Choosing the LLM backend (GEO_LLM_PROVIDER)

Provider	Value	Needs	Notes
Host Ollama	ollama	host Ollama running	Default. No API key; make ollama-pull on the host. Containers reach it via host.docker.internal.
Ollama Cloud	ollama-cloud	OLLAMA_API_KEY	Hosted models; set OLLAMA_LLM_MODEL to a cloud model. make up-ollama-cloud.
Anthropic Claude	anthropic	ANTHROPIC_API_KEY	Uses ANTHROPIC_MODEL. make up-claude.

The model is read from OLLAMA_LLM_MODEL (falls back to OLLAMA_MODEL). Put your per-machine config in .env.local (loaded by the Makefile and gitignored), e.g. OLLAMA_LLM_MODEL=llama3.2:3b.

6. Install (local dev, no Docker)

python -m venv .venv && source .venv/bin/activate
pip install -e ".[dev,webui]"
cp .env.example .env.local   # then edit
uvicorn webui.app:app --reload --port 8000   # run the UI locally

7. Configuration (environment variables)

Variable	Default	Meaning
GEOSERVER_URL	— (required)	Server-side GeoServer base URL (e.g. http://geoserver:8080/geoserver)
GEOSERVER_PUBLIC_URL	= GEOSERVER_URL	Browser-facing URL (used by generated standalone maps)
GEOSERVER_USER / GEOSERVER_PASSWORD	— (required)	REST credentials
GEOSERVER_DEFAULT_WORKSPACE	(none)	Workspace used when a tool omits one
GEOSERVER_DEFAULT_SRS	EPSG:4326	SRS used when publishing without one
GEOSERVER_TIMEOUT / GEOSERVER_RETRIES / GEOSERVER_RETRY_BACKOFF	30 / 2 / 0.5	HTTP timeout, retry attempts, linear backoff
GEOSERVER_VERIFY_TLS	true	Verify TLS certificates
GEO_MAP_OUTPUT_DIR	./maps	Where generated maps / downloaded PNGs are saved
WEBUI_PORT	8000	Port for the web UI
GEO_LLM_PROVIDER	ollama	ollama, ollama-cloud or anthropic
OLLAMA_HOST	http://localhost:11434	Ollama endpoint (containers use host.docker.internal)
OLLAMA_LLM_MODEL	qwen2.5	Ollama model (tool-calling capable / cloud model id)
OLLAMA_CLOUD_HOST / OLLAMA_API_KEY	https://ollama.com / (none)	Ollama Cloud endpoint / key
ANTHROPIC_API_KEY / ANTHROPIC_MODEL	(none) / claude-sonnet-4-6	Anthropic key / model
GEO_MCP_TRANSPORT / GEO_MCP_HOST / GEO_MCP_PORT	stdio / 0.0.0.0 / 9000	MCP transport + bind
GEO_ALLOW_DESTRUCTIVE	false	Allow destructive tools (geo_delete_*, geo_wfs_transaction)

Data-bootstrap (GEO_INIT_*, GEO_STYLES_CONFIG, GEO_UPLOAD_*) and image (POSTGIS_IMAGE, GEOSERVER_IMAGE, GEOSERVER_DATA_DIR) knobs are documented in §3 and §1. Secrets are never hardcoded — everything is read from the environment.

8. Tests

pytest                                            # unit + behavioural (no GeoServer)
GEO_RUN_INTEGRATION=1 pytest tests/integration    # live round-trip vs real GeoServer

• test_formatting, test_styles_helpers, test_ogc_helpers, test_map_template — pure helpers / template rendering.
• test_tools_behaviour — every tool driven with a FakeClient, asserting on request bodies / params / WFS-T XML (no network).
• test_catalog — WMS-capabilities parsing + LLM-selection validation.
• test_styling — config-driven SLD generation + name-based style assignment.
• tests/integration/test_live.py — skipped unless GEO_RUN_INTEGRATION=1.
• tests/evals/geo_eval.xml — read-only eval questions against sample data.

9. CI/CD — published images (GHCR)

.github/workflows/docker-publish.yml runs on push to main and on v* tags: it runs the test suite, then builds and pushes multi-arch (amd64 + arm64) images to the GitHub Container Registry:

Image	Stage	Contents
ghcr.io/<owner>/mcp-geo-server:latest	base	app image (web UI + MCP agent)
ghcr.io/<owner>/mcp-geo-server:bootstrap	bootstrap	adds GDAL (ogr2ogr) + psql for data init / upload

Agent tools (33 geo_* functions)

These are the tools the agent calls internally (they are not exposed individually over MCP — the agent is). make tools lists them.

Tool	Kind	Description
geo_get_status	read	Version + connectivity (/rest/about/version.json)
geo_list_workspaces	read	List workspaces
geo_get_workspace	read	Get one workspace
geo_create_workspace	write	Create workspace (optionally default)
geo_delete_workspace	destructive	Delete workspace (recurse)
geo_list_datastores	read	List datastores in a workspace
geo_get_datastore	read	Get one datastore
geo_create_datastore_postgis	write	Create a PostGIS datastore
geo_delete_datastore	destructive	Delete datastore (recurse)
geo_list_coveragestores	read	List coverage (raster) stores
geo_get_coverage	read	Get a published coverage (bbox / SRS)
geo_create_coveragestore_geotiff	write	Register a GeoTIFF as an external coverage store + publish it
geo_delete_coveragestore	destructive	Delete coverage store (recurse; leaves the file on disk)
geo_enrich_from_dtm	read	Terrain metrics (quota/slope/aspect/curvature) for a vector layer, sampled from a DTM coverage
geo_list_featuretypes	read	List feature types (or available tables)
geo_publish_featuretype	write	Publish a table as a layer (recalculates bbox)
geo_list_layers	read	List layers
geo_get_layer	read	Get one layer
geo_get_layer_bbox	read	Layer bounding boxes + SRS
geo_update_layer	idempotent	Set default style / enabled flag
geo_delete_layer	destructive	Delete layer (+ feature type cleanup)
geo_list_styles	read	List styles
geo_get_style	read	Get style SLD
geo_create_style	write	Create style from SLD string/file
geo_update_style	idempotent	Replace style SLD
geo_assign_style_to_layer	idempotent	Assign style to layer (default/extra)
geo_delete_style	destructive	Delete style (purge)
geo_wms_get_capabilities	read	WMS GetCapabilities
geo_wms_get_map	read	Build WMS GetMap URL (optionally download PNG)
geo_wfs_get_capabilities	read	WFS GetCapabilities
geo_wfs_get_feature	read	WFS GetFeature → GeoJSON (bbox or CQL)
geo_wfs_transaction	write	WFS-T delete / update / raw
geo_build_web_map	read	Generate a Leaflet HTML map (OSM + WMS overlays)

Destructive-operation safety

A Microsoft Agent Framework function middleware (middleware.py, DestructiveGuard) intercepts destructive tools (geo_delete_* and geo_wfs_transaction). Unless GEO_ALLOW_DESTRUCTIVE=true, the call is short-circuited and the agent reports a refusal instead of mutating data — a deterministic guard that works even though the MCP server is non-interactive.

Resilience

• Retry with linear backoff on connect errors, timeouts, and HTTP 502/503/504 (GEOSERVER_RETRIES, GEOSERVER_RETRY_BACKOFF); the WMS proxy also retries on 429.
• Actionable errors: 401/403/404/405/409/500 translated into messages with a suggested fix.
• OGC exceptions: ServiceExceptionReport (HTTP 200) detected and raised.
• Logging on the mcp_geo_server logger (GEO_LOG_LEVEL=DEBUG).

Project layout

src/mcp_geo_server/
  config.py        settings from env (incl. public URL, providers)
  client.py        async GeoServer HTTP client (auth, retry, OGC helpers)
  agent.py         Microsoft Agent Framework agent (pluggable LLM)
  server.py        MCP server (stdio / streamable-HTTP)
  tools/           the geo_* tool functions
  ingest.py        shared shapefile -> PostGIS -> publish core
  bootstrap.py     batch loader over ./data (compose service geo-init)
  catalog.py       domain-agnostic catalog (WMS caps) + NL-selection validation
  styling.py       config-driven SLD engine + name-based assignment
  styles_default.yml  default (ISPRA) style config
webui/
  app.py           FastAPI backend (chat /api/ask, /api/upload, /wms proxy, …)
  static/          chat+map UI (index.html) + upload page (upload.html)
data/              your shapefiles + optional styles.yml (gitignored)
tests/             unit, behavioural, catalog, styling, integration, evals
Dockerfile         multi-stage: base (app) + bootstrap (adds GDAL/psql)
docker-compose.yml postgis + geoserver + geo-init + webui + mcp
.github/workflows/ docker-publish.yml — build & push multi-arch images to GHCR
